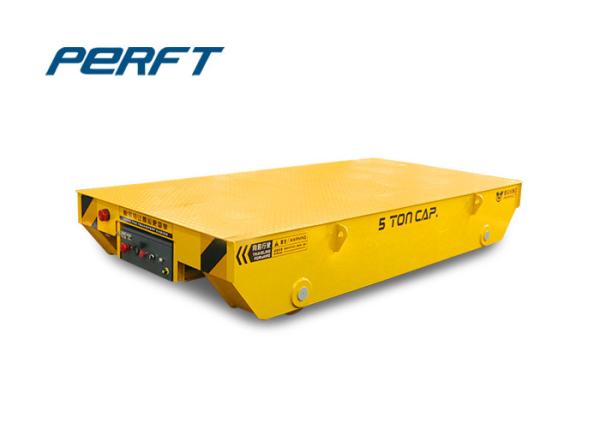

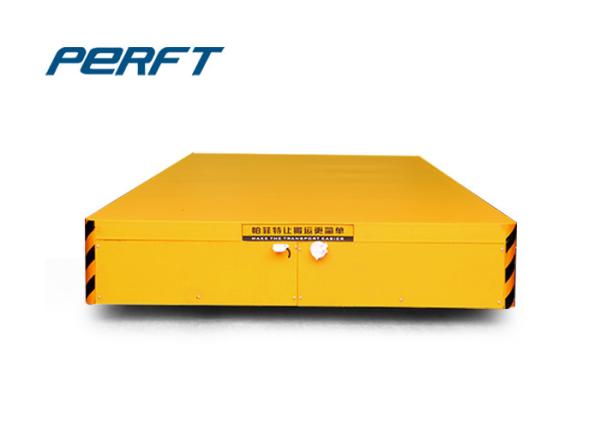

Customization Factory Use Mold And Die Electric Transfer Cart 1-100t
Customization Factory Use Mold And Die Electric Transfer Cart 1-100t
Customization Factory Use Mold And Die Electric Transfer Cart 1-100t
Customization Factory Use Mold And Die Electric Transfer Cart 1-100t
Customization Factory Use Mold And Die Electric Transfer Cart 1-100t
Customization Factory Use Mold And Die Electric Transfer Cart 1-100t
Customization Factory Use Mold And Die Electric Transfer Cart 1-100t
Customization Factory Use Mold And Die Electric Transfer Cart 1-100t
Specifications
Brand Name :
Die and mold Transfer Cart
Model Number :
Die and mold Transfer Cart
Certification :
CE ISO SGS
Place of Origin :
Henan china
MOQ :
1
Price :
USD3000-6500/SET
Payment Terms :
L/C, T/T
Supply Ability :
30sets/week
Delivery Time :
20 work days after received balance payment
Packaging Details :
Trap and wooden case
Type :
Die and mold Transfer Cart
Material :
Carbon Steel
Running speed(m/min) :
20
Table size :
Customized
Motor power(Kw) :
3.5-15
Product Name :
100 t motorized industrial standards mold and Die Transfer Cart for mold and die handling
Ground Clearance(mm) :
50
Wheel Diameter(mm) :
270-600
Description

1-100T Customization Factory use Mold And Die Electric Transfer Cart

Product Descraptions

The Cart for mold and die handling usually,accumulator,mains powered and generator are choose as power source.The current is supplied and generator are choose as power source.Positioning fixture, lift platform and other assistive device are customized to meet different demands on various occasions. The PLC system of the 100 t motorized industrial standards mold and Die Transfer Cart for mold and die handling is also alternative if need.

Customization Factory Use Mold And Die Electric Transfer Cart 1-100t

Detailed Image

Customization Factory Use Mold And Die Electric Transfer Cart 1-100t

Technical parameter table

Model BXC-2t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity(Ah) 180 180 330 440 600
Battery Voltage(V) 24 48 48 72 72
Running Time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for One Charge(Km) 6.5 4.8 4 3.8 3.2
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100

Application

Stable and flexible during the turning in small space, we have optimized the steering mechanism, wheel press and frame rigidity to make it available for linkage of several trolleys. The Cart has been highly approved by our customers.

Customization Factory Use Mold And Die Electric Transfer Cart 1-100t

Production Process of Electric Transfer Cart

CNC Cutting
The steel plate is transported from warehouse to CNC cutting workshop for cutting.
Preliminary Assembling
Workers put the cut steel plate together according to the design drawing.
Welding
Weld the steel plate with automatic welding machine after the preliminary assembling.
Post weld treatmen
Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress.
Spray Primer
Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint.
Assembling
Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.
Paint finish
Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish.
Debugging
Debugging the cart after painting the finish with electric control system, after the debugging, the cart will be tested without load and then with load. After the inspection, the cart will be transported to storage area.

Customization Factory Use Mold And Die Electric Transfer Cart 1-100t
