20 Ton Battery Power Stone Mine Remote Control Ladle Transfer Car
20 Ton Battery Power Stone Mine Remote Control Ladle Transfer Car
20 Ton Battery Power Stone Mine Remote Control Ladle Transfer Car
20 Ton Battery Power Stone Mine Remote Control Ladle Transfer Car
20 Ton Battery Power Stone Mine Remote Control Ladle Transfer Car
20 Ton Battery Power Stone Mine Remote Control Ladle Transfer Car
20 Ton Battery Power Stone Mine Remote Control Ladle Transfer Car
20 Ton Battery Power Stone Mine Remote Control Ladle Transfer Car
20 Ton Battery Power Stone Mine Remote Control Ladle Transfer Car
20 Ton Battery Power Stone Mine Remote Control Ladle Transfer Car
Specifications
Brand Name :
Rail Ladle Transfer Car
Model Number :
Rail Ladle Transfer Car
Certification :
CE ISO SGS
Place of Origin :
Henan China
MOQ :
1
Price :
Usd800-4000/set
Payment Terms :
L/C, T/T
Supply Ability :
30sets/week
Delivery Time :
20 work days after received balance payment
Packaging Details :
Trap and wooden case
Product Name :
20 ton ladle transfer cart for metal and slag indusrial material handling
Type :
Rail Ladle Transfer Car
Ground Clearance(mm) :
50-75
Motor Power :
1-15
Material :
Carbon Steel
Description

20 Ton Ladle Battery power tansfer cart for Stone mine/Remont control cart

Dsecraptions

The series cart usually,accumulator,mains powered and generator are choose as power source.The current is supplied and generator are choose as power source.The Car is supplied to pulling motor through electric control system,which makes the Electric cart start,stop,move background,turn around and realize other functions. Also, we will provide intelligent automatic rapid charger with the car. Positioning fixture, lift platform and other assistive device are optional to meet different demands on various occasions. The PLC is also alternative if The Cart is necessary.

20 Ton Battery Power Stone Mine Remote Control Ladle Transfer Car


Why choose 20 Ton Ladle Battery power tansfer cart for Stone mine/Remont control cart
1. It needn’t run via the rails, which gets rid of relying for the rails.
2. It can not lead to impairment for the cement ground, and can run freely, go forward, back forward, turning.etc.
3. It can it run freely without limited distance.
4.It will be provided getting for your inquiry.
20 Ton Battery Power Stone Mine Remote Control Ladle Transfer Car

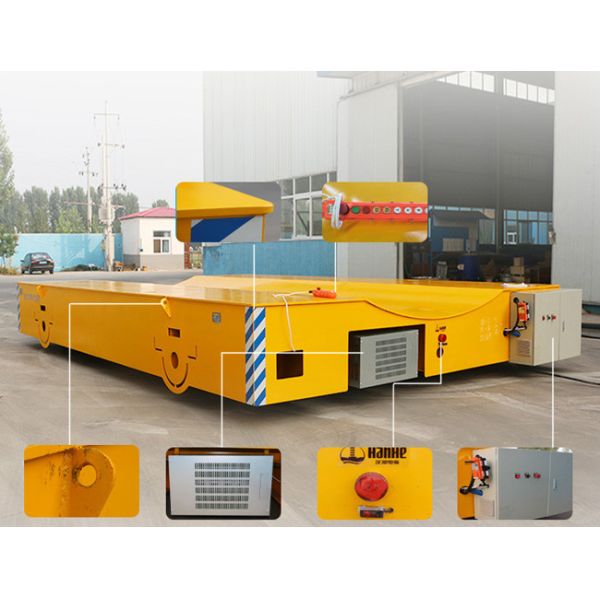

Detailed Image

20 Ton Battery Power Stone Mine Remote Control Ladle Transfer Car

Technical parameter table

Rated Load 5 10 15 20 30 40 50
Ground Clearance(mm) 50 50 50 50 50 50 50
Wheel Base(mm) 1500 1500 1500 1700 1700 1800 1800
Turnning Radius(mm) 2501 3101 3401 3901 4301 4801 5201
Axles Distance(mm) 2500 3100 3400 3900 4300 4800 5200
Motor Power(Kw) 3.5 5 6 7 10 12 15
Running Speed(m/min) 0-15 0-15 0-15 0-15 0-15 0-12 0-12
Cart Weight(t) 4.3 5.3 6.6 7.9 8.8 10 10.5
Impacted Rated Load(t) 7.5 15 22.5 30 45 60 75


Application of the 20 Ton Ladle Battery power tansfer cart for Stone mine/Remont control cart

Stable and flexible during the turning in small space, we have optimized the steering mechanism, wheel press and frame rigidity to make it available for linkage of several trolleys. The 20 ton ladle transfer cart for metal and slag indusrial material handling has been highly approved by our customers.

20 Ton Battery Power Stone Mine Remote Control Ladle Transfer Car
