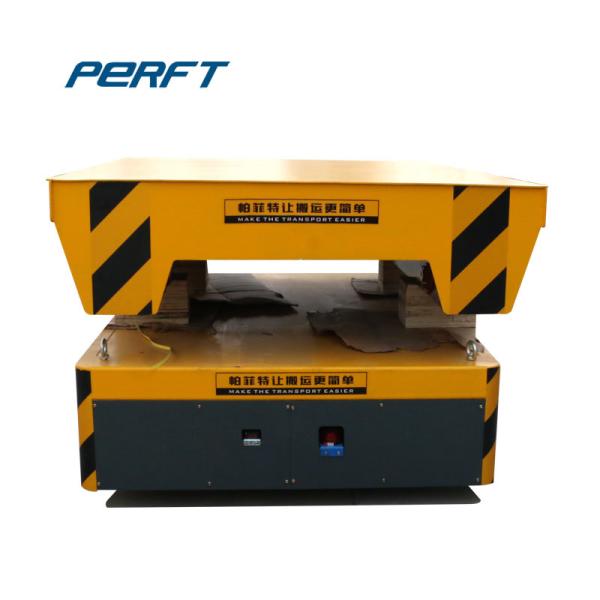

Platform Electric Material Coil Transfer Cart Battery Operated 20t
Platform Electric Material Coil Transfer Cart Battery Operated 20t
Platform Electric Material Coil Transfer Cart Battery Operated 20t
Platform Electric Material Coil Transfer Cart Battery Operated 20t
Platform Electric Material Coil Transfer Cart Battery Operated 20t
Platform Electric Material Coil Transfer Cart Battery Operated 20t
Platform Electric Material Coil Transfer Cart Battery Operated 20t
Platform Electric Material Coil Transfer Cart Battery Operated 20t
Specifications
Brand Name :
battery operated platform transport coil car
Model Number :
battery operated platform transport coil car
Certification :
CE ISO SGS
Place of Origin :
China(mainland)
MOQ :
1 set
Price :
USD 2100~6500 set
Supply Ability :
100 sets month
Delivery Time :
20 work days after received balance payment
Packaging Details :
trap and wooden case
Product Name :
battery operated platform transport coil car
Powered source :
battery
Capacity :
1-300T
Warranty :
12 Months
Color :
Customized
Application :
Industrial Filed
Feature :
Easy Operation
Description

20t Battery Operated Platform Electric Material Transporter cart

Introduction of Electric Material Transporter Dolly


With high operation security and good flexibility, our electric material transporter dolly can be applied to high-temperature, high use frequency, and medium-distance or long-distance transportation applications.
This series of electric material transporter dolly uses rails instead of cable wires to offer power. It is safer and more reliable to use. In addition, It can transport on the curved track, circular track, or diverting track. Its application brings great convenience to transportation layout arrangement in factories

Platform Electric Material Coil Transfer Cart Battery Operated 20t

ailway Conveyer Railway Conveyer Railway Conveyer

Detailed Image

Platform Electric Material Coil Transfer Cart Battery Operated 20t

Technical Parameters
Model BXC-2t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running Time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for One Charge(Km) 6.5 4.8 4 3.8 3.2
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100

Optional of Electric Material Transporter Dolly

Weigh scales
Decking material and other accessories
Paint color can be customized as your requirements
Radio control or pendant control
Battery operated or electric cable reel
Components brands of the cart
