Rail Remote Control Material Transfer Cart For Cable Reel Operated Steel Pipe Plant
Rail Remote Control Material Transfer Cart For Cable Reel Operated Steel Pipe Plant
Rail Remote Control Material Transfer Cart For Cable Reel Operated Steel Pipe Plant
Rail Remote Control Material Transfer Cart For Cable Reel Operated Steel Pipe Plant
Rail Remote Control Material Transfer Cart For Cable Reel Operated Steel Pipe Plant
Rail Remote Control Material Transfer Cart For Cable Reel Operated Steel Pipe Plant
Rail Remote Control Material Transfer Cart For Cable Reel Operated Steel Pipe Plant
Rail Remote Control Material Transfer Cart For Cable Reel Operated Steel Pipe Plant
Specifications
Brand Name :
rail transfer cart transport pallet
Model Number :
rail transfer cart transport pallet
Certification :
CE ISO SGS
Place of Origin :
China(mainland)
MOQ :
1 set
Price :
USD 2000~7800 SET
Supply Ability :
100 SETS MONTH
Delivery Time :
20 work days after received balance payment
Packaging Details :
TRAP AND WOODEN CASE
Product Name :
rail transfer cart transport pallet
Table Size :
Customized
Height :
Customized
Control Method :
Remote Control/Pendant
Running speed :
0-20m/min
after-sales Service Provided :
Engineers available to service machinery
Description
Cable Reel Operated steel pipe plant material rail transfer cart
Introduction of Material cart
Henan Perfect Handling Equipment Co., Ltd. is specializing in the design and manufacture of heavy material transport system to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Battery Operated Transport Trolley, Coil and pipes Carrier Equipment, Ladle Handling Equipment, Hydraulic Lift Table, Turntables and many other specialty items.Our line of Industrial Transfer Carts are designed and manufactured to accommodate the needs of a wide range of industries including Steel, Aluminum, Automotive, Heavy Manufacturing and others. These material handling equipment are designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.
Rail Remote Control Material Transfer Cart For Cable Reel Operated Steel Pipe Plant

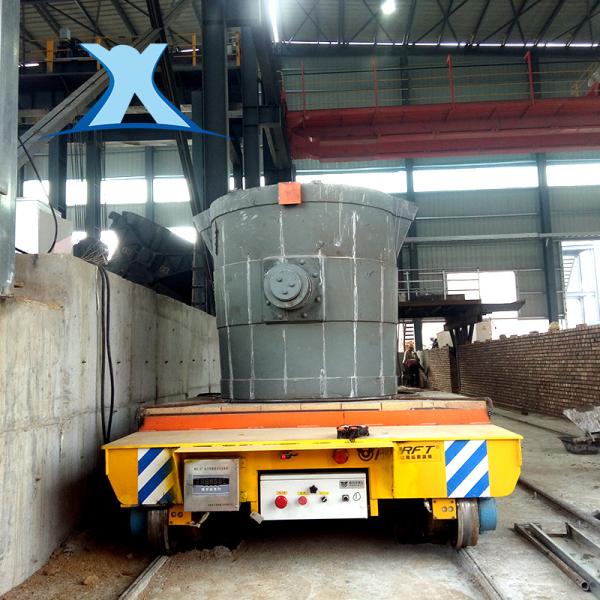

Detailed Image
Rail Remote Control Material Transfer Cart For Cable Reel Operated Steel Pipe Plant
Technical Parameters
Model BDGZ-2t BDGZ-20t BDGZ-50t BDGZ-100t BDGZ-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 850 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 0.8 2.5 5.5 11 15
Transformer Power(KVA) 3 6.8 10 30 30
Transformer Quanity 1 1 1 1 1
Running Distance(m) 70 70 50 50 50
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100
Application
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.
Rail Remote Control Material Transfer Cart For Cable Reel Operated Steel Pipe Plant
About our Power team
Henan Perfect Handling Equipment Co., Ltd is a professional & international manufacturing factory specialized in researching, developing, producing and selling material handling equipment.Based on modern plant and advanced production equipment, we can produce all kinds of handling equipment from 1-1300 tons, our main products including BDG conductor rail transfer cart, BJT cable drum transfer cart, BHX safety sliding line transfer cart, BXC battery type transfer cart, BTL towed cable type transfer cart, BP non-power type transfer cart, BQY train towed type transfer cart, BWP trackless type and special type transfer cart, such as turning, trackless,ladle, hydraulic lifting, ferry, painting room, blasting booth etc.
Rail Remote Control Material Transfer Cart For Cable Reel Operated Steel Pipe Plant
