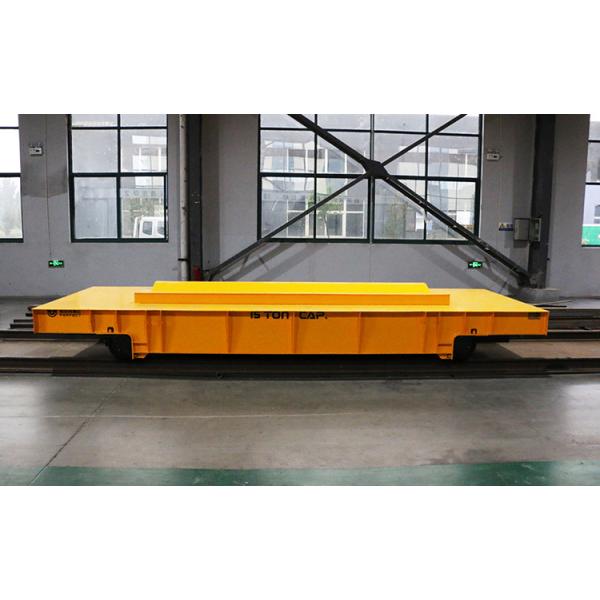

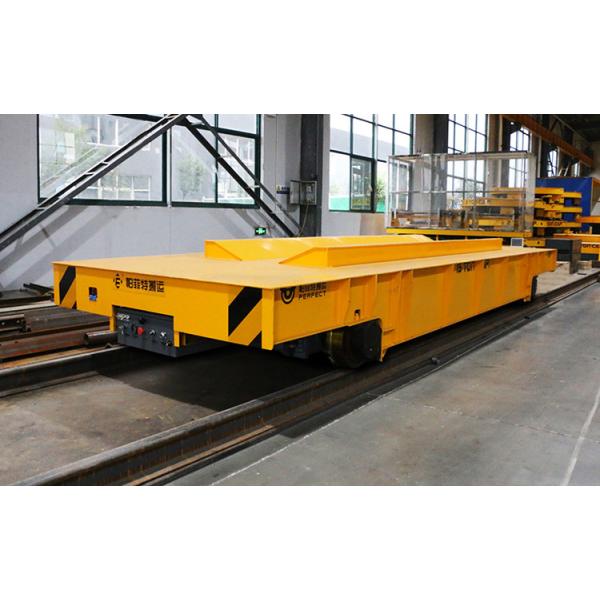

20t Battery Transfer Cart Heavy Loads Transportation Material
20t Battery Transfer Cart Heavy Loads Transportation Material
20t Battery Transfer Cart Heavy Loads Transportation Material
20t Battery Transfer Cart Heavy Loads Transportation Material
20t Battery Transfer Cart Heavy Loads Transportation Material
20t Battery Transfer Cart Heavy Loads Transportation Material
20t Battery Transfer Cart Heavy Loads Transportation Material
20t Battery Transfer Cart Heavy Loads Transportation Material
Specifications
Brand Name :
20T Heavy Loads Transportation Material Bogie Applied in Steel Cartart
Model Number :
10T battery powered rail transfer flat cart
Certification :
CE ISO SGS
Place of Origin :
China(mainland）
MOQ :
1 set
Price :
USD 2000~8000 set
Supply Ability :
100 sets month
Delivery Time :
20 work days after received balance payment
Packaging Details :
trap and wooden case
Product Name :
10T battery powered rail transfer flat cart
Application :
Transfer Materials
Item :
Cart
Color :
Customized
Material :
Q235
Capacity :
1-200T
Description

20T Heavy Loads Transportation Material Bogie Applied in Steel Cart

Introduction
Our line of Material Handling Bogie are designed to accommodate the needs of a wide range of industries such as steel, aluminum, automotive, stamping, heavy manufacturing and several others. These units are designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.
20t Battery Transfer Cart Heavy Loads Transportation Material

Technical Parameter
Model BXC-2t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for Once Charge(KM) 6.5 4.8 4 3.8 3.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100

Customization

PERFECT is specialized in designing and manufacturing of heavy duty Material Handling Bogie :

Transfer Cart: Rail transfer cart, Trackless transfer car, Battery operated Material Handling Bogie , Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart etc.
Industrial Trailer: Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer trailer etc.
Cargo Transportation: Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie
Speical Handling Equipment: Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipmet, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicle etc.

20t Battery Transfer Cart Heavy Loads Transportation Material
Q/A
What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
