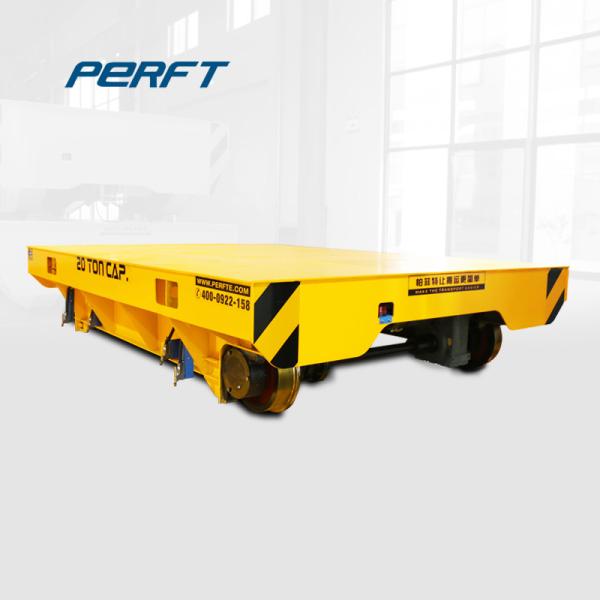

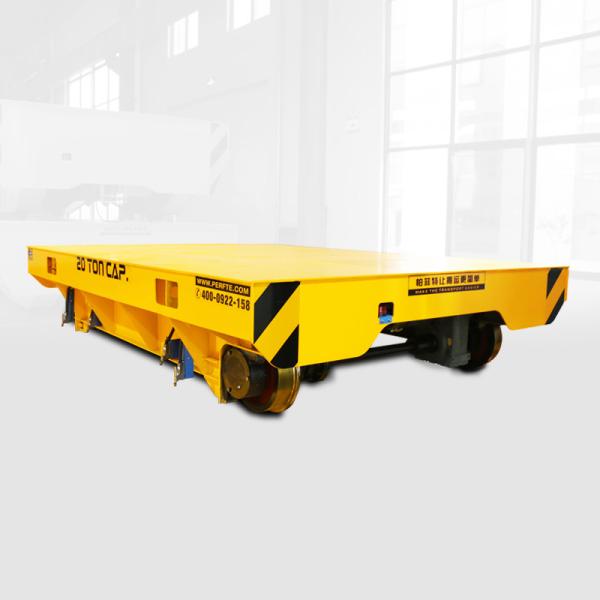

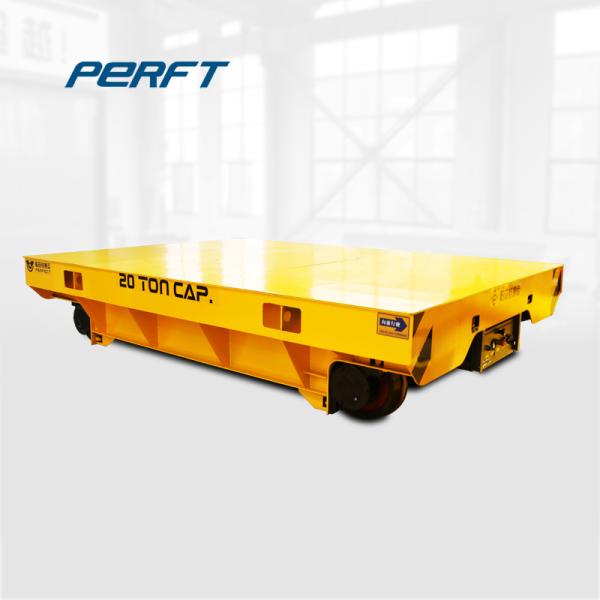

50t Customization Color Automated Guided Vehicles Pandent Controller
50t Customization Color Automated Guided Vehicles Pandent Controller
50t Customization Color Automated Guided Vehicles Pandent Controller
50t Customization Color Automated Guided Vehicles Pandent Controller
50t Customization Color Automated Guided Vehicles Pandent Controller
50t Customization Color Automated Guided Vehicles Pandent Controller
50t Customization Color Automated Guided Vehicles Pandent Controller
50t Customization Color Automated Guided Vehicles Pandent Controller
Specifications
Brand Name :
PERFECT
Model Number :
BTL
Certification :
CE, SGS, ISO
Place of Origin :
Xinxiang, China
MOQ :
1 Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
75 Sets per month
Delivery Time :
45 Days
Packaging Details :
The whole cart is package with tarp, and parts will be packed by wood case
Load Capacity :
Customized/1-300 tons
Operation Mode :
Pandent and Remote Controller or PLC
Application :
Factory, Warehouse, Port, Construction, Steel Structure
Rail Gauge :
1435mm (Customized)
Color :
Yellow/Customized
Working Time :
No Limited
Wheel Type :
Cast steel wheel
Safrty Device :
Buffer, Alarm light, Emergency Stop Buttons
Special Function :
Anti-Explosion, Heat-Resistant, Lifting, Dumpling
Additional Unit :
Optional (Hydraulic Lifting Table/ Roller Guard Bar)
Description

Who sales price Customization color automated material handling equipment Rail Electric Carriages

Introduction

The high frequency use timber mill electric carriage​ is a kind of automated material handling equipment powered by cable reel which is mounted on the carriage. Of course, our product includers different power, the proper solution will be recommended to you after learning your requirements. Nowadays, this series of high frequency use timber mill electric carriage​ has been widely applied in the industry transportation field all over the world. And our electric carriage​ is available in a number of configurations specifically designed to suit the needs of our customers.

50t Customization Color Automated Guided Vehicles Pandent Controller

Components & Characteristics


The advantages of transfer cart
These are the advantages included in using heavy duty transporters:
----Low noise:It causes low noise level.
----Maximum safety:Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
----Easy for operation: These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.

50t Customization Color Automated Guided Vehicles Pandent Controller

Working Principle of High Frequency Use Timber Mill Electric Carriage​

The high frequency use timber mill electric carriage​ is the cable reels powered and it gets power AC 380v through the device of cable reel , and the motor is controlled by the power through AC control system that make the timber mill electric carriage​ to start, stop, go forward , backward , adjust the speed and so on.

​50t Customization Color Automated Guided Vehicles Pandent Controller

Parameter Table

Model BJT-2t BJT-20t BJT-50t BJT-100t BJT-150t
Rated Load(t) 2 20 50 100 150
Table Size (mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Height(H) 500 600 700 1000 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 200 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 0.8 2.5 5.5 11 15
Running Distance(m) 25 30 50 50 50
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.5 5.6 7.8 14.1 26.2
Recommended Rail Model P15 P24 P43 QU100 QU100

Company

We are a collection of research and development, design, manufacturing as one of professional international company of handling equipment.
Our company specialized 16 years, getting 8 national patents, so we have the best quality and the lower price.

50t Customization Color Automated Guided Vehicles Pandent Controller
