Specifications
Brand Name :
Fluke
Model Number :
179C
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD$360/PC
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500
Delivery Time :
5-8 work days
Packaging Details :
Carton
Measuring Current Range :
AC/DC 0-10A
Measuring Voltage Range :
AC/DC 0-1000V
Measuring Resistance Range :
0-50MΩ
Measuring Capacitance Range :
0-10,000 vF
Frequency :
100 kHz
Operating temperature :
-10°C to +50°C
Storage temperature :
-30°C to +60°C
Humidity (without condensation) :
0% – 90% (0°C – 35°C) 0% – 70% (35°C – 50°C)
Agency approvals :
UL, CSA, TÜV listed and VDE Pending
Size :
43 x 90 x 185 mm
Weight :
420 g
Battery life :
Alkaline ~200 hours typical, without backlight
Description

Fluke 175C/177C/179C Digital Clamp Multimeter 6000 Count Fluke True Rms Digital Multimeter

Key features

  • 1000V AC/DC; 10A AC/DC (with test leads and current jacks); resistance to 50 MΩ; capacitance to 10,000 μF, frequency to 100 kHz; temperature from -40 ℃ to 400 ℃
  • Robust, fast and accurate with manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-Average recording
  • Backlit digital display, analog bar graph, and built-in temperature measurements with included thermocouple.

Product overview: Fluke 179 True-RMS Digital Multimeter

The Fluke 179 True-rms Digital Multimeter is the industry-standard troubleshooting tool for electrical and electronic systems. This incredibly versatile multimeter makes a perfect front-line troubleshooting tool with an input protection rating of CAT III 1000 V, CAT IV 600 V. The built-in temperature measurement with the included thermocouple, analog bar graph and backlit digital display make it easier to take the measurements you need.

A full set of basic and advanced troubleshooting capabilities including:

  • Manual and automatic ranging
  • Display Hold and Auto Hold
  • Min/Max-Average recording
  • Voltage measurements to 1000 V AC or DC
  • Current measurements to 10 A AC/DC
  • Resistance to 50 MΩ; capacitance to 10,000 μF, frequency to 100 kHz; temperature from -40 ℃ to 400 ℃

All of these features come paired with a lifetime warranty.

Specifications: Fluke 179 True-RMS Digital Multimeter

Specifications
Voltage DC Accuracy1 ±(0.09% + 2)
Max. resolution 0.1 mV
Maximum 1000 V
Voltage AC Accuracy1 ±(1.0% + 3)
Max. resolution 0.1 mV
Maximum 1000 V
Current DC Accuracy1 ±(1.0% + 3)
Max. resolution 0.01 mA
Maximum 10 A
Current AC Accuracy1 ±(1.5% + 3)
Max. resolution 0.01 mA
Maximum 10 A
Resistance Accuracy1 ±(0.9% + 1)
Max. resolution 0.1 Ω
Maximum 50 MΩ
Capacitance Accuracy1 ±(1.2% + 2)
Max. resolution 1 nF
Maximum 10,000 µF
Frequency Accuracy1 ±(0.1% + 1)
Max. resolution 0.01 Hz
Maximum 100 kHz
Temperature Accuracy1 ±(1.0% + 10)
Max. resolution 0.1°C
Range -40°C / 400°C
1. Accuracies are best accuracies for each function
Environmental Specifications
Operating temperature -10°C to +50°C
Storage temperature -30°C to +60°C
Humidity (without condensation) 0% – 90% (0°C – 35°C)
0% – 70% (35°C – 50°C)
Safety Specifications
Overvoltage category EN 61010–1 to 1000 V CAT III
EN 61010–1 to 600 V CAT IV
Agency approvals UL, CSA, TÜV listed and VDE Pending
Mechanical and General Specifications

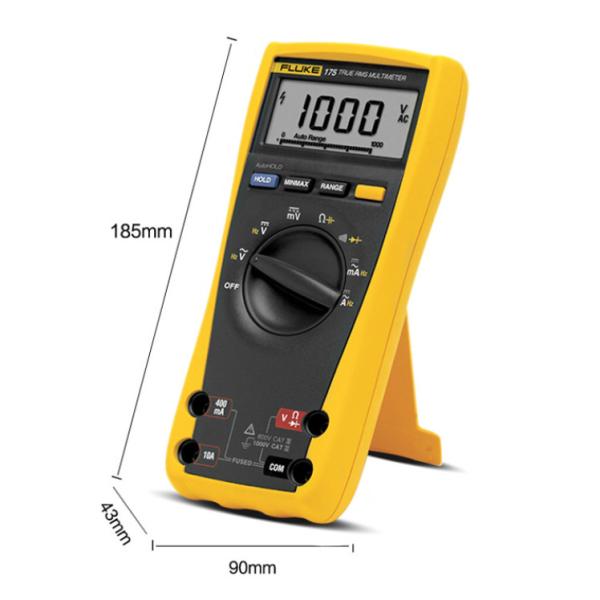

Size 43 x 90 x 185 mm
Weight 420 g
Warranty Lifetime
Battery life Alkaline ~200 hours typical, without backlight
