Specifications
Brand Name :
Dwyer
Model Number :
DM-2000
Place of Origin :
USA
MOQ :
1/pc
Price :
USD/120
Payment Terms :
L/C, T/T
Supply Ability :
1000/
Delivery Time :
2-3Day
Packaging Details :
New Original
Accuracy :
±1%
Warranty :
1 year
Temperature Effect :
20 to 120°F (-6.67 to 48.9°C)
Certification :
CCC,ISO
Output :
4 to 20 mA
Electrical connection :
Screw-type terminal bloc
Description
item
value
Warranty
1 year
Customized support
OEM, ODM
Place of Origin
America
Brand Name
Dwyer
Model Number
DM-2000
Output
4 to 20 mA
Temperature Effect
20 to 120°F (-6.67 to 48.9°C)
Electrical connection
Screw-type terminal bloc
Certification
CCC,ISO

【 Product Introduction 】

Dwyer series DM-2000 differential pressure transmitters can detect the pressure of air and compatible gases and output 4-20 mA letters

Number. The DM-2000 housing is designed specifically for the same mounting hole size as the standard Magnehelic® meter specification. There are many kinds

The range is optional and is closely calibrated before leaving the factory.

The casing with FRP laminated film has its own pressure interface, making the connection quick and easy. Use a digital key to calibrate the zero point

And adjustable range, instead of the past potentiometer calibration method. 3.5-bit LCD LCD digital display can be used for field processes and engineering orders

position A single button allows the selection of 4 to 6 engineering units depending on the range.

[Product Features]

² Convenient calibration zero and range selection, save installation time, convenient equipment operation and monitoring

² responds quickly to pressure changes without delay in sending signals and emergency warnings.

² Easy to read LCD screen provides instant on-the-spot alerts, allowing faster remedial action to be taken to resolve problems.

² Same size as Magnehelic meter for easy installation and field upgrade to digital manometer.

² Tamper-proof button configuration to prevent accidental change of SettingsDM-2002-LCD Dwyer Digital Magnehelic Gauge 4 To 20 MADM-2002-LCD Dwyer Digital Magnehelic Gauge 4 To 20 MADM-2002-LCD Dwyer Digital Magnehelic Gauge 4 To 20 MA

【 Technical indicators 】

Medium: Air and non-combustible compatible air

Material: Consulting factory

Accuracy: ±1% of full scale (at 70°F.)

Stability: ±1% FS/ year.

Temperature limit: 20 to 120°F (-6.67 to 48.9°C).

Pressure limit: 10 psig (0.69 bar).

Temperature effect: ±0.055% FS/°F (0.099% FS/°C).

Power Supply: 10 to 35 VDC (2 wire).

Output limit: 4 to 20 mA.

Zero and range adjustment: digital button adjustment

Loop resistance: DC: Max. 0 to 1250 Ω

Current consumption: DC: Maximum 38 mA

Electrical connection: screw end wiring bar

Digital display: 3.5 bit LCD, character height is 0.7 bytes

Process connection: Hose with inner diameter of 1/8 youdaoplaceholder8

Installation position: Vertical

Weight: 4.8oz (136 g)

Send your message to this supplier
Send Now

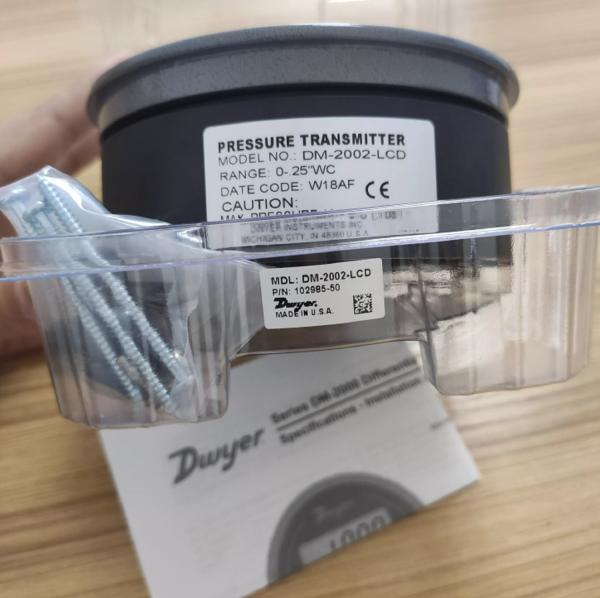

DM-2002-LCD Dwyer Digital Magnehelic Gauge 4 To 20 MA
