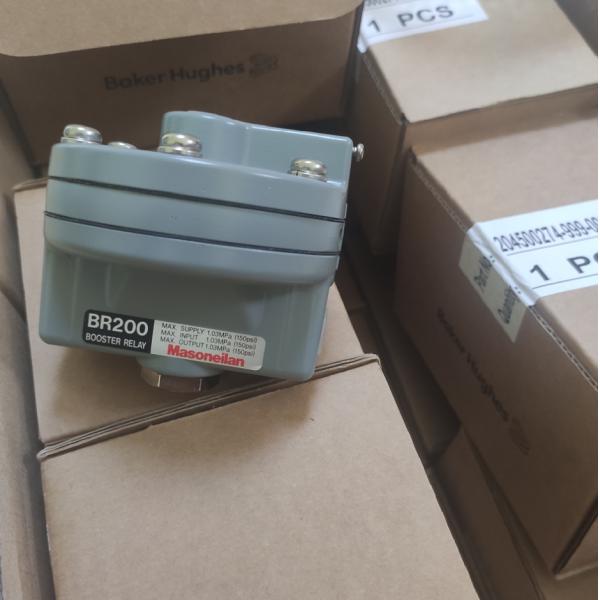

Original Masoneilan Booster Relays Model BR200 / BR400 4 Spool Hydraulic Control Valve
Original Masoneilan Booster Relays Model BR200 / BR400 4 Spool Hydraulic Control Valve
Original Masoneilan Booster Relays Model BR200 / BR400 4 Spool Hydraulic Control Valve
Original Masoneilan Booster Relays Model BR200 / BR400 4 Spool Hydraulic Control Valve
Original Masoneilan Booster Relays Model BR200 / BR400 4 Spool Hydraulic Control Valve
Original Masoneilan Booster Relays Model BR200 / BR400 4 Spool Hydraulic Control Valve
Original Masoneilan Booster Relays Model BR200 / BR400 4 Spool Hydraulic Control Valve
Original Masoneilan Booster Relays Model BR200 / BR400 4 Spool Hydraulic Control Valve
Specifications
Brand Name :
Masoneilan
Model Number :
BR200/BR400
Certification :
CE
Place of Origin :
Japan
MOQ :
1
Price :
USD$580/PC
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500
Delivery Time :
5-8 work days
Packaging Details :
Carton
Type :
Booster Relay
Maximum Supply Pressure :
150 psi (10.3 bar)
Maximum Cv (supply) :
1.2 (BR200) and 2.6 (BR400)
Maximum Cv (exhaust) :
1.2 (BR200) and 2.4 (BR400)
Operating Temperature Limits :
-30℃ to +83℃ (-22℉ to +181℉)
Input / Output Ratio :
1:1
Supply and Output Connections :
1/4" NPT or Rc (BR200) and 1/2" NPT or Rc (BR400)
Signal Connection :
1/4" NPT or Rc
Approximate Weight :
0.7 kg (1.5 lbs) for BR200 and 1.4 kg (3 lbs) for BR400
Condition :
Original and new
Description

Original Masoneilan Booster Relays Model BR200 / BR400 4 spool hydraulic control valve

Masoneilan Model BR200 and BR400 pneumatic booster relays offer high capacity air volume boost for fast and consistent dynamic control-valve system response. These devices offer a 1:1 input to output ratio with a maximum supply and signal pressure of 150 psi (10.3 bar). The BR200 and BR400 relays also include an integrated internal bypass valve for sensitivity adjustment and dynamic response optimization. Integrated filters in both the supply and signal ports feature stainless steel components and corrosion resistant finishes for a durable assembly.

Original Masoneilan Booster Relays Model BR200 / BR400 4 Spool Hydraulic Control Valve

Features And Benefits

  • Flow sensitivity adjustment allows optimization of the system dynamic response for improved efficiency and safer operation in key pneumatic control valve applications
  • Corrosion-resistant design and wide temperature range offer the flexibility to accommodate a variety of operating environments and conditions
  • Provides short stroking times and consistently stable operation that results in stable process loop.
  • Filters on both the supply and signal ports provide extra protection against contamination resulting in more-stable performance over a longer product life.

Original Masoneilan Booster Relays Model BR200 / BR400 4 Spool Hydraulic Control Valve

Input/Output Ratio:
• 1:1
Maximum Supply/Signal Pressure:
• 150 psi
Temperature range:
• -30°C to +83°C, option for -50°C to
+60°C or 0°C to +100°C
Maximum Cv BR200:
• Supply: 1.2
• Exhaust: 1.2
Maximum Cv BR400:
• Supply: 2.6
• Exhaust: 2.4

Original Masoneilan Booster Relays Model BR200 / BR400 4 Spool Hydraulic Control Valve

Specifications

item
value
Warranty
1 Year
Customized support
OEM, ODM
Place of Origin
Japan
Brand Name
Masoneilan
Model Number
BR200/BR400
Type
Booster Relay
Maximum Supply Pressure
150 psi (10.3 bar)
Maximum Cv (supply)
1.2 (BR200) and 2.6 (BR400)
Maximum Cv (exhaust)
1.2 (BR200) and 2.4 (BR400)
Operating Temperature Limits
-30℃ to +83℃ (-22℉ to +181℉)
Input / Output Ratio
1:1
Supply and Output Connections
1/4" NPT or Rc (BR200) and 1/2" NPT or Rc (BR400)
Signal Connection
1/4" NPT or Rc
Approximate Weight
0.7 kg (1.5 lbs) for BR200 and 1.4 kg (3 lbs) for BR400
Condition
100%new

Original Masoneilan Booster Relays Model BR200 / BR400 4 Spool Hydraulic Control ValveOriginal Masoneilan Booster Relays Model BR200 / BR400 4 Spool Hydraulic Control Valve
