Rosemount 3051T In-Line Pressure Transmitter 4-20 mA with Digital Signal Based on HART Protocol

Product Description

Rosemount 3051T In-Line Pressure Transmitters are the industry standard for Gage and Absolute pressure measurement. The in-line, compact design allows the transmitter to be connected directly to a process for quick, easy and cost effective installation.

Capabilities include:

• Power Advisory can proactively detect degraded electrical loop integrity issues (Option Code DA0)
• Local Operator Interface with straightforward menus and built-in configuration buttons (Option Code M4)
• Safety Certification (Option Code QT)

Specification

Emerson 3051TG In-Line Pressure Transmitter Specifications:
Rangedown Up to 150:1
Communication Protocol 4-20 mA HART, WirelessHART®, FOUNDATION fieldbus, Profibus, 1-5 V Low Power HART
Measurement Range Up to 20000 psig (1378,95 bar) Gage, Up to 20000 psia (1378,95 bar) Absolute
Process Wetted Material 316L SST, Alloy C-276
Diagnostics Basic Diagnostics, Loop Integrity
Certifications/Approvals SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE®, hazardous location, see full specs for complete list of certifications

The 3051T pressure transmitter combines proven sensor and electronics technologies with a single isolator design for absolute and gage pressure measurements from 0.3 to 10,000 psi. The 3051T pressure transmitter provides a superior alternative for measuring absolute or gage pressure with the rugged, reliable performance that is characteristic of pressure transmitters.

Process Connection:Flange with fixing thread 7/16-20 UNF and 1/4-18 NPT female thread on both sides.

Electrical Connection:The electrical connection is made via cable entry M20x1.5.

Working Pressure Limits:Maximum working pressure: 16MPa,25MPa,40MPa.

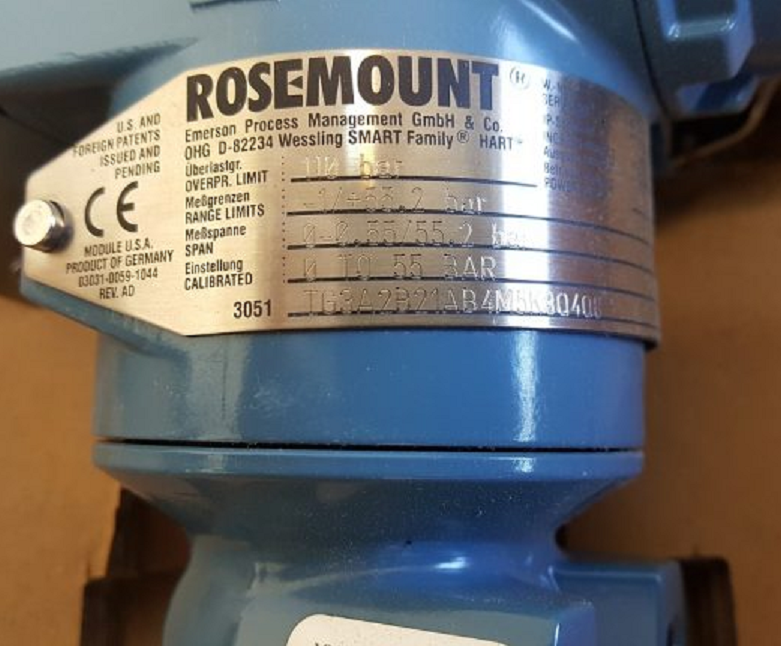

3051TG3A2B21AB4 | Rosemount 3051T In-Line Pressure Transmitter

4–20 mA with Digital Signal Based on HART Protocol,Low-Power 1-5 Vdc with Digital Signal Based on HART Protocol.

Total performance is based on combined errors of reference accuracy, ambient temperature effect, and static pressure effect at normal operating conditions (70% of span typical reading, 740 psi (51,02 bar) line pressure).

Total performance is based on combined errors of reference accuracy, ambient temperature effect, and static pressure effect at normal operating conditions (70% of span typical reading, 740 psi (51,02 bar) line pressure).
