100% Original Trumeter DC Hour Meter with an operating range of 10-80VDC type732 series

Introduction

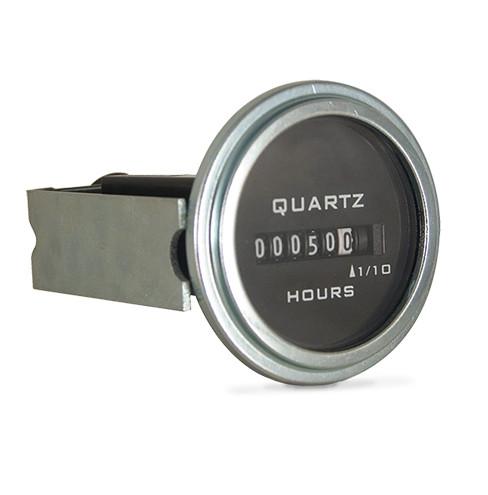

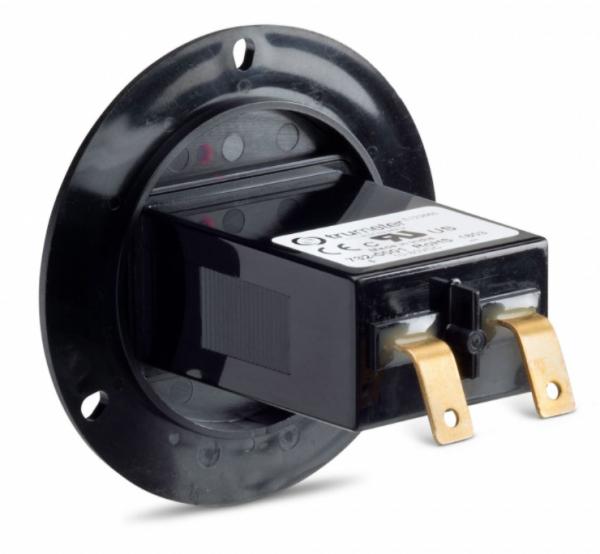

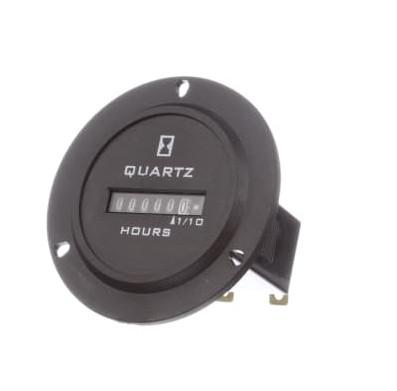

The Redington Model 732 provides a DC Hour Meter with an operating range of 10-80VDC. Models are protected for 2 times battery voltage and/or reverse polarity. Models are available in the standard industry housings, 3-Hole Round, Flush-Rectangular, Flush-Round and 2-Hole Rectangular. A Stirrup and Cup mount are available for applications where high shock and vibration exist. Its quartz time base insures accurate long-term time keeping. The Totally Sealed case protects against the environment and provides years of reliable service. Most models are NEMA 4X, 12 rated when mounted with optional gasket.

Specification

Operating principle

The core is the electronic oscillator, by the frequency of the electronic oscillator to determine the time base, on this basis to achieve digital display or pointer movement

Performance characteristic

• Operating voltage 10-80VDC

• Totally Sealed

• UL/cUL Recognized, CE & RoHS Compliant

• 6 Figure, 99999.9

• Quartz accuracy

• 6 mounting variations

Construction

Option

• Wire leads

• Gasket kit (for NEMA 4X, 12 rating)

• Custom Lens

• Terminals up, down, straight

Transient Protection: ± 6 times normal for 300msec

Agency Approvals: UL/cUL Recognized, CE, SAE, & RoHS Compliant. All models are NEMA 4X, 12 Compliant except the Cup and Stirrup mount

Overvoltage & Reverse Polarity: Protected for 2 times battery voltage and/or reverse polarity

Environmental: Totally Sealed

Front Panel: NEMA 4X, 12 rated with optional gasket

Humidity: 95% (SAE J1378)

Vibration: 10-80Hz. 20g max. (SAE J1378)

Shock: 55g @ 9 - 13msec (SAE J1378)

Application areas: Material Handling, Farm Equipment, Outdoor Power Equipment, Construction Equipment , Utility Vehicles
