500V Programmable Logic Controller For Fly Follow Cut Support 2-4 Channels
500V Programmable Logic Controller For Fly Follow Cut Support 2-4 Channels
500V Programmable Logic Controller For Fly Follow Cut Support 2-4 Channels
500V Programmable Logic Controller For Fly Follow Cut Support 2-4 Channels
500V Programmable Logic Controller For Fly Follow Cut Support 2-4 Channels
500V Programmable Logic Controller For Fly Follow Cut Support 2-4 Channels
500V Programmable Logic Controller For Fly Follow Cut Support 2-4 Channels
500V Programmable Logic Controller For Fly Follow Cut Support 2-4 Channels
Specifications
Brand Name :
xinje
Model Number :
CAM2-16T-E
Certification :
CCC ISO
Place of Origin :
CHINA
MOQ :
1
Price :
($230-$360)/PC
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000/PC/MONTH
Delivery Time :
14 Work days
Packaging Details :
Carton (standard original package)
Insulation voltage :
Above DC 500V 2MΩ
Anti noise :
Noise voltage 1000Vp-p 1us pulse 1 minute
Air :
No corrosive and combustible gas
Ambient temperature :
0℃~60℃
Ambient humidity :
5%~95% (no condensation)
USB port :
USB fast download port, connect PC for downloading/uploading/monitoring
Description

CAM series special models for fly cut and follow cut support 2 ~ 4 channels CAM2-16T-E

CAM series PLC

CAM series special models for fly cut and follow cut, support 2 ~ 4 channels of electronic cam functions, including 16, 32 and 60 points specifications.

Product features
CAM series special models for fly cut and follow cut, support 2 ~ 4 channels of electronic cam function, including 16, 32 and 60 points specifications.
It also supports multi-channel 2-axis linear interpolation and circular interpolation motion control (not supported by CAM2).
Support hand wheel input and polar coordinate function (not supported by CAM2).
NPN input, transistor (T) / transistor relay hybrid (RT) output, AC220V (E).
Support basic logic control and data operation.
It is 12 times faster than XC series and has more internal resource space.
Support free format communication, MODBUS communication and X-NET fieldbus functions.
It supports special functions such as high-speed counting (up to 80kHz), 2 ~ 10 axis pulse output (up to 100kHz), frequency measurement and so on.
Standard USB port for programming download.
Up to 10 ~ 16 expansion modules, 1 expansion ED and 1 ~ 2 expansion BD are supported.


Model list

Model

Input points
(DC24V)

Output points
(R, T)

AC power supply
Relay outputTransistor outputRelay and transistor mixed output
NPN-CAM2-16T-ECAM2-16RT-E88
-CAM2-32T-ECAM2-32RT-E1814
-CAM4-32T4-E-1814
-CAM4-60T10-E-3624
PNP-CAM2-16PT-ECAM2-16PRT-E88
-CAM2-32PT-ECAM2-32PRT-E1814
-CAM4-32PT4-E-1814
-CAM4-60PT10-E-3624

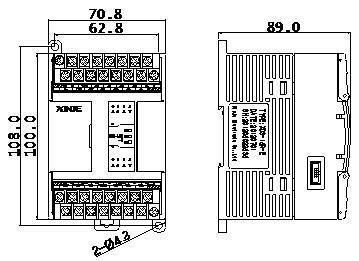

500V Programmable Logic Controller For Fly Follow Cut Support 2-4 Channels500V Programmable Logic Controller For Fly Follow Cut Support 2-4 Channels
500V Programmable Logic Controller For Fly Follow Cut Support 2-4 Channels
General Specifications

ItemSpecification
Insulation voltageAbove DC 500V 2MΩ
Anti noiseNoise voltage 1000Vp-p 1us pulse 1 minute
AirNo corrosive and combustible gas
Ambient temperature0℃~60℃
Ambient humidity5%~95% (no condensation)
USB portUSB fast download port, connect PC for downloading/uploading/monitoring
COM1RS232, connect upper computer, HMI to programming and debug
COM2RS485, connect intelligent instruments, frequency converters, etc
COM3For left expansion ED module
InstallationIt can be fixed with M3 screws or directly installed on the guide rail
Ground (FG)The third kind of grounding (not common grounding with strong current system)




Functional Specifications

ItemSpecification
Program execution modeLoop scan mode
Programming modeCommand and ladder chart
Processing speed0.05us
Power-off retentiveFlashROM and 3V lithium battery
User program capacity ※1348kB

I/O
points
※2

Total points16 points32 points64 points
Input points8 points X0~X718 points X0~X2136 points X0~X43
Output points8 points Y0~Y714 points Y0~Y1524 points Y0~Y27
Internal coils (X)※31280 points: X0~X77, X10000~X11777, X20000~X20177, X30000~X30077
Internal coils (Y) ※41280 points: Y0~Y77, Y10000~Y11777, Y20000~Y20177, Y30000~Y30077

Internal coils
(M, HM)

11008 points/
87000 points

CAM2: M0~M7999【HM0~HM959】※5
CAM4: M0~M69999【HM0~HM11999】※5

Special use ※6 CAM2: SM0~SM2047
CAM4: SM0~SM4999

Flow (S)1152 points/ 9000 points

CAM2: S0~S1023【HS0~HS127】
CAM4: S0~S7999【HS0~HS999】

Timer (T)Points672 points/ 7000 points

CAM2: T0~T575【HT0~HT95】
CAM4: T0~T4999【HT0~HT1999】

Spec

100ms timer: 0.1~3276.7s
10ms timer: 0.01~327.67s
1ms timer: 0.001~32.767s

Counter (C)Points672 points/ 7000 points

CAM2: C0~C575【HC0~HC95】
CAM4: C0~C4999【HC0~HC1999】

Spec

16-bit counter: K0~32,767
32-bit counter: -2147483648~＋2147483647

Data register (D)11048 words/ 100000 words

CAM2: D0~D7999【HD0~HD999】※5
CAM4: D0~D69999【HD0~HD24999】※5

Special use ※6 CAM2: SD0~SD2047
CAM4: SD0~SD4999

FlashROM register
(FD)

8144 words/ 14192 words

CAM2: FD0~FD6143
CAM4: FD0~FD8191

Special use ※6 CAM2: SFD0~SFD1999
CAM4: SFD0~SFD5999

High speed processing abilityHigh speed counter, pulse output, external interruption
Password protection6-bit ASCII
Self-diagnose functionPower on self-check, monitor timer, grammar check


Notes:
※ 1: User program capacity refers to the maximum program capacity during secret download.
※ 2: I / O points refer to the number of terminals that users can access and output signals from the outside.
※ 3: X refers to the internal input relay, and X exceeding I points can be used as intermediate relay.
※ 4: y refers to the internal output relay. Y exceeding O points can be used as an intermediate relay.
※ 5: [ ] flag, which is the default power-off holding area and cannot be changed.
※ 6: Special use refers to the special purpose register occupied by the system, which can not be used for other purposes.
※ 7: The numbers of input coils and output relays / transistors are octal numbers, and the numbers of other memories are decimal numbers.
※ 8: I / O without real connection with peripheral equipment can be used as fast internal relay.

Function configuration table:

ModelsUSB portRS232CommunicationExpansion moduleExpansion BD boardHigh speed counting channel

Pulse output channel
(T/RT)

External interrupt
RS485Free formatIncrementalAB phase
CAM series
CAM2-1611√√10×2226
CAM2-3211√√10133210
CAM4-32T411√√16244410
CAM4-60T1011√√16210101010

Note: All the models have RTC function.
