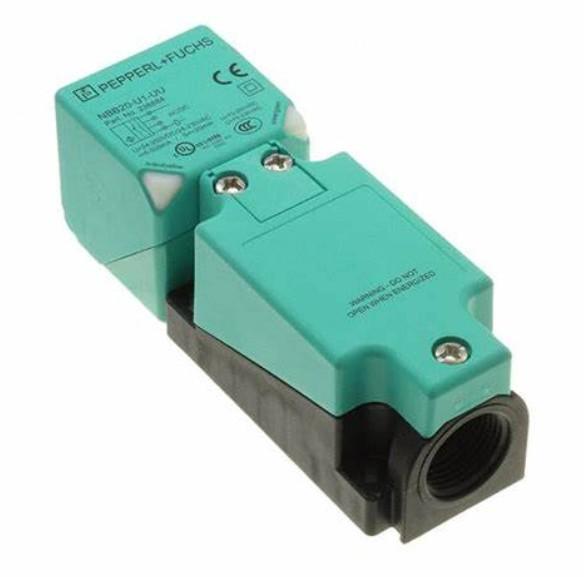

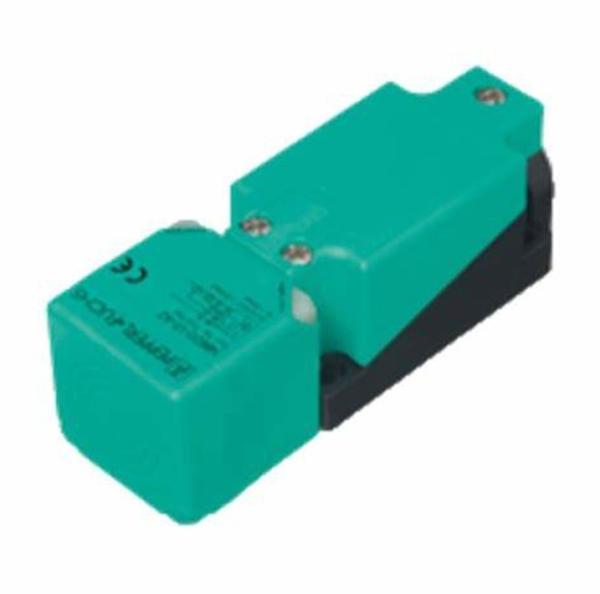

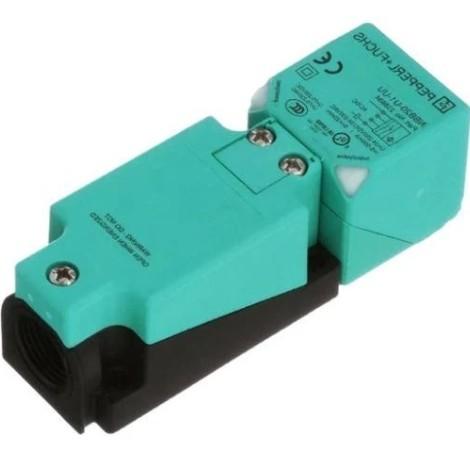

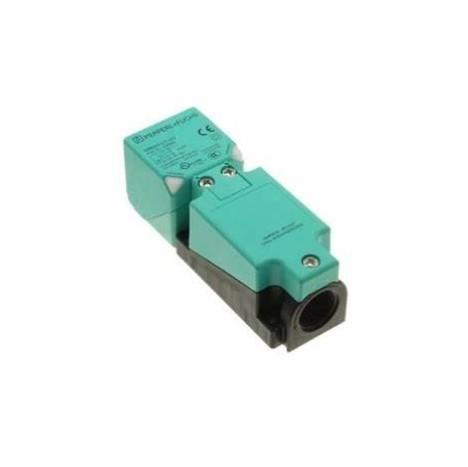

Two-wire Output Type Pepperl Fuchs M20 Inductive Block Proximity Sensor 20 mm Detection 20 → 253 V ac
Two-wire Output Type Pepperl Fuchs M20 Inductive Block Proximity Sensor 20 mm Detection 20 → 253 V ac
Two-wire Output Type Pepperl Fuchs M20 Inductive Block Proximity Sensor 20 mm Detection 20 → 253 V ac
Two-wire Output Type Pepperl Fuchs M20 Inductive Block Proximity Sensor 20 mm Detection 20 → 253 V ac
Two-wire Output Type Pepperl Fuchs M20 Inductive Block Proximity Sensor 20 mm Detection 20 → 253 V ac
Two-wire Output Type Pepperl Fuchs M20 Inductive Block Proximity Sensor 20 mm Detection 20 → 253 V ac
Two-wire Output Type Pepperl Fuchs M20 Inductive Block Proximity Sensor 20 mm Detection 20 → 253 V ac
Two-wire Output Type Pepperl Fuchs M20 Inductive Block Proximity Sensor 20 mm Detection 20 → 253 V ac
Specifications
Brand Name :
Pepperl + Fuchs
Model Number :
NBB20-U1-UU
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
USD$40
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500pc
Delivery Time :
in stock
Packaging Details :
carton
Output type :
Two-wire
Rated operating distance :
20 mm
Installation :
flush
Output polarity :
AC/DC
Reduction factor rAl :
0.4
Description
General specifications
Switching function Normally open/closed (NO/NC)
Output type Two-wire
Rated operating distance 20 mm
Installation flush
Output polarity AC/DC
Assured operating distance 0 ... 16.2 mm
Actual operating distance 18 ... 22 mm
Reduction factor rAl 0.4
Reduction factor rCu 0.3
Reduction factor r304 0.77
Reduction factor rFe 1
Reduction factor rBrass 0.43
Output type 2-wire
Nominal ratings
Switching frequency AC, 0 ... 30 Hz
DC, 0 ... 100 Hz
Hysteresis 1 ... 10 typ. 5 %
Reverse polarity protection reverse polarity tolerant
Short-circuit protection pulsing
Voltage drop ≤ 5 V (typ. 2V) DC operation
≤ 8 V (typ. 3 V) AC operation
Momentary current
(20 ms, 0.1 Hz)		 0 ... 3000 mA
Operating current 5 ... 500 mA
Rated operating current 500 mA 50/60 Hz
Lowest operating current 5 mA
Off-state current ≤ 1.5 mA
Usage category AC12 , AC140 , DC12 , DC13
Time delay before availability ≤ 300 ms
Operating voltage indicator LED, green
Switching state indicator LED, yellow
Error indicator flashes when overcurrent
Functional safety related parameters
MTTFd 540 a
Mission Time (TM) 20 a
Diagnostic Coverage (DC) 0 %
Electrical specifications
Rated operating voltage 24 ... 250 V DC / 24 ... 230 V AC
Operating voltage 20 ... 275 V DC / 20 ... 253 V AC
Compliance with standards and directives
Standard conformity
Standards EN IEC 60947-5-2
Approvals and certificates
Protection class II
Rated insulation voltage 250 V
Rated impulse withstand voltage 2.5 kV
UL approval cULus Listed, General Purpose
"For use in NFPA 79 Applications only"
For overcurrent protection, install a fuse with a rated current of max. 3 A and at least 300 V AC/DC
CCC approval Ue 75VDC - 250VDC Ue 75VAC - 230VAC
Ambient conditions
Ambient temperature -25 ... 85 °C (-13 ... 185 °F)
Storage temperature -25 ... 85 °C (-13 ... 185 °F)
Pollution degree 3
Mechanical specifications
Connection type terminal compartment
Information for connection A maximum of two conductors with the same core cross section may be mounted on one terminal connection!
tightening torque 1.2 Nm + 10 %
Core cross section up to 2.5 mm2
Minimum core cross-section without wire end ferrules 0.5 mm2 , with connector sleeves 0.34 mm2
Maximum core cross-section without wire end ferrules 2.5 mm2 , with connector sleeves 1.5 mm2
Housing material PA 6.6 / metal
Sensing face PA 6.6
Housing base plastic
Degree of protection IP67
Mass 255 g
Dimensions
Height 40 mm
Width 40 mm
Length 118 mm
Note Tightening torque: 1.8 Nm (housing)
