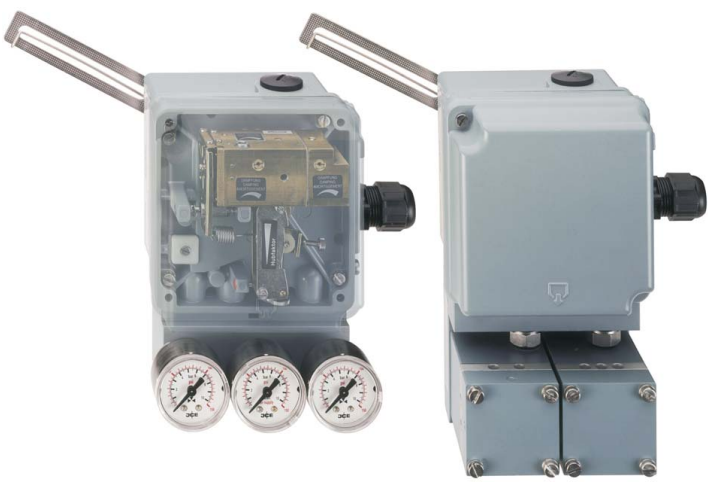

Foxboro SRI986-BIDS7ZZZNA Electro-Pneumatic Positioner IP65 Protection Class For Industrial
Foxboro SRI986-BIDS7ZZZNA Electro-Pneumatic Positioner IP65 Protection Class For Industrial
Foxboro SRI986-BIDS7ZZZNA Electro-Pneumatic Positioner IP65 Protection Class For Industrial
Foxboro SRI986-BIDS7ZZZNA Electro-Pneumatic Positioner IP65 Protection Class For Industrial
Foxboro SRI986-BIDS7ZZZNA Electro-Pneumatic Positioner IP65 Protection Class For Industrial
Foxboro SRI986-BIDS7ZZZNA Electro-Pneumatic Positioner IP65 Protection Class For Industrial
Foxboro SRI986-BIDS7ZZZNA Electro-Pneumatic Positioner IP65 Protection Class For Industrial
Foxboro SRI986-BIDS7ZZZNA Electro-Pneumatic Positioner IP65 Protection Class For Industrial
Specifications
Brand Name :
Foxboro
Model Number :
SRI986-BIDS7ZZZNA
Certification :
CCC,CE
Place of Origin :
USA
MOQ :
1
Price :
USD$1120/PC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100
Delivery Time :
3 days
Packaging Details :
Original case
Type :
Electro-Pneumatic Positioner
Version :
Single Acting
Input :
4 - 20 mA
Weight :
4kg
Ambient temperature :
–40 ... 80°C
Protection class :
IP65
Description

Foxboro Pneumatic Valve Positioner SRI986-BIDS7ZZZNA

The SRI986 Positioner is for operation of pneumatic valve actuators from control systems and electrical controllers with electric control signals. It is used to reduce the adverse effects of valve friction, for higher thrust and shorter positioning time

FEATURES

• Independent adjustment of stroke range and zero

• Adjustable amplification and damping

• Split range up to 3-fold possible

• Input signal 0/4 to 20 mA, 0/2 to 10 V

• Supply pressure up to 6 bar (90 psig)

• Low vibration effect in all directions

• Mounting according to IEC 534, part 6 (NAMUR)

• Rotation adapter for angles up to 120

• Explosion protection: II 2 G EEx ia IIC T6 according to ATEX or intrinsic safe according to FM and CSA

• EMC in accordance with the international standards and laws

• Modular system of additional equipment - Limit switches - Position transmitter - Booster - Connection manifold
