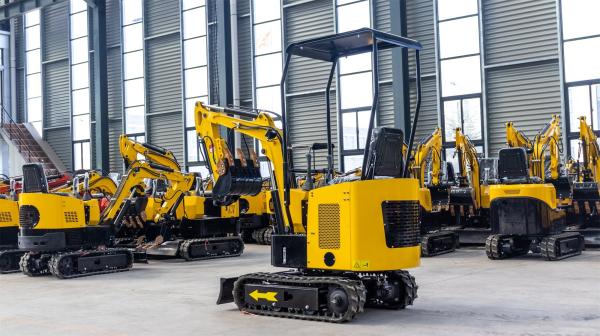

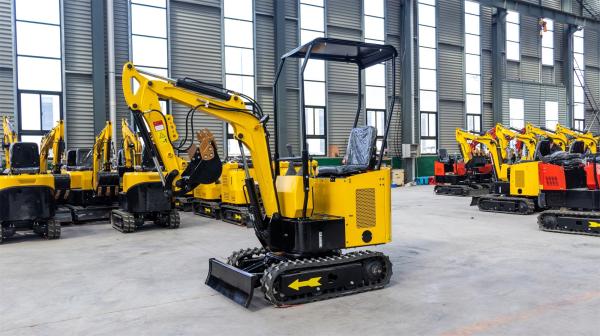

Widely Used 1.2ton Household Micro Excavator with CE Certification

Product Description

Our 1.2ton mini excavator is specially designed for high-end users. It is manufactured with precision and high-end accessories. It can withstand user inspections. It is durable and low-loss. The service life is 2-3 times that of ordinary excavators.

Our FW12 mini excavator is the most popular excavator for consumers, which can reach 100% user satisfaction.

Specifications:

Notices:

1. Lifting operations

Excavation in the lifting operation before, to select a flat and stable standing platform, so that the excavator stand firm heel. When lifting try to choose a special lifting device, choose a high-strength hook and wire rope; the length of the wire rope should be appropriate to prevent the lifting object from swinging too much for precise control.

When lifting the excavator select the micro-operation mode to ensure that the movements are balanced and slow and that the construction workers are as far away from the lifting object as possible to prevent accidental hazards.

2. Crushing operations

Before the crushing operation, the crushing hammer should be placed vertically on the object to be crushed, and the steel brazier should be pressed on the crushed object all the time when crushing, and the crushing operation should be stopped immediately after the crushed object is crushed.

The hammer should not break for more than one minute at one point and should continue to break at another point if it does not break for a long time. Hard objects should be broken from the edge. During the breaking process, it is strictly forbidden to use the hammer as a chisel or pry bar.

3. Stone work
The bucket and arm of the excavator are the most abrasive. When digging, select the place where the rock is broken and adjust the angle of the bucket according to the direction of the rock crack to ensure that the bucket can be shovelled into the rock smoothly. For large pieces of unbroken rock, the bucket should be broken before digging to avoid using the bucket as a hammer or crowbar.


4. Slope levelling operations

When levelling a slope, first find a good working platform for the excavator and, if possible, use lime to mark the path of the excavator and the edge of the slope. Be patient in your work and control the speed of the boom and bucket in order to achieve a smooth slope.

5. Walking operations

When the excavator needs to walk a long distance, it should try to put away various working devices to maintain the stability of the upper body of the excavator. Avoid obstacles as far as possible during walking, and always support the chassis with the moving arm when crossing the mound to prevent the body from tipping over.

When walking uphill, the drive wheels should be placed at the back to increase the traction of the tracks on the ground. When travelling downhill, the drive wheels should be placed at the front and the top track should be taut to prevent uncontrolled slipping forward when travelling downhill. If you need to stop on a slope, insert the bucket into the ground after stopping and place a stopper under the tracks.

Applications:
The main uses of the excavator: in road construction projects to excavate trenches, in construction projects to excavate the foundation, in water conservancy projects to excavate ditches, canals, and dredging rivers, in quarries, open-pit mining and other projects for the stripping and excavation of ore, etc.; in addition to gravel, coal, and other loose materials can be loaded.
Operation: After replacing the working device, it can also be used for lifting, pouring, installation, piling, ramming, and pile pulling.

Our Service:

We support OEM/ODM service, we have professional develop research department, like designs, colors, and also products all can be acceptable customized, we have 3 times supervise on quality control through production line before send out. And quality and service is our first principle of company.We keep 12 months warranty, beyond the warranty period, all spare parts offered to you with our cost price (not including freight).By the way, we support 24Hour customer service by email or phone. Please feel free to contact, we are willing to become your friend and business partner.

FAQ

Q:How can we ensure quality?
A:The final inspection is always carried out 3 times before shipment.

3.Payment
Q:What kind of payment terms can be accepted?
A: Normally we can worked on T/T.

4.Delivery time
Q:How about your delivery time?
A:Generally, it will take 7-10 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

5.Packing
Q:What are your terms of packing?
A: Generally, we use standard exported wooden cases for LCL goods and fixed well for FCL goods.

6. Warranty
Q: How to identify the quality about mini excavator for sale?
A: Our mini crawler excavator have a 12 months warranty after sale.

7.Long-term shipment
Q:How to make our business a long-term and good relationship?
A:1.We keep good quality and competitive price to ensure your benefits;
2.We respect every customer as our friend and we sincerely do business and make friends with you,no matter where you come from
