Specifications
Brand Name :
None
Model Number :
FW18
Certification :
CE/ISO9001: 2000/EPA/Euro 5/SGS
Place of Origin :
Shandong, China
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P, Paypal
Supply Ability :
5000 Units/Year
Delivery Time :
3-15 week days
Packaging Details :
Nude / Wooden Box
Drive Type :
Internal Combustion Drive
Transmission :
Hydraulic Transmission
Customized :
Support OEM and ODM
Type :
Crawler Excavator
After-sales Service :
Spare Parts
Warranty :
12 Months
Bucket Capacity :
0.1-0.5m³
Transport Package :
Nude / Wooden Box
Specification :
1800kg
Color :
Blue, Yellow, Red, Orange, Green, White
Working Hour :
2000h
Description

High Efficiency Comfortable Operation Hydraulic Transmission Digger Mini Excavator

1. Mini excavator is smaller than a traditional excavator, What’s more, important that is also reduced in terms of fuel consumption, so the improvement of energy saving is the optimization of environmental protection projects.
2. High usage rate, a wide range of use environment, and high efficiency are also the advantages of small excavators, in the construction team, efficiency and quality are undoubtedly in the first place.
3. Noise pollution is also a source of pollution. Small excavators also do a good job of reducing noise, which is conducive to promoting the safety and efficiency of workers.

Specifications:

Specifications
Overall Dimension (L*W*H)/Delivery Length4335/1665mm
axle base(track length on ground)1100mm
Upper width990mm
Total height2272mm
Standard track shoe width180mm
track gauge930mm
Minimum ground clearance119mm
Tail turning radius800mm
Track grounding length1050mm
Track length1545mm
Weight1550KG
Bucket Capacity0.025m³
Rated Power10.2KW/2500RPM
Swing Speed12RMP
Max. Grade Ability30°
Max. digging height2580mm
Max. dumping height1650mm
Max. digging depth2080mm
Max. digging distance3180mm
Min. rotation radius1711mm
Min. rotation radius Max height2048mm
EngineKubotaD722
ValveChina


Our Service:
We support OEM/ODM service, and we have a professional development research department, designs, colors, and also products all can be acceptably customized, we have 3 times to supervise quality control through the production line before sending out. And quality and service is the first principle of the company. We keep 12 months warranty, beyond the warranty period, and all spare parts are offered to you at our cost price (not including freight). By the way, we support 24Hour customer service by email or phone. Please feel free to contact us, we are willing to become your friend and business partner.

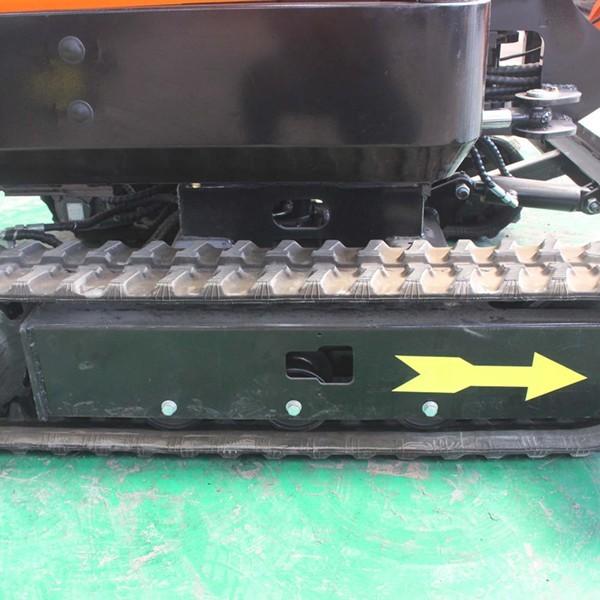

Hydraulic Transmission Mini  1.8 T Excavator Comfortable Operation
Hydraulic Transmission Mini  1.8 T Excavator Comfortable Operation

Applications:
The main uses of the excavator: in road construction projects to excavate trenches, in construction projects to excavate the foundation, in water conservancy projects to excavate ditches, canals, and dredging rivers, in quarries, open-pit mining and other projects for the stripping and excavation of ore, etc.; in addition to gravel, coal and other loose materials can be loaded.
Operation: After replacing the working device, it can also be used for lifting, pouring, installation, piling, ramming, and pile pulling.
Hydraulic Transmission Mini  1.8 T Excavator Comfortable Operation
Hydraulic Transmission Mini  1.8 T Excavator Comfortable Operation
Hydraulic Transmission Mini  1.8 T Excavator Comfortable Operation
FAQ
Q1: Are you an original manufacturer?
We are a professional manufacturer, we have our own R&D team and sales team, and we provide a one-stop service.

Q2: What about the warranty time?
1 year or 2000 hours. We shoulder all costs during the warranty period, including the freight. And we also provide after-sales service support and agricultural technical support

Q3: What engine you can offer?
Optional Yanmar, Kubota, Brrigs&Sttraton engine,
Optional US EPA & Euro stage V engine

Q4: How can we ensure quality?
We have a quality control system and also double check supervise team,
The final inspection is always carried out before the shipment

Q5: What is your production time or delivery time?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 30-45 days, It depends on the order quantity.

Q6: What is your payment term?
Normally we can work on T/T and support 30% payment in advance and the other balance 70% can be paid against COPY B/L.
