High End Commercial Digital Measurement Meter Programmable For Marine Industry
High End Commercial Digital Measurement Meter Programmable For Marine Industry
Specifications
Brand Name :
WDLYCH
Model Number :
WD-3B
Certification :
ISO9001, CE
Place of Origin :
Wuhan, Hubei, China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
10,000pcs/month
Delivery Time :
7 days after payment
Packaging Details :
Inner color box with export carton
Product Name :
Digital Dial Indicator
Place of origin :
Wuhan, Hubei, China
Display Type :
Digital only
Measuring Range :
0-9999
Color :
Grey
Dimension :
96*96mm
Voltage :
AC220V or AC/DC85-270V
Accuracy Class :
0.2
Phase :
Single Phase
Communication :
As Option
Alarm :
As Option
Certificate :
ISO9001/CE
Warranty :
18 Months
Description


High End Commercial Digital Measurement Meter Programmable For Marine Industry


1. Product Description:

Digital intelligent meter is electric measuring units with function of programmable measurement,display and digital communication,etc. Adopt AC/DC sampling technology, be able to measure percentage in power transmission & distribution system, widely used in power transforming, distributing automation, intelligent building and power monitoring.

2. Technical Parameters:

Technical Index Value
Input
 Nominal value Voltage AC:100V,220V,380V; Current AC: 1A/5A
Overload Continuous: 1.2 time/1s; Instant: 10 time/1s
Frequency 45-65Hz
Consumption <0.5VA
Accuracy 0.2%
Function
Display LED or LCD
Communication RS485,Modbus-RTU protocol
Alarm One channel passive relay; Contact capacity: 3A/30VDC,3A/250VAC, high, low, unbalance alarm etc.
Analog
DC4-20mA, DC0-20mA(Load<500Ω), DC0-5V(Load >1kΩ)
Input: 2-4 channel dry contacts, power inside, optocoupler insolation
Output: 2 switch output,normal open contact of relay
Contact capacity: 3A/30VDC,3A/250VDC
Power Supply
 Voltage Range AC/DC85-270V
Power consumption <5VA
Insulation resistance ≥100MΩ
Power Frequency
Withstand Voltage		 2kv/1min
Environment
 Temperature Opertation: -25-55℃, Storage: -20℃-75℃
Humidity ≤93RH, no condensation, without corrosive
Attitude ≤2500m




3. Functions:

-Measure single phase percentage in low voltage distribution system;

- Suitable for replacing pointer meter;

- Suitable for HV & HV voltage system;

-. High accuracy IEC62053-21 0.5%;

-. Built in MODBUS-RTU via RS485 port;

-. Optional analog output 4-20mA / 0-20mA

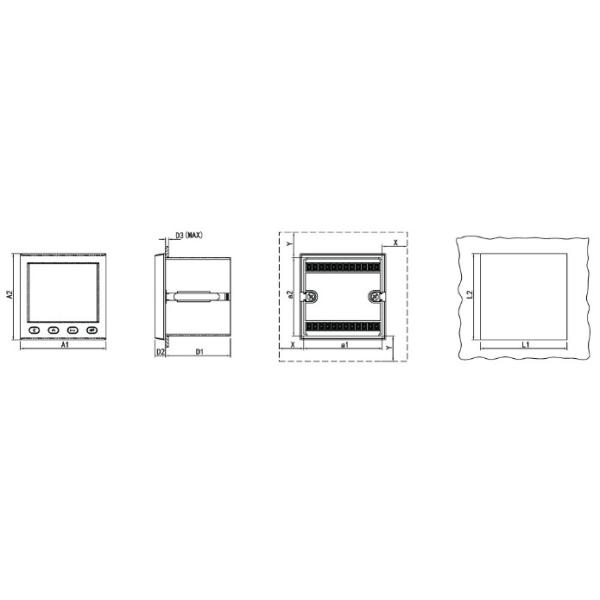

4. Dimension:

High End Commercial Digital Measurement Meter Programmable For Marine Industry

Model

Panel

(A1*A2)

Installation

(a1*a2)

Cut-out

(L1*L2)

Depth

(D1)

Thickness

(D2)

Installation board

thickness

D3(Max)

 Reserved Size
Level(X) Vertical(Y)
WD-2B 120*120 110*110 111*111 93 15 5 10 20
WD-9B 96*96 91*91 92*92 93 13.5 10 40 20
WD-3B 80*80 75*75 76*76 93 12.5 5 10 20
WD-AB 72*72 67*67 68*68 93 12.5 5 10 20
WD-BD 96*48 91*44 92*45 93 13.5 5 40 20
WD-DB 48*48 44.5*44.5 45*45 81 9.5 5 40 20



5. Optional Function:

High End Commercial Digital Measurement Meter Programmable For Marine Industry



6. FAQ:

Q: Are you trading company or manufacturer ?

A: We are factory and trading company at same time. We have all kinds of resources in the electrical industry. All the products you need can be supply with lowest price.

Q: How long is your delivery time?

A: Generally it is 7 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Sample is available but customers have to pay.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance.

Q: How to send a inquiry for more information ?

A: You can find our contact information on the front page of the shop.
