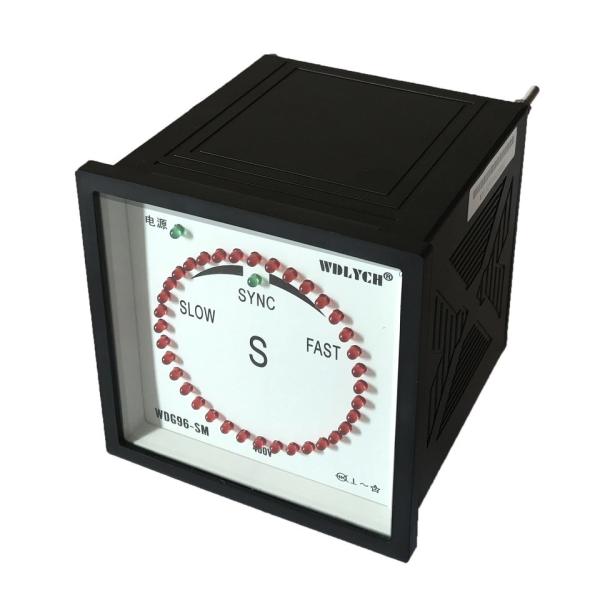

96 * 96mm Synchroscope Meter , Three Phase Phase Sequence Meter Pt Connection

1. Introduction:

In two single-phase or three-phase network system, indicating the status when power generator and network are synchronized. Rotation of indication of indication disc will slow down until the pointer stop at(Inverted triangle) sign. Both system can be synchronized and connect the generator to the power network. Maxinum working time: 15 minutes.

Pls specify single-phase or three-phase while ordering.

2. Basic Data:

1). Power Supply: AC400V or AC100V, 50/60Hz;

2). Speed adjusting can work under absolute frequency less than 3Hz;

3). Pulse width of speed adjusting: 0.1-0.5S, level 0-9, "0" is testing code;

4). Range of frequency difference locking: 0.12-0.5Hz, default set: 0.3Hz;

5). Lead time of close command: 80ms-400ms, default: 200ms;

6). Power consumption: ≤5VA;

7). Output load capacity: AC380V/3A, DC280V/10A;

8). Environment temperature: 0-50℃, humidity: 95%
