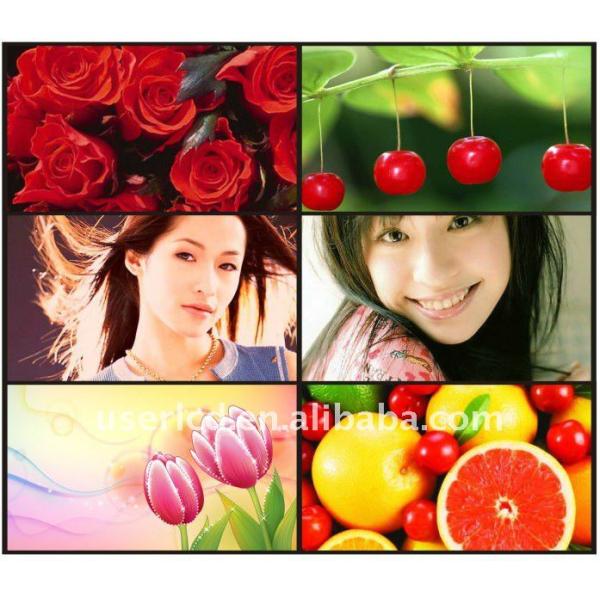

lcd wall design 40~82 inch
lcd wall design 40~82 inch
Specifications
Products Status :
Stock
Application :
wall-mounted;rack-mounted;embedded; etc
Screen Size :
40"
Response Time :
6ms
Brightness :
700cd/m2
Interface Type :
DVI, RS232C, S-Video, YPBPR, VGA
Contrast Ratio :
3000:1
Resolution :
1920 x 1080
Widescreen :
Yes
Panel Type :
TFT
Pixel Pitch :
.
Brand Name :
USER(or OEM)
Model Number :
US-LTI400HM03
Place of Origin :
Guangdong, China (Mainland)
DVI :
1
HD :
1
D-15 RGB Input(VGA) :
1
YUV/YPbPR :
1(3xBNC)
S-(YC) :
1(2xBNC)
Composite Video Input/(AV) :
3(3xBNC)
Composite Video Output :
2(2xBNC)
AUDIO INPUT :
1
Split Screen :
Support Picture in Picture(PIP/POP/PAP)
Price :
Negotiation
MOQ :
1 Unit/Units
Packaging Details :
Carton Box within PE Foam, wooden box
Delivery Time :
3-8 working days after delivery
Payment Terms :
T/T,L/C,Western Union,Paypal and MoneyGram
Supply Ability :
1000 Piece/Pieces per Week
Description

lcd wall design 40~82 inch

Features:

1. Ultra-narrow border design of the current width of only 11mm at present

2. Full-screen high definition display, up to 1080P

3. Unique cell-based, modular design, Which can splice as a liquid crystal wall can also be used alone

4. DID using Samsungs proprietary LCD screen is completely different from the normal LCD screen, display long-life, high stability, and focus on the special display.

5. Long life, stable operation, no burns, injuries, low maintenance costs

A wealth of input and output interface, VGA, DVI, YPbPr, Av interface terminal, can be accessed by computers and a variety of video equipment.

6.Brand-new ultra-wide viewing angle technology extended(S-PVAS-IPS), ensure that 178-degree viewing angle both vertical and horizontally within the image to watch the non-deformation, color without distortion.

lcd wall design 40~82 inch

LCD Video Wall Solution
LCD Video Wall Screen (SAMSUNG DID)
Specifications
Model No.US-LTI400HM03
Panel Size40" Samsung DID LCD Screen(with narrow bezel 20mm)
Aspect Ratio 16:9
Max Resolution Support1920x1080
Color8Bit,16.7M
Brightness (nits)700cd/m2
Contrast 3000:1
Visual Angle (H/V)178°
Response Time<=6ms
Life(hrs)>60,000(hrs)
Input and output
DVI1
HD1
D-15 RGB Input(VGA)1
YUV/YPbPR1(3xBNC)
S-(YC)1(2xBNC)
Composite Video Input/(AV)3(3xBNC)
Composite Video Output2(2xBNC)
AUDIO INPUT1
Split ScreenSupport Picture in Picture(PIP/POP/PAP)
Power
Power SupplyAC100V~240V
Maximum Power Consumption250W
Standby Power Consumption<=3W
Temperature
Working Temperature0°C~50°C
Working Humidity20%-80%
Dimension911.7X524.2X128mm

Video Wall Controller(Built-in each Screen)
Model No.US-P816A
Input CVBS3*BNC inputs, support PAL/NTSC all formats, 2*BNC loop outputs
VGA1*D15 port, support SVGA/XGA/WXGA
YPbPr/YCbCr

1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I,

HDTV

Y/C2*BNC inputs, support PAL/NTSC all formats
Output LVDS

Support signal or double LVDS output, and WUXGA (1920*1080)

display

Operate mode Panel key operation(needs customization)
Standard RS232 port( provide free control software)
Infrared Remote Control Operation
Engineering softwareCustomized
Working temperature 0~70 °C
working humidity5~95 %RH
AC voltage power supply100-240V/50, 60Hz
power consumptionMax 300W,according to different Screen models
Dimension338×295×60(mm)
WeightAbout 3.5KG

lcd wall design 40~82 inch
