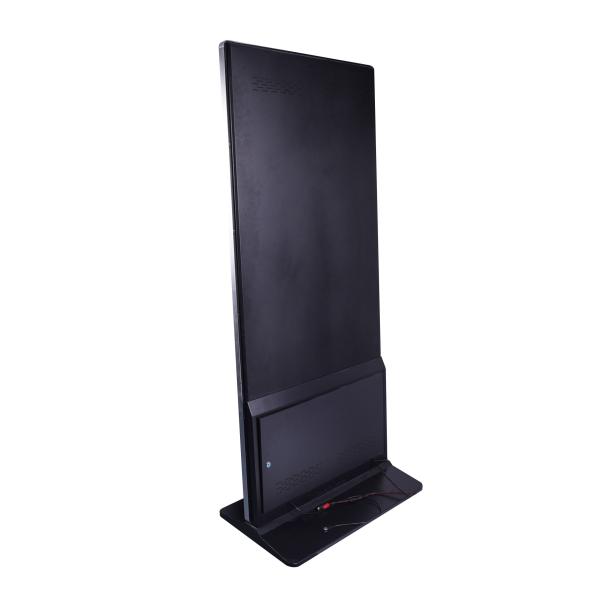

220V 100W Floor Standing Digital Signage SPCC Metal Case 178 Degree Viewing Angle
220V 100W Floor Standing Digital Signage SPCC Metal Case 178 Degree Viewing Angle
220V 100W Floor Standing Digital Signage SPCC Metal Case 178 Degree Viewing Angle
220V 100W Floor Standing Digital Signage SPCC Metal Case 178 Degree Viewing Angle
Specifications
Place of Origin :
Guangdong, China (Mainland)
Brand Name :
USER
Model Number :
US-AV42FAA
Price :
Negotiation
MOQ :
1 Unit/Units
Type :
TFT
Application :
Indoor
Panel Size :
42 inch
Max Resolution :
1920*1080
Viewing Angle :
178 degree
Pixel Pitch :
0.4845(H)*0.4845(V)
Color :
16.7M
Contrast Ratio :
16:9
Brightness :
400
Response Time :
5ms
Frequency :
56-75KHZ
Certificate :
ISO9001:2008,CCC,FCC,CE,Rohs ect.
Packaging Details :
Carton Box within PE Foam, wooden box
Delivery Time :
3-8 working days after delivery
Payment Terms :
T/T,L/C,Western Union,Paypal and MoneyGram
Supply Ability :
1000 Piece/Pieces per Week
Description

Supplier assessment 42" 46" 55" 65" Floor-standing LCD digital signage

Main Features

1. Apply the newest 4 G digital multimedia professor technologies, have excellent visual effect

2. Ultra-high-fidelity sound, pleasant stereo sound
3. Ultrathin and ultra-light hardware case, delicate and beautiful
4. Industrial grade paint technology, smooth and uniform, waterproof and dustproof, anti dust and mill!
5. Verity and complete software, stable and reliable
6. Have a lock, anti-theft functions
7. Widely used in the bus, building and lift room, supermarket, pubic places, train etc

8.LCD Digital signage management software we are provide .

Function :

1,Multi-groups of on/off time schedule could be setted remotely .
2,Display in random split screens, play videos in multi-windows, play different contents in different windows.
3,Rolling titles in English and Chinese version are available, various display modes for titles (Fonts and colors of letters, Background clolors, the relative attributes of rolling dirctions in horizontal or vertical could be adjusted).

4,Functions of controlling the playlist, displaying in order the programs and playing circularly.
5,Support uploading files through USB.
6,Intelligent system for arranging and playing programs, easy and fast operation.
7,Able to adjust the volume and switch on/off the units by remote controller.
8,Support displaying in dual screens, play different video files and audio contents in these two screens.

Specifications
Model No. US-AD420FLA
Panel size 42"
Display area(mm)/mode 930(W)×523(H) 16:9
Dimensions 1820X640x411.95(mm)
Maximum resolution 1920*1080
Display color 16.7M
Pixel Pitch(mm) 0.48(H)×0.48(V)
Brightness (nits) 400cd/m2
Contrast 6000:1
Visual angle 178°/178°
Response time 5ms
Life(hrs) >60,000(hrs)
Input and output
USB 1
SD 1
Speaker 2×5W (8Ω)
Video
Color system PAL/NTSC/SECAM
Remote controller IR Remote Controller
OSD display( screen menu display)
Menu language Chinese/English
Power
Power supply AC100~240V 50 /60 HZ
Maximum power consumption 100W
Standby power consumption <5W
Temperature
Working temperature 0°C~50°C
Storage temperature -20°C~60°C
Working humidity 85%
Storage humidity 85%
Appearance
Color/appearance White,black,customized
Case Metal case SPCC
Installation Floor-standing
Quality Standard ISO9001,CCC
Detailed functions
Support media format Video Format: MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI
Audio Format: Wave/MP3/WMA/AAC
Image Format: JPEG/BMP/TIFF/PNG/GIF
Document Format: TXT
Image resolution: 480P/720P/1080P
Main function Display mode : Full screen/split screen, horizontal /vertical screen
Play mode: Power on, single card auto loop play;classified files auto loop play; multi cards auto loop display etc
Timing open & close: Per day 5 times, 7 days a week, free time
Timing play: 7 days a week, free set the play program everyday
Encrypt CF card: Play the contents in the CF card before input the keyword
OTG: Support copy, delete, remove, rename, build new file among different cards
Running subtitle: Can set the play location, word size, color and back-color
Log files: Record the play time (concise to second), the play contents
Angle subscript display function: Can set the play time, just support BMP picture with biggest resolution 160*90
Memory function: Power off, memory the time of the play; power on, play from the time, not from beginning
Key and lock function: Use the remote controller before input the keyword
Encrypt CF card: Play the contents in the CF card before input the keyword
Sound volume: Can set the volume of sound in the different time
Storage card lock: Have a anti-theft lock in the case, equip 2 sets key
Upgrade software: Just put the upgrade file in the storage cards or through network

Application

Widely use for advertising promotion and information issue in shopping malls , hospitals,schools, suermarkets,banks,securities,hotels,commercial buildings,airports,stations,communication,public utilities, ect,

Trade terms:

1.Price: Price coveres cost of controller &software,based on FOB SHENZHEN

2.Lead time: Within 5-15working days after payment.

3.Payment terms:T/T,Western union,L/C. 30% Before production 70% Before delivery .

4.Delivery :DHL ,UPS door to door service , by sea,by air , etc. According to your require .

We provide servise:

1. Customized requirment special display of 5-82 inches according to customer need is available, OEM&ODM are welcome.

2. Reasonable and satisfactory solutions Provided to you by our professional engineers and staffs .

3. Warranty: one year overall unit ( Non-artificial damage )

Certificate:(FCC,CCC,CE,RoHs,ISO9001:2008,UL)
