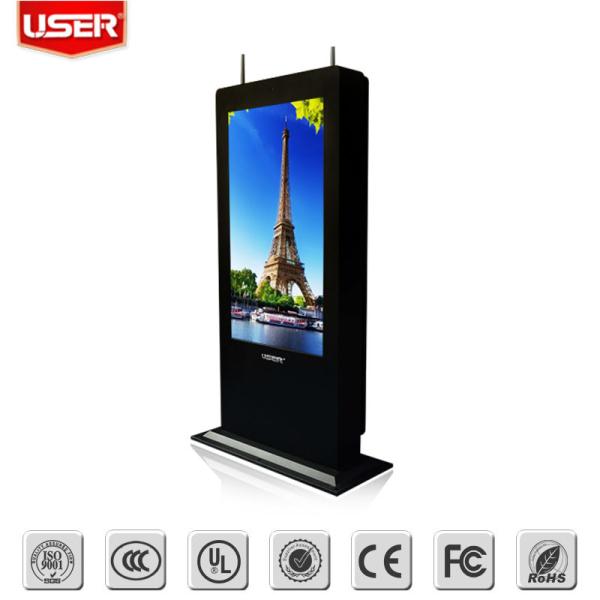

Full HD Digital Exterior Digital Signage / LCD Digital Signage Display
Full HD Digital Exterior Digital Signage / LCD Digital Signage Display
Full HD Digital Exterior Digital Signage / LCD Digital Signage Display
Full HD Digital Exterior Digital Signage / LCD Digital Signage Display
Full HD Digital Exterior Digital Signage / LCD Digital Signage Display
Full HD Digital Exterior Digital Signage / LCD Digital Signage Display
Specifications
Place of Origin :
Place of Origin
Brand Name :
Brand Name
Model Number :
Model Number
Price :
Negotiation
MOQ :
1 Unit/Units
Packaging Details :
Carton Box within PE Foam, wooden box
Delivery Time :
3-8 working days after delivery
Payment Terms :
T/T,L/C,Western Union,Paypal and MoneyGram
Supply Ability :
1000 Piece/Pieces per Week
Type :
TFT
Application :
Indoor
Max Resolution :
Max Resolution
Contrast Ratio :
Contrast Ratio
Brightness :
Brightness
Response Time :
Response Time
Input Voltage :
Input Voltage, 320W
Product name :
Outdoor Advertising Media Player
Description

55 inch Full HD Digital Signage indoor/Outdoor Advertising Media Player

Product Description

Outdoor Advertising Media Player

I. Main features

1.Patented LED backlight, the brightness can reach as high as 1500nits under strong sunlight (roughly 3 times of other standard products)
2.Broad working ambient temperature:-25°C to +45°C
3.The LCD screen can resist condensation in low temperature and humid environment
4. Outdoor all-weatherproof, dustproof designed + energy-saving air cooled structure

II. Technical Data Sheet

Model No. US-AD550LHK
Panel size 55″TFT-LCD
Display area(mm)/mode 1209.6mm(H) x 680.4mm(V) 16:9
Maximum resolution 1920*1080
Display color 1.073G(10bits/color)
Pixel Pitch(mm) 0.21mm(H) x 0.63mm(V) (mm)
Brightness (nits) 800cd/m*m
Contrast 4000:1
Visual angle 178°/178°
Response time 6.5ms
Life(hrs) >60,000(hrs)
Touch Panel
Specification Infrared touch
Positioning
accuracy		 ±2mms
Transmittance 92%
Hardness 7H
Click manner double point/mult-point(optional)
Response time 10ms
Output Resolution 4096X4096
Life time Single point of more
than 600 million times
Input and output
VGA input 2
CVBS input 2
YPbPr input 1
TV 1
HD 4
USB2.0 6
LAN 1
PC Audio 1
Audio(L/R) input 1
Audio(L/R) output 1
Thermal printer 1
Speaker 2×10W(8 ohm)
Video
Color system PAL/NTSC/SECAM
Remote controller Special
OSD display( screen menu display)
Menu language Chinese/English
Computer
Main chipset Intel H61
CPU Intel I3-3220 3.1GHz
System bus frequency 800/1066/1333 MHz
Graphics card Integrated
Audio card Integrated AC97
Network card Integrated 10/100/1000M adaptive
Memory DDRIII 2G (max to 4G)
Hard Disk 32G SATA (max to 1 TB)
WIFI Yes
Bluetooth Optional
Operation system Windows/Linux
Power
Power supply AC100~240V 50 /60 HZ
Maximum power consumption 3600W
Standby power consumption <5W
Temperature
Working temperature 0℃~50℃
Storage temperature -20℃~60℃
Working humidity 85%
Storage humidity 85%
Waterproof grade Outdoor IP34
Temperature control Air cooling(Fans)
Appearance
Panel color/appearance White, black, customized
Panel material Metal case SPCC
Installation flood-standing/wall mounted
Pricing(EXW Shenzhen)
Detailed functions
Video format MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI
Audio format Wave/MP3/WMA/AAC
Image format JPEG/BMP/TIFF/PNG/GIF
Image resolution 480P/720P/1080P
Split screen display Editable
Running subtitle

location, word size, color and backlight are editable
Packaging & Shipping

1.Payment term : T.T 30% payment before production,the 70% balance should be paid shipment after inspection.
2.Warranty: 12 months warranty .lifetime maintainance.
3.RMA policy: customer bear all the freight and duty charge to factory,and the factory afford retum freight charge.

4.Remark: ROHS, CE & FCC certificates in e-file format are available.
5.MOQ: 1pc, sample order are welcome for your evaluation.
