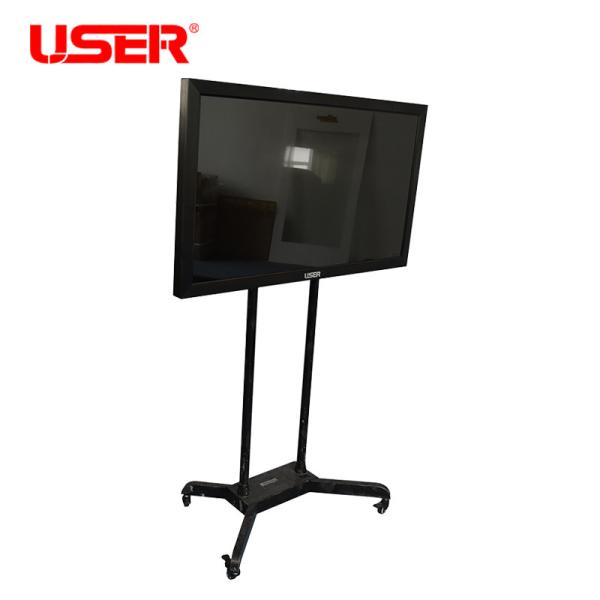

65'' touch screen whiteboard, 3G, WIFI, free software
Metal cabinet
24*7 continuous durable
Widely used in Airports
Outdoor advertisements
Clubs
Digital Signage Retail
Restaurants
Teaching room
Meeting rooms
Shopping Malls
Railway stations
Telecommunications, etc.
Specifications |
|
Model No. |
US-TH6502WP |
Panel size |
65" TFT-LCD All new A+ panel, LED backlight |
Display area(mm)/mode |
1508.0 x 878.0mm 16:9 |
Maximum resolution |
1920×1080 |
Display color |
16.7M |
Pixel Pitch(mm) |
0.744(H)×0.744(V) |
Brightness (nits) |
500nits |
Contrast |
5000:1 |
Visual angle |
178°/178° |
Response time |
6ms |
Horizontal frequency |
50-70KHZ |
Vertical frequency |
56-75KHZ |
Life(hrs) |
60,000(hrs) |
Touch Panel |
|
Specification |
Infrared touch |
Positioning accuracy |
±2mms |
Transmittance |
92% |
Hardness |
7H |
Click manner |
double point |
Response time |
10ms |
Output Resolution |
8192*8192 |
Life time |
more than 600 million times |
Input and output |
|
VGA |
2 |
CVBS |
2 |
YPbPr |
1 |
TV |
1 |
HD |
4 |
USB2.0 |
2 |
USB3.0 |
4 |
LAN |
1 |
PC Audio |
1 |
Audio(L/R) input |
1 |
Audio(L/R) output |
1 |
Speaker |
2×10W(8 ohm) |
Video |
|
Color system |
PAL/NTSC/SECAM |
Compatible HD input/DVI |
480P,576P,720P,1080I,1080P |
3D Comb filter |
Yes |
Video reduction noise |
Yes |
OSD display( screen menu display) |
|
Menu language |
Chinese/English |
Computer |
|
Main chipset |
Intel H61 |
CPU |
Intel I3-2100 3.1G |
System bus frequency |
800/1066/1333 MHz |
Graphics card |
Integrated |
Audio card |
Integrated AC97 |
Network card |
Integrated 10/100/1000M adaptive |
Memory |
4G DDRIII |
Hard Disk |
320G SATA |
WIFI |
Included |
Bluetooth |
Optional |
Original Window OS |
Optional |
Power |
|
Power supply |
AC100V~240V,50/60Hz |
Maximum power consumption |
400W |
Standby power consumption |
3W |
Temperature |
|
Working temperature |
0°C~50°C |
Storage temperature |
-10°C~60°C |
Working humidity |
20%~80% |
Storage humidity |
5%~95% |
Appearance |
|
Cabinet color/appearance |
White, black, customized |
Cabinet material |
SPCC/Aluminum/Customized |
Installation |
Floor-standing |
