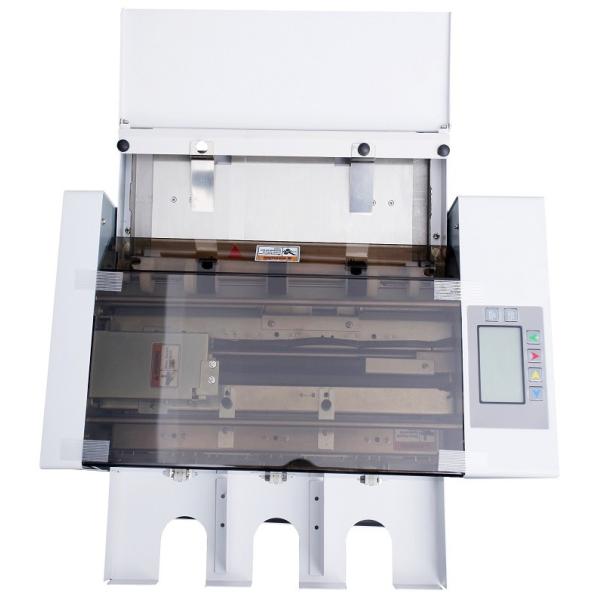

Compact Size Commercial Business Card Cutter Space Saving Easy Operation
Compact Size Commercial Business Card Cutter Space Saving Easy Operation
Compact Size Commercial Business Card Cutter Space Saving Easy Operation
Compact Size Commercial Business Card Cutter Space Saving Easy Operation
Specifications
Brand Name :
VICUT
Model Number :
BC220
Certification :
CE,BV,SGS,TUV
Place of Origin :
China
Product name :
Business Card Cutter
Feed method :
Dual friction feed
Cutting speed :
50 sec / 100 sheets
Paper thickness :
0.25mm (180g/m²) - 0.35mm (350g/m²)
Control system :
Servo
Power supply :
AC 110~220V, 50/60HZ, 0.5A
MOQ :
1SET
Price :
negotiable according to order quantity
Packaging Details :
Plywooden case
Delivery Time :
7-15 working days upon payment
Payment Terms :
50% deposit, payoff balance before shipping
Supply Ability :
300sets/month
Description

Fully automatic A4 size business card cutter for cutting name cards

Quick Detail:

The Vicut Card Cutter BC220 AND BC330 works along with any digital printer and digital photocopier, professionally cut cards automatically, easily and fast. Using a pre-set program,it can cut custom size business cards, post cards, compliment cards, entrance tickets, photos, and so on.

This cutter with classical and tasteful design, the transverse knife is made of imported superior brushless motor , supporting super long time work and will guarantee the cutting of one million pieces of papers.
1. Compact size, space-saving, easy operation.
2. Motherboard possesses full intelligence CPU control system, advanced SMT process and incomparable quality and performance.
3. Efficient and fast, such as: A3, 50sec/100sheets,
4. Accuracy, the electric eye can detect the position for cutting, precision 100%.

Specifications:

Model BC220 BC330
Paper Size

A4, A4+,

or (195~216)mmx(279~297)mm,

with unlimited length

A3, A3+, SRA3,

or (297~320)mmx(420~480)mm,

with unlimited length
Weight

Net weight: 14.8 kgs

Gross weight: 19 kgs

Net weight: 19.8 kgs

Gross weight: 24 kgs
Machine dimension

Unpacked: 46x54x26mm

With package: 50x40x38cm

Unpacked: 50x62x26mm

With package:65x48x35cm

Cutting Method

 Longitudinal: cut by self sharpening slitting cassette
Horizontal: cutting with a lateral cutter, cut by lateral guillotine cutte
Cutting Position Control Front edge detection SmartMark (Cut Registration Mark) detection
Paper feeding method Dual roller auto-paper feeding tray
Paper thickness 0.25mm (180g/m²) - 0.35mm (350g/m²)
Paper Capacity Max.12 sheets (0.35mm thickness) or total thickness 3mm
Output tray card capacity 180g/m² 90×3 (pcs), 350g/m² 70×3 (pcs)

Cutting size

 Longitudinal: (89/85/90/95)mm, or customized
Horizontal: (45/50/54)mm, or (1~600)mm, fully adjustable
Cutting speed 8 seconds per SRA3 / 96 seconds for 250 business cards (85 x 55mm)
Cutting accuracy ±0.05mm
Humidity 35%~70%
Operating temperature -15℃~ +40℃
Power supply AC 110~220V, 50/60HZ, 0.5A

Competitive Advantage:

1. Cutting cassette for creasing is optional.

2. Cutting cassette for dotted lineoptional.

3. Cutting different size cards on one sheet.

Details

Transparent cover with auto power cut off.

Compact Size Commercial Business Card Cutter Space Saving Easy Operation

User-friendly control panel

Compact Size Commercial Business Card Cutter Space Saving Easy Operation

Applications:

Business cards, post cards, compliment cards, entrance tickets, photos, and so on.

1. Fast cutting speed. Cuts 250 x cards from SRA3 sheets in approximately 96 seconds!

2. Fixed or custom card sizes with a selection of interchangeable cassettes. Different options for cutting width 85mm, 89mm, 90mm, 95mm.

3. Suitable for A3+, SRA3,A3 and A4 paper sheet sizes, capable for cutting different business cards sizes all over the world.

4. Cuts up to 350gsm.
