Roller Ultrasonic Hardness Tester , 3N Motorized Probe Portable Hardness Testing Equipment
Roller Ultrasonic Hardness Tester , 3N Motorized Probe Portable Hardness Testing Equipment
Roller Ultrasonic Hardness Tester , 3N Motorized Probe Portable Hardness Testing Equipment
Roller Ultrasonic Hardness Tester , 3N Motorized Probe Portable Hardness Testing Equipment
Roller Ultrasonic Hardness Tester , 3N Motorized Probe Portable Hardness Testing Equipment
Roller Ultrasonic Hardness Tester , 3N Motorized Probe Portable Hardness Testing Equipment
Roller Ultrasonic Hardness Tester , 3N Motorized Probe Portable Hardness Testing Equipment
Roller Ultrasonic Hardness Tester , 3N Motorized Probe Portable Hardness Testing Equipment
Specifications
Brand Name :
Sinowon
Model Number :
SU-320R
Certification :
CE
Place of Origin :
Dongguan/China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pieces 30days
Delivery Time :
15days
Packaging Details :
Carton
Name :
Roller Ultrasonic Hardness Tester
Model :
SU-320R
Code :
882-141R
Standard Probe :
3N Motorized Probe
Hardness range :
HV:100-1500
Scales :
VickersHV ; Rockwell HRA、HRB、HRC; Brinell HB
Description

Roller Ultrasonic Portable Hardness Tester SU-320R 3N Motorized Probe HV 100-1500

Roller Ultrasonic Hardness Tester SU-320R 882-141R

Introduction:

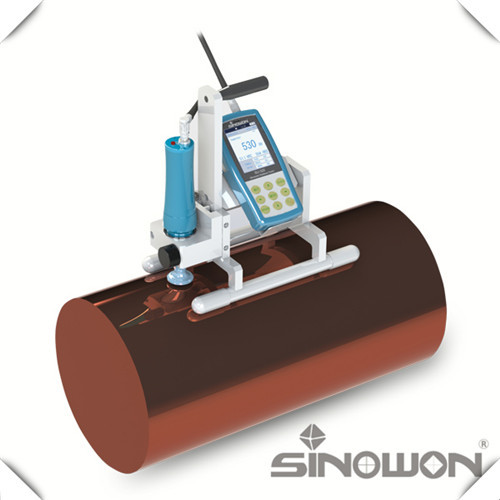

SU-320R is used to determine hardness of chrome which painted on rotogravure cylinders with simple, fast and accurately method. Hardness test in Vickers have the advantage that are supposed to be non-destructive as the lasting surface indentation is microscopically small.

Highlighting Characteristics:

  1. Perfect Accuracy——±3% HV, ±1.5HR, ±3%HB.
  2. Microscopic Indentation—— Only high-power microscope can observe the indentation.
  3. Quick Measurement——Result in 2 seconds.
  4. Large LCD Display——Directly display measurement result, times count, maximum, minimal, average and deviation.
  5. Friendly Operation——Operate well after short training.
  6. Promised Warranty——2-Year warranty for main unit (Excludes Probe).
  7. Mass Storage——Save 1000 groups measurement data.
  8. Simple Calibration——Save 20 groups calibration data for invoking, improve calibration efficiency.

SU-320R Technical Specifications:

Name Roller Ultrasonic Hardness Tester
Model SU-320R
Code 882-141R
Standard Probe 3N Motorized Probe
Hardness range HV:100-1500; HRC:20-68
Accuracy Scale ﹤250HV 250~500HV 500~800Hv ﹥800HV
HV0.3 ±3% ±3% ±3% ±3%
Display Scales Vickers(HV)； Rockwell(HRA,HRB,HRC); Brinell(HB)；)
Display 3.2“ Color LCD
Statistics Hardness value, Max, Min, Average, hardness conversion and Test Mode
Language Chinese,English, German, Portuguese, Turkish
Data Output Wireless Bluetooth
Printing Bluetooth Printer
Memory To save 1000-groups of measuring data and 20-groups of calibration data
Word input Letters and numerals
Working Environment Temperature: -10°C to 50°C ; Humidity :30%-80% R.H.
Battery Voltage Rechargeable lithium battery ; Voltage :4.2V, 4800mAh
Re-charger Voltage AC220V/50Hz, 110V/60Hz
Main unit Dimension and Weight Main unit Dimension :160 x 80 x 30mm (L x W x H);Manual Probe:Φ22×153mm ; Weight(No Probe): 0.5Kg
Packing Dimension and Weight Packing Dimension 320 x 430 x 155mm (L x W x H) ; Packing Weight (Standard Delivery)4.3Kg

SU-320R Standard Delivery:

Product Name Code # Product Name Code # Product Name Code #
Instrument Main Body 882-141R 3N Motorized Probe 882-221 Anti Vibration Case 882-901
Testing Stand MU-200 Probe Cable 882-801 Screw 882-951
USB Re-charger 882-851 COM Cable 882-810 Operation Manual SU-300M
Qualification Certificate SU-300R Testing Stand MU-200 Warranty Card SU-300M

Roller Ultrasonic Hardness Tester , 3N Motorized Probe Portable Hardness Testing Equipment

Roller Ultrasonic Hardness Tester , 3N Motorized Probe Portable Hardness Testing Equipment
