Specifications
Brand Name :
Sinowon
Model Number :
AutoVision 432
Certification :
CE
Place of Origin :
Dongguan, China
MOQ :
1set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
20 work days
Packaging Details :
1380x1170x1910mm
Measurement Accuracy :
XY-axis: < 2+L/200(um); Z-axis: <5+L/200(um)
Resolution :
0.0001mm
Repeatability :
2um
Guidance Mode :
Imported H grade Linear Guide, Double-Track Double Slider Guide
Operation Mode :
Joystick controller, Mouse operation, automatic detection program
Video System :
1/2'' color CCD Camera; 6.5X Automatic Zoom Lens; Optical Magnification: 0.7X-4.5X, Video Magnification: 20X-129X(21.5'' monitor)
Illumination :
LED Parallel Contour Illumination; 5-ring 8-division 0-255 grade continue adjustable
X/Y- axis Travel :
400x300mm
Z-axis Travel :
200mm
Weight :
650kg
Description

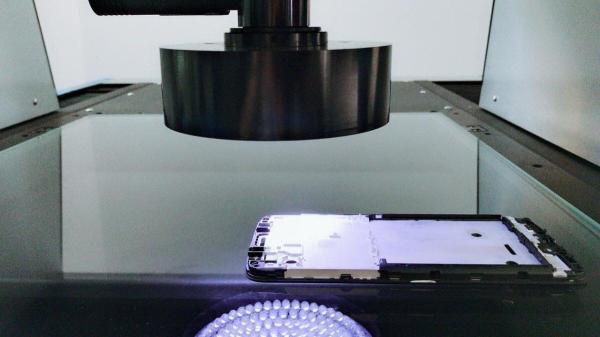

High Precision Vision Measurement System Applied In 3c Industries / Hardwares


Characteristics:

1.Moving gantry structure, measurement workpiece is fixed;

2.Four-axis CNC fully auto close loop control, auto measurement;

3.“00” grade “JINANQING”marble base and pillar, stable and reliable;

4.Imported open type linear scale, resolution is 0.1um, high accuracy, great stability;

5.Imported P grade linear guide,, precision grinding ball screw and AC servo motor, ensure accuracy stability of system position

6.Imported high definition color industry camera, ensure clear observation and stable measurement requirement;

7.6.5X continue auto zoom lens, precision auto zoom, only need to make pixel calibration once time;

8.Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;

9.With imported non-contact laser sensor, realize thickness and flatness and other measurement;

10.With proprietary fully auto measuring software iMeasuring 5.0, powerful function, simple operation;

11.Optional touch probe, coaxial illumination and other accessory, it can also be customized according to customer request;

12.Optional FexQMS Measuring Data Analysis and Real-time monitoring software which enhance program control and reduce material consumption.


Specification:

Product Name Auto Laser Scan Vision Measuring Machine
Model AutoScan 432
Code# 520-121
X/Y-axis Travel(mm) 400x300mm
Z-axis Travel(mm) 200mm

X/Y/Z 3-axis

Linear Scale(mm)

 High precision linear scale,resolution:0.0001mm
Guidance Mode Precision linear guide,double-track double slider guide
Operation Mode Joystick controller, Mouse operation, automatic detection program
Measurement Accuracy XY-axis:≤2+L/200(um)
Z-axis:≤5+L/200(um)
Repeatability ±2um
Video System 1/3" Color CCD Camera
6.5X auto zoom lens
6.5X auto zoom lens; optical magnification: 0.7X-4.5X; video magnification:20X~129X(21.5”monitor)
Illumination Contour LED Parallel Contour Illumination
Surface 5-ring 8-division 0~255 grade continue adjustable
Software System iMeasuring 5.0 Fully Auto Measuring Software
Load Capacity 30Kg
Working Environment Temperature 20℃±2℃,Humidity Range<2℃/hr,Humidity 30~80%,Vibration<0.002g,<15Hz
Power 220V/50Hz/10A
Dimension 1160x800x1650mm
Packing Dimension 1380x1170x1910mm
Weight(Kg) 650Kg

* L is measuring length,unit is mm, the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece.

* * Magnification is approximate value, it is related to the dimension of monitor and resolution.

Customers can choose 0.5X or 2X optional objective, and realize image magnification: 10X~64.5X or 40X~258X.
