200mm Z- axis Travel Vision Measuring Projector 6.5X Detented Zoom Lens Changable
200mm Z- axis Travel Vision Measuring Projector 6.5X Detented Zoom Lens Changable
200mm Z- axis Travel Vision Measuring Projector 6.5X Detented Zoom Lens Changable
200mm Z- axis Travel Vision Measuring Projector 6.5X Detented Zoom Lens Changable
200mm Z- axis Travel Vision Measuring Projector 6.5X Detented Zoom Lens Changable
200mm Z- axis Travel Vision Measuring Projector 6.5X Detented Zoom Lens Changable
Specifications
Brand Name :
SINOWON
Model Number :
VP-300
Certification :
CE
Place of Origin :
DongGuan China
MOQ :
1 set
Supply Ability :
100 sets per month
Delivery Time :
15 days
Packaging Details :
Plywood
Model :
VP-300
Code# :
511-340
X/Y-axis Travel(mm) :
200×100
Z-axis Travel :
200mm
Accuracy :
≤3+L/200(um)
Repeatablitily :
±2um
Operation Mode :
Manual(with auto edge detection)
Video Device :
1/3＂ color CCD camera,0.7～4.5x Detented zoom lens
Screen Dimension :
19＇LCD touch screen monitor
Video Magnification :
30X～190X(it can extend to 15X～380X)
Working Distance :
92mm
Measuring Software :
Quick Measuring 2.0
Max.Load Capacity :
10Kg
Suitable Environment :
Workshop and Metrology room
Power supply :
AC110V/60Hz,AC220V/50Hz
Dimension(D×W×H) :
760×650×1760mm
Net Weight :
150Kg
Description

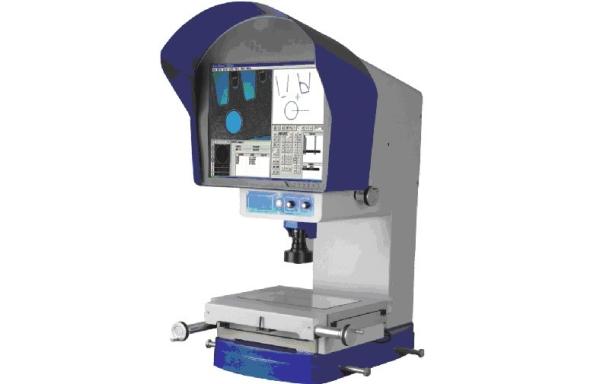

200mm Z- axis Travel Vertical Video Projector , Video Measuring Machine

Characteristics :

1) Solid framework,large LCD touch screen and advanced QM2.0 software ;

2) High quality optics for crisp and clear images ;

3) Adjustable LED surface and contour illumination ;

4) High resolution industrial CCD camera ;

5) 6.5X Detented zoom lens changable within the range of 30-190x magnification ;

6) Easy to operate user interface ;

7) Extended function of printing,saving and exporting data ;

8) Excel,word or txt multi-format report output,and DXF input and output ;

9) Non-contact optical height measurement ;

10) Automatic edge-detecting function ;

11) Make Save and input the program ;

12) Map photo and measurement ;

13) Dimension lable function ;

14) SPC statistical function ;

Specifications:

Model

VP-2010

VP-2515

VP-3020

Code#

541-201

541-211

541-221

X/Y-axis Travel(mm)

200×100

250×150

300×200

Z-axis Travel

200mm

Accuracy

≤3+L/200(um)

Repeatablitily

±2um

Operation Mode

Manual(with auto edge detection)

Video Device

1/3＂ color CCD camera,0.7～4.5x Detented zoom lens

Screen Dimension

19'' LCD touch screen monitor

Video Magnification

30X ～ 190X ( it can extend to 15 X ～380 X )

Working Distance

92mm

Measuring Software

Quick Measuring 2.0

Max.Load Capacity

10Kg

Suitable Environment

Workshop and Metrology room

Power supply

AC110V / 60Hz , AC220V / 50Hz

Dimension(D×W×H)

760 × 650 × 1760mm

Net Weight

150Kg

Standard Delivery:

Product Name

Code#

Product Name

Code#

Product Name

Code#

Measuring Software

581-111

Color CCD Camerav

484-131

Detented Zoom Lens

421-111

Calibration Block

581-801

Capture Card 7130

527-131

Working Cupboard ST 04

581-641

19＂LCD Touch Screen

581-971

Built-in PC System

581-961

Operation Manual

VP Series
