Obverse Image Optical Digital Profile Projector 200x100mm Stage Travel Ø300mm
Obverse Image Optical Digital Profile Projector 200x100mm Stage Travel Ø300mm
Obverse Image Optical Digital Profile Projector 200x100mm Stage Travel Ø300mm
Obverse Image Optical Digital Profile Projector 200x100mm Stage Travel Ø300mm
Obverse Image Optical Digital Profile Projector 200x100mm Stage Travel Ø300mm
Obverse Image Optical Digital Profile Projector 200x100mm Stage Travel Ø300mm
Obverse Image Optical Digital Profile Projector 200x100mm Stage Travel Ø300mm
Obverse Image Optical Digital Profile Projector 200x100mm Stage Travel Ø300mm
Specifications
Brand Name :
SINOWON
Model Number :
VP300-2010Z
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Supply Ability :
100 sets per month
Delivery Time :
10 days
Packaging Details :
Plywood, 780x530x1150mm
Metal Stage Size :
350x170mm
Stage Travel: X and Y-axis :
200x100mm
Accuracy :
≤3+L/200(um)
Gross/Net weight :
220/170kg
Stage Travel: Z-axis :
100mm (for focusing)
Digital Readout :
DP 300 (561-301) Multifunctional Data Processing System
Power Supply :
AC110V/60Hz; 220V/50Hz,650w
Dimension(L×W×H) :
780x530x1150mm
Packing Dimension :
990x765x1340mm
Description

Obverse Image Vertical Optical Profile Projector 200x100mm Stage Travel Ø300mm

Technical Specifications:

Reverse Image　　　VP300-2010
Obverse Image　　　P300-2010Z
Metal Stage Size　　　350x170mm
Glass Stage Size　　　246x120mm
Stage Travel: X and Y-axis　　　200x100mm
Stage Travel: Z-axis　　　100mm (for focusing)
Accuracy　　　≤3+L/200(um)
Resolution of X and Y-scale　　　0.0005mm
ScreenDiameter :Ø312mm,Effective Range ≥ Ø300(with “* ” Reticle)
Rotary Range: 0~360° ; Resolution Rotary Indicator: 1’ or 0.01°
Digital ReadoutDP 300 (561-301) Multifunctional Data Processing System
IlluminationSurface and Contour Illumination:24v/150w halogen lamp (adjustable);
Cooling SystemForced Cooling (3-axis-fans)
Power SupplyAC110V/60Hz; 220V/50Hz,650w
Dimension(L×W×H)　　　780x530x1150mm
Packing Dimension　　　990x765x1340mm
Gross/Net weight　　　220/170kg



Standard Delivery:

Product Name

Code #

Product Name

Code #

Product Name

Code #

Digital Readout DP400

510-340

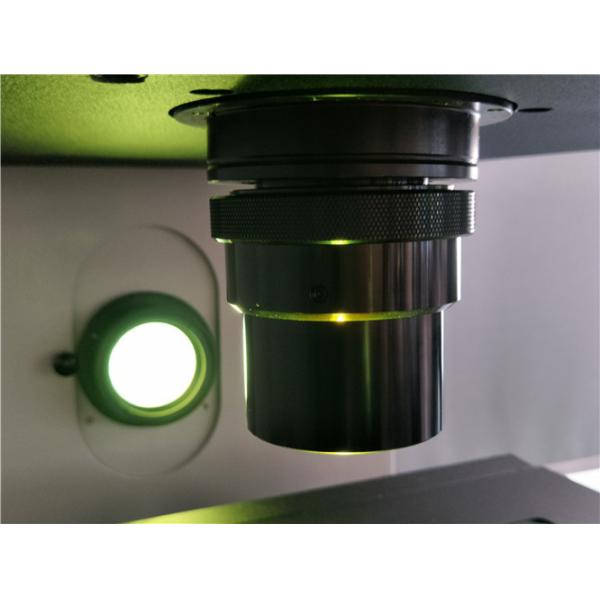

10x Objective

511-W11

Screen Clamp Device

581-341

Built-in Mini-printer

581-901

Transmitted lens

511-T11

Operation Manual

VT12



Product Features :

300mm diameter screen with digital protractor;

Double steel guide for stage lifting focus system;

Halogen profile and surface illumination adjustable;

Geometric multifunctional data processing system upgrade to DRO DP400;

Built-in Mini-printer;

Available 10x,20x,50x,100x objective, rotary table, edge detector, etc.


Optional Accessories:

Product Name

Code #

Product Name

Code #

Product Name

Code #

Measuring Software

581-101

Rotary Table RT1

581-511

Rotary Table RT2

581-521

20x Objective

511-W21

50X Objective

511-W31

Holder Clamp

581-841

V-shape Clamp

581-831

Swivel Center Support

581-851

Working Cupboard ST 02

581-621

Over-Chart ST 140

581-311

Foot-Switch ST 150

581-351

Printer Paper

581-911

Edge Detector SED-300

581-301

Standard Block ST120

581-801
