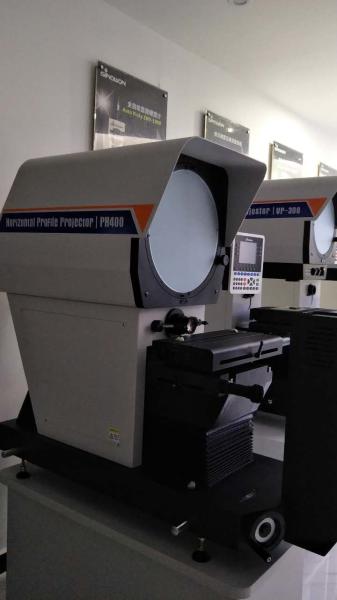

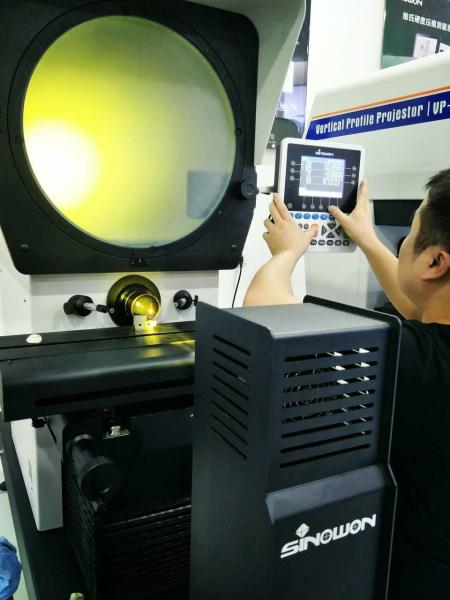

Horizontal Digital Profile Projector Optical Comparator with DRO DP300 Widely Used in Electronic, Rubber Industry
Horizontal Digital Profile Projector Optical Comparator with DRO DP300 Widely Used in Electronic, Rubber Industry
Horizontal Digital Profile Projector Optical Comparator with DRO DP300 Widely Used in Electronic, Rubber Industry
Horizontal Digital Profile Projector Optical Comparator with DRO DP300 Widely Used in Electronic, Rubber Industry
Horizontal Digital Profile Projector Optical Comparator with DRO DP300 Widely Used in Electronic, Rubber Industry
Horizontal Digital Profile Projector Optical Comparator with DRO DP300 Widely Used in Electronic, Rubber Industry
Horizontal Digital Profile Projector Optical Comparator with DRO DP300 Widely Used in Electronic, Rubber Industry
Horizontal Digital Profile Projector Optical Comparator with DRO DP300 Widely Used in Electronic, Rubber Industry
Horizontal Digital Profile Projector Optical Comparator with DRO DP300 Widely Used in Electronic, Rubber Industry
Horizontal Digital Profile Projector Optical Comparator with DRO DP300 Widely Used in Electronic, Rubber Industry
Specifications
Brand Name :
SINOWON
Model Number :
PH400-3015
Certification :
CE
Place of Origin :
DongGuan
MOQ :
1 set
Supply Ability :
100 sets per month
Delivery Time :
15 days
Packaging Details :
Plywood
Stage Travel: X and Y-axis :
300x150mm
Stage Travel:Y-axis :
75mm (for focusing)
X and Z Linear Resolution :
0.0005mm
Dimension (D×W×H) :
1160x600x960mm
Packing Dimension (L×W×H) :
1300x880x1250mm
Instrument Gross/Net Weight :
200/160kg
Description

Horizontal Digital Profile Projector Optical Comparator with DRO DP300 Widely Used in Electronic, Rubber Industry ​


Product Features:

1) 400mm diameter screen with digital protractor;

2) 300x150mm precision movement work-stage, 300x200mm optional;

3) Work-stage sway range between ±15°;

4) Halogen profile and fiber surface illumination adjustable;

5) Geometric multifunction data processing system DRO DP300;

6) Built-in Mini-printer;

7) Available 10x,20x,50x, objective rotary table and foot-switch, etc.


Technical Specifications:

Reverse Image

PH400-3015(#512-401)

Obverse Image

PH400-3015Z(#512-421)

Metal Stage Size

408x126mm

Stage Travel: X and Y-axis

300x150mm

Stage Travel:Y-axis

75mm (for focusing)

X and Z Linear Resolution

0.0005mm

Sway Range

±15°

Accuracy

≤3+L/200(um)

Screen

Diameter :Ø425mm,Effective Range ≥ Ø400(with “* ” Reticle)

Rotary Range: 0~360° ; Resolution Rotary Indicator: 1’ or 0.01°

Digital Readout

DP 300 (561-301) Multifunctional Data Processing System

Illumination

Contour illumination:24v/150w (halogen Lamp )

Surface illumination:21v/150w (Optical Fiber)

Power Supply

AC110V/60Hz; 220V/50Hz,650w

Dimension (D×W×H)

1160x600x960mm

Packing Dimension (L×W×H)

1300x880x1250mm

Instrument Gross/Net Weight

200/160kg



Standard Delivery:

Product Name

Code #

Product Name

Code #

Product Name

Code #

Digital Readout DP300

561-301

PH400-10x Objective

512*W11

Screen Clamp Device

581-341

Built-in Mini-printer

581-901

Power Cable

581-921

Operation Manual

PH400-3015



Optional Accessories:

Product Name

Code #

Product Name

Code #

Product Name

Code #

Measuring Software

581-101

Working Cupboard ST 02

581-621

Standard Block ST-120

581-801

PH400-20x Objective

512*W21

PH400-50X Objective

512*W31

Over-Chart ST 140

581-311

Holder Clamp

581-841

V-shape Clamp

581-831

Swivel Center Support

581-851

Rotary Vise SRV-01

582-104

Printer Paper

581-911

Foot-Switch ST 150

581-351
