10XObjective 10X Eyepiece Digital Measuring Microscope Werkzeugmachermikroskop With 0.5um Moving Resolution
10XObjective 10X Eyepiece Digital Measuring Microscope Werkzeugmachermikroskop With 0.5um Moving Resolution
10XObjective 10X Eyepiece Digital Measuring Microscope Werkzeugmachermikroskop With 0.5um Moving Resolution
10XObjective 10X Eyepiece Digital Measuring Microscope Werkzeugmachermikroskop With 0.5um Moving Resolution
10XObjective 10X Eyepiece Digital Measuring Microscope Werkzeugmachermikroskop With 0.5um Moving Resolution
10XObjective 10X Eyepiece Digital Measuring Microscope Werkzeugmachermikroskop With 0.5um Moving Resolution
Specifications
Brand Name :
SINOWON
Model Number :
SMM-1050
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Supply Ability :
100 sets per month
Delivery Time :
10 days
Packaging Details :
Plywood, 210×333×391mm, Carton
Metall Stage Size :
252×252mm
Resolution :
0.5um
Measuring Accuracy :
≤5um
Gross/Net Weight :
30Kg/25Kg
Measuring Device :
Digital Readout DP300
Max.Height of Specimen :
115mm
Max.Weight of Specimen :
5Kg
Description

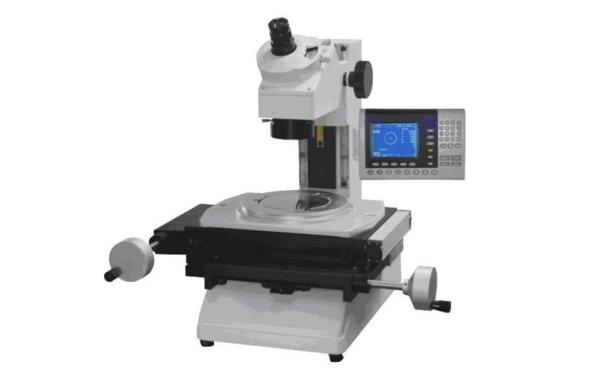

10X Objective 10X Eyepiece Digital Measuring Microscope Werkzeugmachermikroskop With 0.5um Moving Resolution

Characteristics:

  • Precision working stage travel:100 x50mm；
  • Digital moving resolution : 0.5um；
  • Multifunctional digital readout : DP300；

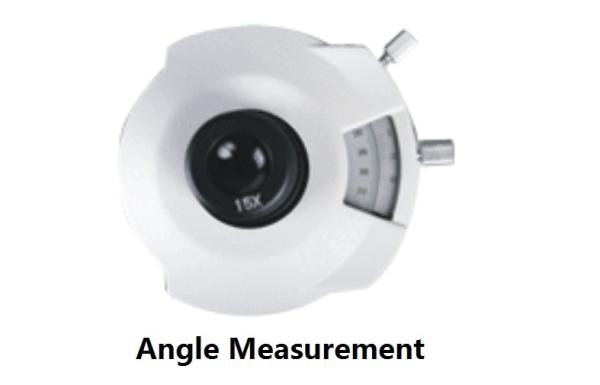

  • Angle measurement device : mechanical wheel and digital angle measurement；
  • Standard magnification : 30×(Φ0.13mm)(15×Eyepiece+2×Objective)；
  • 10×Objective, 10×Objective ,10× Eyepiece available；
  • Video upgrade system:Cross-shaped video assistance measuring device are available；
  • Adjustable ring LED illumination；

10XObjective 10X Eyepiece Digital Measuring Microscope Werkzeugmachermikroskop With 0.5um Moving Resolution

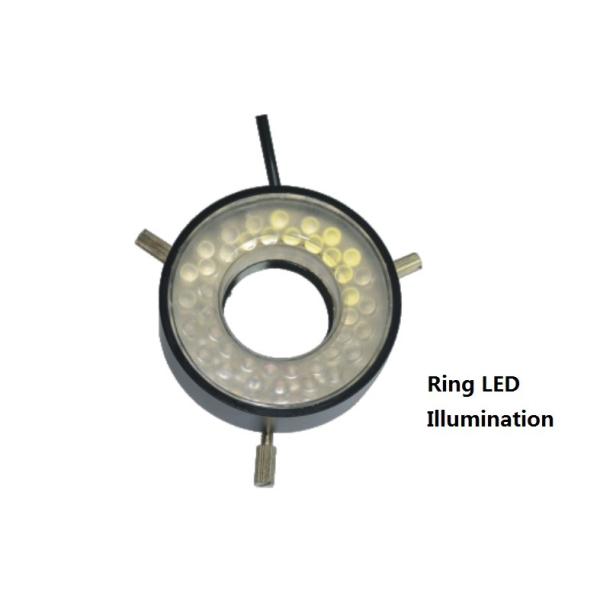

Ring LED Illumination

Specifications:

Model SMM-1050
Code# 531-142
Metall Stage Size 252×252mm

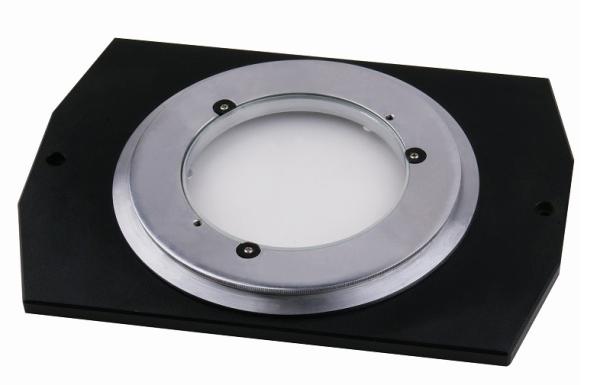

Glass Stage Size 196×96mm
Resolution 0.5um
Measuring Accuracy ≤5um
Measuring Device Digital Readout DP300
Max.Height of Specimen 115mm
Max.Weight of Specimen 5Kg
Max.Magnification 150×(Φ0.13mm)(15×Eyepiece+10×Objective)
Min.Magnification 20×(Φ6.5mm)(10×Eyepiece+2×Objective)
Standard Magnification 30×(Φ0.13mm)(15×Eyepiece+2×Objective)
Standard Working Distance 67mm
Optical Tube Monocular with 30°depression angle
15×Eyepiece with Crossline Reticle
Eyepiece WF15/13
Objective Magnification:2×
Working Distance:2.638"(67mm)
Eyepiece Protractor Range 360°
Eyepiece Protractor Graduation 1°
Vernier angle reading 6’
Contour Illumination Light source:Tungsten bulb(24V;2W)
Surface Illumination Ring LED illumination brightness adjustable
Power Supply AC110V/60Hz;220V/50Hz
Dimension(D×W×H) 415×315×420mm
Packing Dimension(D×W×H) 210×333×391mm
Gross/Net Weight 30Kg/25Kg

Standard Delivery:

Product Name

Code#

Product Name

Code#

Product Name

Code#

15×Eyepiece

531-522

2×Objective

531-602

Ring LED illumination

413-146

Linear Scale

581-201

Power Cable

581-921

Operation Manual

SMM-1050
