Programmable Temperature and Humidity Test Chamber simulates a full range of temperature

and humidityconditions to test reliability, durability, climatic, freezing resistance, quality assurance,

thermal endurance etc.

QTH-80A Application:

1, Electronics, electrical appliances, sensors

2, Semiconductor, PCB, LCD & LED

3, Medicals tests

4, Mechanical, Military, aerospace products

5, Vehicles, Transport, automobile supply industries

6, Chemicals, Petrochemical industries

7, Building materials, Plastics, Textile industries

8, Testing metal related industries like plating etc.

9, Instrumentation

Features:

1.Chamber exterior material is stainless steel with environmentally baking paint resists corrosion

and provides impact resistance. Interior material is SUS304# stainless steel with excellent heat

resistance and easy to clean.

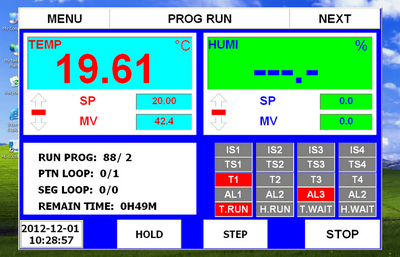

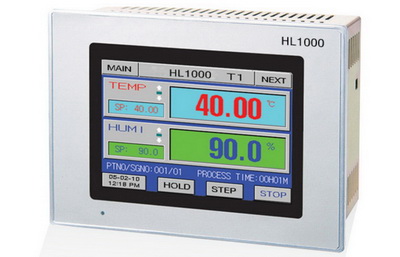

2, HL-1000 touch screen controller is designed to save chamber programming and setup time

with temperature limit and alarm to protect your product.

3. Safety relay connection is provided to protect your device under test by removing power to it

when the chamber is not running.

4, RS232 communications is for computer connection, programming can be set on computer

by software, monitor testing process and automatically execute power on/off functions.

5, Fog free viewing window and interior light makes viewing workspace freely and observe

the test under best conditions.

6, Adjustable product shelf slides out for easier product access. Shelf design is non-tipping

and supports large product loads.

7, Left side of chamber with diameter 50mm cable port for power-on test.

8, Optional electronic humidity sensor is used on all test chambers for accuracy and minimal

maintenance.

QTH series products conform following standards:

IEC68-2-1 (GB-2423.1-2008) Testing A: Low temperature testing method

IEC68-2-2 (GB-2423.2-2008) Testing B: High temperature testing method

MIL-STD-202F (GJB360.8-87) High temperature life testing

MIL-STD-810D (GBJ150.3) High temperature method

MIL-STD810D (GBJ150.4) Low temperature method

IEC68-2-3 (GB2423.3-93) Testing Ca: Constant moist heat testing method.

IEC68-2-30 (GB2423.4-93) Testing Db: Alternate moist heat testing method.

MIL-STD-810D (GJB150.9-93) Moist heat testing method

Optional Accessories:

Cable Port: Size of cable port is available for Ф100mm

Water purifier RO 80: Continuously provide purified water for humidifying heater and wet-bulb

Dehumidifier: The rotation regenerating dehumidifier M-120 ensures precise control of low humidity (10C, 15%RH) for electrostatic reliability tests.

Defrosting Device: The chamber automatically detects and melts the frost on the evaporator

when operating below 0℃ in order to allow continuous operation

Electronic humidity sensor: Precision Humidity Sensor with stainless steel protection tube

Chamber Dimensions:

Specifications:

Note: 1, The performance values are no specimen inside the test area.

2, At 20℃ ambient temperature, relative humidity 65%rh, rated voltage

3, According to IEC60068-3-5:2001 and IEC60068-3-6:2001

4, The above specifications are for reference only.
