Multi-Languages Rockwell Hardness Tester with Touch Screen Support Blue Tooth Printing
Multi-Languages Rockwell Hardness Tester with Touch Screen Support Blue Tooth Printing
Multi-Languages Rockwell Hardness Tester with Touch Screen Support Blue Tooth Printing
Multi-Languages Rockwell Hardness Tester with Touch Screen Support Blue Tooth Printing
Multi-Languages Rockwell Hardness Tester with Touch Screen Support Blue Tooth Printing
Multi-Languages Rockwell Hardness Tester with Touch Screen Support Blue Tooth Printing
Multi-Languages Rockwell Hardness Tester with Touch Screen Support Blue Tooth Printing
Multi-Languages Rockwell Hardness Tester with Touch Screen Support Blue Tooth Printing
Specifications
Brand Name :
Sinowon
Model Number :
Vexus SHR-150D
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets/month
Delivery Time :
10 days
Packaging Details :
Plywood
Preliminary Test Force :
10Kgf (98.07N)
Test Force :
60kgf(558.4n),100kgf(980.7n),150kgf(1471n)
Dwell Time :
Adjustable 1-60s
Hardness Display :
5.2inch Touch Screen
Resolution :
0.1HR
Force Loading :
Auto Loading/Dwell/Unloading
Data Output :
Optional Blue Tooth Mini Printer
Max. Height of Specimen :
175mm
Throat :
165mm
Power Supply :
AC 220V/50Hz;AC110V/60Hz
Description

Multi-Languages Rockwell Hardness Tester with Touch Screen Support Blue Tooth Printing

Characteristics:

* Half automatic hardness tester except loading initial force and change force knob. Operation is very

convenient and fast.

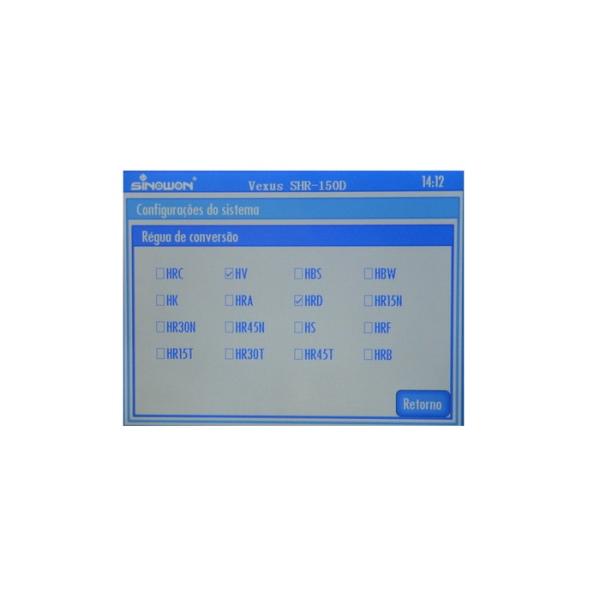

* Color touch screen, displays loading force, indenter type, dwell time, and conversion scale.

* Motorized control loading, dwell and unloading, eliminates error by manual operation.

* Built-in micro processor auto compute max, min, mean and deviation value, resolution is 0.1HR, largely

improve accuracy.

* Auto hardness conversion to others scales, no need to check table and improve working efficiency.

* Support Multiple languages, English, Turkish, German, etc. Convenient for local customers operation.

* With 2000 single testing results and 1000 group results. Reviewing results and analysis.

* Optional blue tooth mini printer is available.

Multi-Languages Rockwell Hardness Tester with Touch Screen Support Blue Tooth Printing


Application:

Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.

Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, and other materials harder than B100.

Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.

Multi-Languages Rockwell Hardness Tester with Touch Screen Support Blue Tooth Printing

Technical Specification:

Product Name

Color Touch Screen Digital Rockwell Hardness Tester

Model

Vexus SHR-150D

Code#

811-171

Rockwell Scales

HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK,

HRL,HRM,HRP,HRR,HRS,HRV

Preliminary Test Force

10Kgf(98.07N) Permitted Error:±2.0%

Test Force

60Kgf(588.4N),100Kgf(980.7N),150Kgf(1471N)

Permitted Error:±1.0%

Dwell Time

Adjustable 1-60s

Hardness Indication

5.2” Touch Screen, Resolution:640x480

Resolution

0.1HR

Loading Control

Auto Loading/Dwell/Unloading

Hardness Conversion

HRC,HV,HBS,HBW,HK,HRA,HRD,HR15N,HR30N,

HR45N,HS,HRF,HR15T,HR30T,HR45T,HRB

Conversion Standards

ASTM,DIN

Language Option

Chinese, English, German, Portuguese, Turkish, Czech, Korean

Correction Range

-3.0HR to +3.0HR, Step 0.1HR

Data Memory

2000 Single Measuring Result, Curve Analysis, Results

Reviewing And Analysis

Data Output

Optional Blue Tooth Mini Printer

Max. Height Of Specimen

175mm

Instrument Throat

165mm

Power supply

AC220V/50Hz;AC110V/60Hz

Dimension(LxWxH)

520 x 215 x 700mm

Packing Dimension

630 x 440 x 960mm

Gross/Net Weight

120Kg/90Kg

Execution Standard

GB/T230.2, JJS Z2245, EN-ISO6508, ASTME-18

Multi-Languages Rockwell Hardness Tester with Touch Screen Support Blue Tooth Printing

Standard Delivery:

Product Name

Code#

Product Name

Code#

Instrument Main Body

811-171

Ø1.588mm Ball Indenter

811-411

Hardness Block (57-70) HRC

811-641C

Ø1.588mm Steel Ball

811-421

Hardness Block (20-33) HRC

811-611C

Cone Diamond Indenter

811-401

Hardness Block (85-100) HRB

811-641B

Weight A

811-741

Ø 150mm Flat Anvil

811-541

Weight B

811-751

Ø 60mm Flat Anvil

811-521

Weight C

811-761

Ø 40mm V-shape Anvil

811-511

Power Cable

811-801

Accessories Box

811-901

Instrument Manual

Vexus SHR-150D
