SMM-1050 Digital Toolmaker Measuring Microscope with 0.5um Resolution Multifunctional Digital Readout
SMM-1050 Digital Toolmaker Measuring Microscope with 0.5um Resolution Multifunctional Digital Readout
SMM-1050 Digital Toolmaker Measuring Microscope with 0.5um Resolution Multifunctional Digital Readout
SMM-1050 Digital Toolmaker Measuring Microscope with 0.5um Resolution Multifunctional Digital Readout
Specifications
Brand Name :
SINOWON
Model Number :
SMM-1050
Certification :
CE
Place of Origin :
DongGuan China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
100 sets per month
Delivery Time :
15 days
Packaging Details :
Plywood
Metall Stage Size :
252×252mm
Glass Stage Size :
196×96mm
Resolution :
0.5um
Measuring Accuracy :
≤5um
Measuring Device :
Digital Readout DP300
Max.Height of Specimen :
115mm
Max.Weight of Specimen :
5Kg
Max.Magnification :
150×（Φ0.13mm）（15×Eyepiece+10×Objective）
Min.Magnification :
20×（Φ6.5mm）（10×Eyepiece+2×Objective）
Standard Magnification :
30×（Φ0.13mm）（15×Eyepiece+2×Objective）
Standard Working Distance :
67mm
Optical tube :
Monocular with 30°depression angle , 15×Eyepiece with Crossline Reticle
Power Supply :
AC110V/60Hz;220V/50Hz
Dimension(D×W×H) :
415×315×420mm
Packing Dimension(D×W×H) :
210×333×391mm
Eyepiece :
WF15/13
Eyepiece Protractor Range :
360°
Objective :
Magnification:2×
Vernier angle reading :
6’
Contour Illumination :
Light source:Tungsten bulb(24V;2W)
Surface Illumination :
Ring LED illumination brightness adjustable
Description
SMM-1050 Digital Toolmaker Measuring Microscope with 0.5um Resolution Multifunctional Digital Readout

SMM-1050 Digital Toolmaker Measuring Microscope with 0.5um Resolution Multifunctional Digital Readout


Characteristics:

  • Precision working stage travel:100 x100mm；
  • Digital moving resolution : 0.5um；
  • Multifunctional digital readout : DP300；

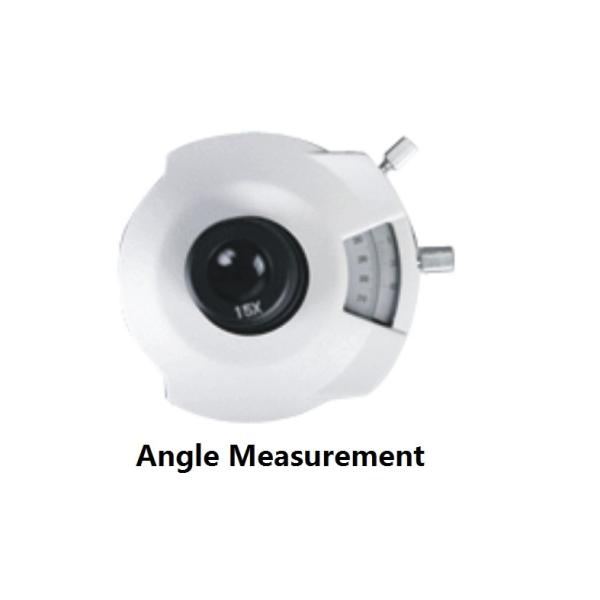

  • Angle measurement device : mechanical wheel and digital angle measurement；
  • Standard magnification : 30×(Φ0.13mm)(15×Eyepiece+2×Objective)；
  • 10×Objective, 10×Objective ,10× Eyepiece available；
  • Video upgrade system:Cross-shaped video assistance measuring device are available；
  • Adjustable ring LED illumination；


Specifications:

Model

SMM-1050

Code#

531-142

Metall Stage Size

252×252mm

Glass Stage Size

196×96mm

Resolution

0.5um

Measuring Accuracy

≤5um

Measuring Device

Digital Readout DP300

Max.Height of Specimen

115mm

Max.Weight of Specimen

5Kg

Max.Magnification

150×(Φ0.13mm)(15×Eyepiece+10×Objective)

Min.Magnification

20×(Φ6.5mm)(10×Eyepiece+2×Objective)

Standard Magnification

30×(Φ0.13mm)(15×Eyepiece+2×Objective)

Standard Working Distance

67mm

Optical tube

Monocular with 30°depression angle

15×Eyepiece with Crossline Reticle

Eyepiece

WF15/13

Objective

Magnification:2×

Working Distance:2.638"(67mm)

Eyepiece Protractor Range

360°

Eyepiece Protractor Graduation

1°

Vernier Angle Reading

6’

Contour Illumination

Light source:Tungsten bulb(24V;2W)

Surface Illumination

Ring LED illumination brightness adjustable

Power Supply

AC110V/60Hz;220V/50Hz

Dimension(D×W×H)

415×315×420mm

Packing Dimension(D×W×H)

210×333×391mm

Gross/Net Weight

30Kg/25Kg



Standard Delivery:

Product name

Code#

Product name

Code#

Product name

Code#

15×Eyepiece

531-522

2×Objective

531-602

Ring LED Illumination

413-146

Linear Scale

581-201

Power Cable

581-921

Operation Manual

SMM-1050





SMM-1050 Digital Toolmaker Measuring Microscope with 0.5um Resolution Multifunctional Digital Readout

SMM-1050 Digital Toolmaker Measuring Microscope with 0.5um Resolution Multifunctional Digital Readout
