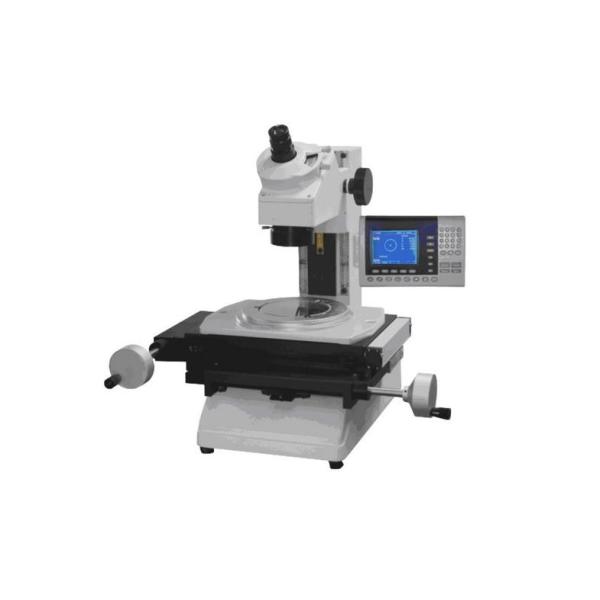

SMM-1050 0.5um Moving Resolution Digital Measuring Microscope With 10XObjective 10X Eyepiece
SMM-1050 0.5um Moving Resolution Digital Measuring Microscope With 10XObjective 10X Eyepiece
SMM-1050 0.5um Moving Resolution Digital Measuring Microscope With 10XObjective 10X Eyepiece
SMM-1050 0.5um Moving Resolution Digital Measuring Microscope With 10XObjective 10X Eyepiece
SMM-1050 0.5um Moving Resolution Digital Measuring Microscope With 10XObjective 10X Eyepiece
SMM-1050 0.5um Moving Resolution Digital Measuring Microscope With 10XObjective 10X Eyepiece
Specifications
Brand Name :
SINOWON
Model Number :
SMM-1050
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Supply Ability :
100 sets per month
Delivery Time :
10 days
Packaging Details :
Plywood, 210×333×391mm, Carton
Metall Stage Size :
252×252mm
Resolution :
0.5um
Measuring Accuracy :
≤5um
Gross/Net Weight :
30Kg/25Kg
Measuring Device :
Digital Readout DP300
Max.Height of Specimen :
115mm
Max.Weight of Specimen :
5Kg
Description
SMM-1050 0.5um Moving Resolution Digital Measuring Microscope With 10XObjective 10X Eyepiece

SMM-1050 0.5um Moving Resolution Digital Measuring Microscope With 10XObjective 10X Eyepiece

Characteristics:

  • Precision working stage travel:100 x50mm；
  • Digital moving resolution : 0.5um；
  • Multifunctional digital readout : DP300；
  • Angle measurement device : mechanical wheel and digital angle measurement；
  • Standard magnification : 30×(Φ0.13mm)(15×Eyepiece+2×Objective)；
  • 10×Objective, 10×Objective ,10× Eyepiece available；
  • Video upgrade system:Cross-shaped video assistance measuring device are available；
  • Adjustable ring LED illumination；

SMM-1050 0.5um Moving Resolution Digital Measuring Microscope With 10XObjective 10X Eyepiece

Ring LED Illumination

Specifications:

Model SMM-1050
Code# 531-142
Metall Stage Size 252×252mm
Glass Stage Size 196×96mm
Resolution 0.5um
Measuring Accuracy ≤5um
Measuring Device Digital Readout DP300
Max.Height of Specimen 115mm
Max.Weight of Specimen 5Kg
Max.Magnification 150×(Φ0.13mm)(15×Eyepiece+10×Objective)
Min.Magnification 20×(Φ6.5mm)(10×Eyepiece+2×Objective)
Standard Magnification 30×(Φ0.13mm)(15×Eyepiece+2×Objective)
Standard Working Distance 67mm
Optical Tube Monocular with 30°depression angle
15×Eyepiece with Crossline Reticle
Eyepiece WF15/13
Objective Magnification:2×
Working Distance:2.638"(67mm)
Eyepiece Protractor Range 360°
Eyepiece Protractor Graduation 1°
Vernier angle reading 6’
Contour Illumination Light source:Tungsten bulb(24V;2W)
Surface Illumination Ring LED illumination brightness adjustable
Power Supply AC110V/60Hz;220V/50Hz
Dimension(D×W×H) 415×315×420mm
Packing Dimension(D×W×H) 210×333×391mm
Gross/Net Weight 30Kg/25Kg

Standard Delivery:

Product Name

Code#

Product Name

Code#

Product Name

Code#

15×Eyepiece

531-522

2×Objective

531-602

Ring LED illumination

413-146

Linear Scale

581-201

Power Cable

581-921

Operation Manual

SMM-1050
