Instant optical Measurement System，300mmX200mmX70mm
Instant optical Measurement System，300mmX200mmX70mm
Instant optical Measurement System，300mmX200mmX70mm
Instant optical Measurement System，300mmX200mmX70mm
Instant optical Measurement System，300mmX200mmX70mm
Instant optical Measurement System，300mmX200mmX70mm
Instant optical Measurement System，300mmX200mmX70mm
Instant optical Measurement System，300mmX200mmX70mm
Instant optical Measurement System，300mmX200mmX70mm
Instant optical Measurement System，300mmX200mmX70mm
Specifications
Brand Name :
Hoyamo
Model Number :
IVS-327
Certification :
CE
Place of Origin :
Dongguan/China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 piece per week
Delivery Time :
30days
Packaging Details :
Carton
Description

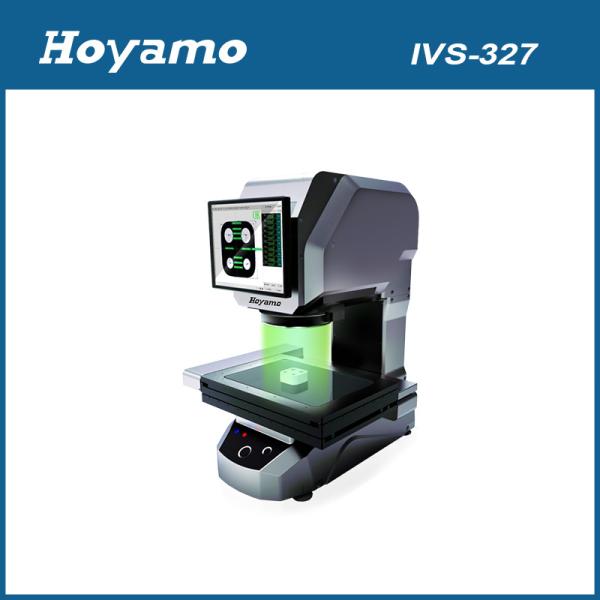

Instant optical Measurement System

IVS-327

Instant optical Measurement System，300mmX200mmX70mm

Introduction

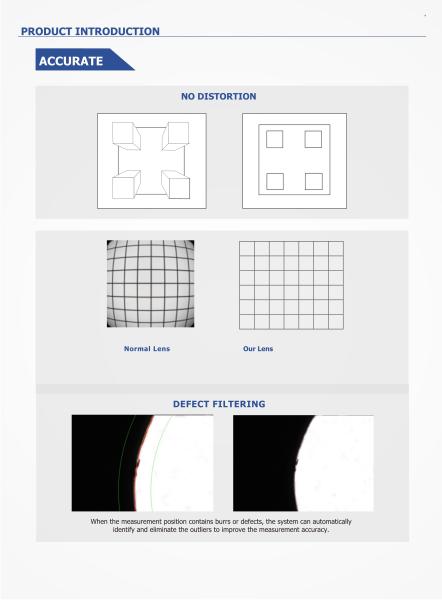

Instant Vision Measurement System IVS-327 usus Dual Telecentric High Resolution Optical Lens, combines high precision image analysis algorithm, and adopts One-Touch Measuring Principle. Under CNC Mode, only to press the start-button, the system can instantly automatically according to the shape of parts recognize the measuring object, match the template, build measuring evaluation and report, completing One Button instant precision measurement.

Advantage

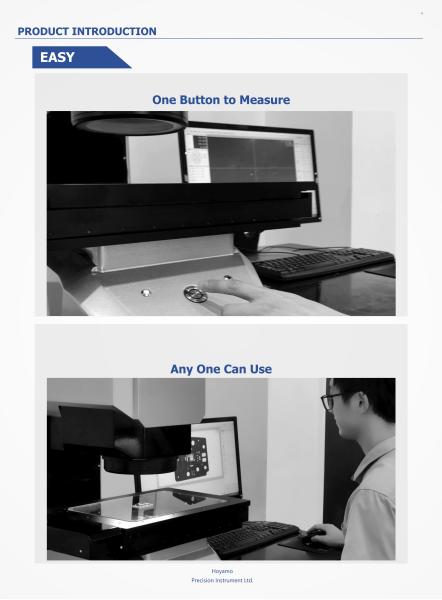

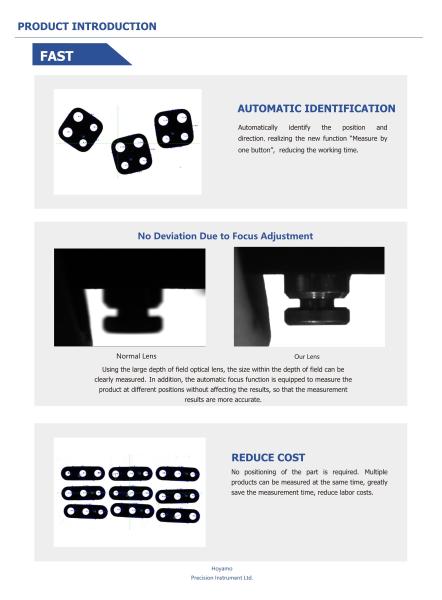

  • Fast Measurement: One button can measure the products in the field of vision.
  • Easy Operation: The software interface is simple and easy to understand, and anyone can get accurate test results.
  • Auto-Management: The measurement results are automatically saved when the measurement is completed, and the test report can be generated by clicking the button.

Specification

Model IVS-867 IVS-227 IVS-327
Measurement Range X 80mm 200mm 300mm
Y 60mm 200mm 200mm
Z 70mm 70mm 70mm
FOV High Precision 18.3mm x 13.7mm
Large Field 80mm x 60mm
Repeatability High Precision ±1μm
Large Field ± 2.5μm
Mini. Unit 0.1μm
Accuracy High Precision Without Stitching ±2 μm
With Stitching 4+L/50μm
Large Field Without Stitching ±5 μm
With Stitching 7+L/50μm
Weight 40KG 50KG
Optic System Camera 1200M Pixel
500M Pixel
Lens Dual Telecentric Lens
Profile illumination White Light
Transmission illumination Green Light
Loading Capacity 5KG
System AI-Image (Self-Developed)
Power Supply 220V±10%,50Hz
Working Environment

Temperature: 20±3℃, Humidity: 30-80%,

Vibration: ＜0.002g,15HZ
Dimension 310x625x748 422x625x748 523x625x748
