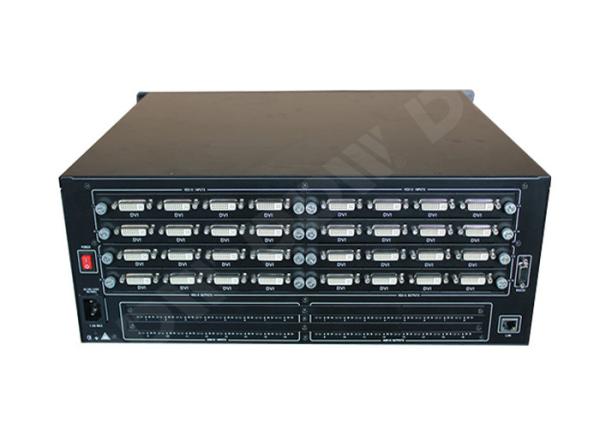

High brightness lcd screen video wall matrix controller support 144ch or more Signal outpu
High brightness lcd screen video wall matrix controller support 144ch or more Signal outpu
Specifications
Place of Origin :
SHENZHEN,CHINA
Brand Name :
DDW
Certification :
CE,CB
Model Number :
DDW-VPHXXXX
MOQ :
1 pcs
Price :
Negotiable
Packaging Details :
Double layer carton pack
Delivery Time :
3working days upon payment
Payment Terms :
T/T,L/C,Western Union,Alibaba Trade Assurance
Supply Ability :
1000pcs/month
Description

RS232,IP Control method Video Wall Controller support 144ch or more Signal output

Introduction:

1. Modular design, plug-in structure,can be combined free assembled depending on the application

2. Standard rack structure , industrial-grade chassis system design

3. Support for DIV,HDMI,VGA,RJ45,3G-SDI,Video(CVBS) multi-signal input formats

4. Support DIV and 3G-SDI signal output

5. Input and output resolution maximum support 1920×1080,can be backward compatible with 1080P and 720P formats

6. Video signal 4 split screen display, mult-port video signal can be displayed simultaneously

High brightness lcd screen video wall matrix controller support 144ch or more Signal outpu

Video and Image Processing :

1. Any Rectangular Video Wall Configuration can be supported. Screen order can be configured
2. Inputs/windows can be resized, layered and positioned across screen boundaries
3. Inputs/windows can be displayed in correct aspect ratio,stretched to fit,in full screen mode,or zoomed in to emphasize details
4. Input sources can be cropped to remove the edge pixels and lines
5. Dual-Link DVI Input (capture) cards support 4K resolution or a customizable resolution. Any source can be captured

Technical Specifications
Model series With CBD No CBD
Function description 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional) HDMI/DVI/VGA/AV/YPbPr
Input resolution 1024x768~1080p,commonly used resolutions
Output signal format DVI/VGA/AV/YPbPr/HDMI(DVI-HDMI converter)
Output resolution Up to 1920x1200/60HZ
System control software Special control software
Power Supply Redundant power supply 110-220VAC, 50/60Hz
Consumption 12W/channel
Working temperature -20°C——60°C
Working Humidity 5-95%
Case specification 4U/6U/10U/15U standard rackmount chassis
Serial Control Interface RS-232,9-pin female, Type-D
Baud Rate 115200
Pin configuration 2=TX,3=RX,5=GND
Ethernet control interface RJ-45 female, TCP/IP
Ethernet control speed Auto 10M or 100M,Full-duplex or half-duplex
Working time 365 x 7 x 24hrs
Technical specification of input/output connectors
VGA/RGB input Input: 15pin HD D-Sub, female
Sync mode: HV independent sync
Color Depth: 32bit/pixel
Resolution: 640 x 480/60HZ—1920 x1200/60HZ
Input impedance :75Ω
Video input Input connector: BNC
Detecting: full-format auto detecting
Input impedance :75Ω
VGA or DVI output Resolution:1024 x 768/60HZ-1920 x 1200/60HZ
Color depth: 32bit/pixel
Output impedance:75Ω
Physical properties of input/output connectors
Signals Connectors Type
Composite VIDEO input BNC female
VGA input 15 pin HD D-Sub female
VGA output 15 pin HD D-Sub female
DVI output 24+5 or 24+1 standard female
AUX RS-232 9-pin D-Sub female
Main RS-232 9-pin D-Sub female

High brightness lcd screen video wall matrix controller support 144ch or more Signal outpu

High brightness lcd screen video wall matrix controller support 144ch or more Signal outpu
