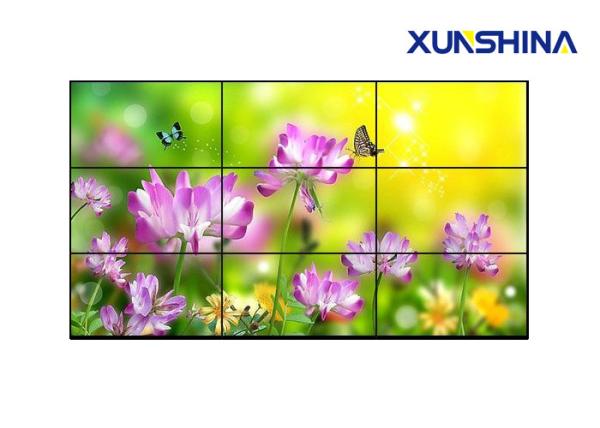

Excellent Ultra Narrow Bezel Seamless HD 3x3 Video Wall Screens 700cd/m²
Excellent Ultra Narrow Bezel Seamless HD 3x3 Video Wall Screens 700cd/m²
Excellent Ultra Narrow Bezel Seamless HD 3x3 Video Wall Screens 700cd/m²
Excellent Ultra Narrow Bezel Seamless HD 3x3 Video Wall Screens 700cd/m²
Specifications
Brand Name :
XUNSHINA
Model Number :
XS460-4600HD-SNH3
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
4pcs
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
3000pcs per month
Delivery Time :
3-7 working days after payment
Packaging Details :
Inner package: honeycomb carton with EPE foam full covering, Outer package: 4 in 1 plywood case
Product Name :
LCD video wall screens
Bezel Width :
3.5mm (gap in 2 screens)
Brightness :
700cd/m²
Viewing Angle :
178° / 178°
Contrast :
3000:1 Typ.
Response Time :
<8ms
Application :
Indoor
Pixel Pitch :
0.630x0.630
Description

LED Backlight 3x3 46 inch Nearly Seamless Video Wall with Bezel 3.5mm

Full HD resolution, image display more nature and smooth

Features

1) Can be controlled via the big screen for each terminal server software system independent implementation of content playback,schedule management ,multi-screen control ,instant messaging and so easy to operate.

2) Full HD display, native resolution1920x1080

3) Interface type: VGA, DVI and HDMI connected analog signal and digital high-definition signal

4) Professional panels special for lcd video wall

5) High Brightness 700cd/㎡

6) LED light source, save power

Specifications

Model No. XS460-4600HD-SNH3

LCD

 Size 46" Samsung panel
Resolution 1920(H)x1080(V)
Pixel pitch 0.53025(H)x0.53025(V)
Backlight LED
Brightness(typical) 700cd/m²
Contrast 3000 : 1
Viewing angel (H/V) 178° / 178°
Color depth 16.7M
Response time <8ms
Display area 1018.08(H)×572.67(V)
Bezel 3.5mm

Interface

 CVBS In / Out (BNC ) 1/1
VGA In / Out 1/0
DVI In / Out 1/0
HDMI In/Out 1/0
DEBUG(USB) 1/0
Control IR remote control Yes
RS-232 In/Out 1/2

Physical parameter

 Dimension 1021.98mm(W) x576.57mm(H) x121.7mm(D)
Frame color Black
Frame material Metal
Net weight 18.6Kg

Power

 Power consumption ≦190W
Standby <1W
Power supply AC 100V-240V, 50/60Hz,Universal,±10%

Environment

 Operating humidity 20-90% RH(no condensation)
Storage humidity 10-90% RH (no condensation)
Operating temperature 0 ~ 50° C / 32 ~ 122° F
Storage temperature -20 ~ 60° C / -4 ~ 140° F

Accessory

 Standard accessories Power cable, User manual, Warranty card, Quality certificate
Optional accessories Wall mounted brackets, floor stand brackets, cabinet
*design and specifications are subject to changes without prior notice

Application of LCD Video Wall
1. Education and Conference System
2. Safety Monitoring System of Mining and Energy Industry
3. Commercial Industry
Used in the display terminal of commercial industry, such as advertising, media, product presentations
4. Financial Industry
Used in the information display terminal of financial industry, such as stock and security market. .
5. Transportation Industry
Used in the information display terminal of transportation industry, such as airports, ports, metro, highway.
6. Management and Control System
Used in the display terminal of management and control system such as fire-fighting, meteorology, maritime, food prevention, transportation hub
