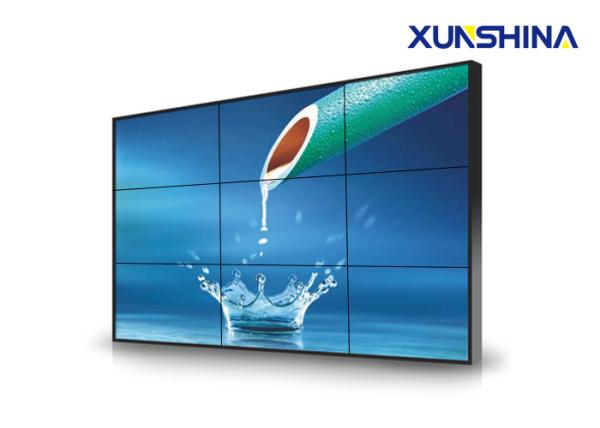

3x3 LCD TV Wall 55 Inch Multi Screen Video Wall With BOE Panel 5.3mm Bezel
3x3 LCD TV Wall 55 Inch Multi Screen Video Wall With BOE Panel 5.3mm Bezel
3x3 LCD TV Wall 55 Inch Multi Screen Video Wall With BOE Panel 5.3mm Bezel
3x3 LCD TV Wall 55 Inch Multi Screen Video Wall With BOE Panel 5.3mm Bezel
Specifications
Brand Name :
XUNSHINA
Model Number :
XS460-5500HD-BNL
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
4pcs
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
3000pcs per month
Delivery Time :
3-7 working days after payment
Packaging Details :
Inner package: honeycomb carton with EPE foam full covering, Outer package: 4 in 1 plywood case
Panel brand :
BOE
Gap :
5.3mm
Brightness :
500cd/m2
Product weight :
30kg
Dimension :
1215.5mm(W) x686.3mm(H) x129.2mm(D)
Product name :
LCD TV Wall
Description

3x3 LCD TV Wall 55 inch LCD Video Wall with BOE Panel 5.3mm Bezel

Description of LCD Video Wall

Screens specifically designed for use in video walls usually have narrow bezels in order to minimize mullion, the gap between active display areas, and are built with long-term serviceability in mind. Such screens often contain the hardware necessary to stack similar screens together, along with connections to daisy chain power, video, and command signals between screens. A command signal may, for example, power all screens in the video wall on or off, or calibrate the brightness of a single screen after bulb replacement.

Features:

1. Start time less than 8 ms;
2. No risk of virus infection, ensuring excellent security;
3. Integrate multi-channel video signal types: HDMI, DVI, VGA, CVBS (composite video);
4. Composite video can be looped out;
5. Embedded 3D video bright separation circuit unit;

Specifications

Model No. XS460-5500HD-BNL

LCD

 Size 55" BOE panel
Resolution 1920(H)x1080(V)
Pixel pitch 0.630(H)x0.630(V)
Backlight LED
Brightness(typical) 500cd/m²
Contrast 3500 : 1
Viewing angel (H/V) 178° / 178°
Color depth 16.7M
Response time <8ms
Display area 1209.6(H)×680.4(V)
Bezel 5.3mm

Interface

 CVBS In / Out (BNC ) 1/1
VGA In / Out 1/0
DVI In / Out 1/0
HDMI In/Out 1/0
DEBUG(USB) 1/0
Control IR remote control Yes
RS-232 In/Out 1/2

Physical parameter

 Dimension 1215.5mm(W) x686.3mm(H) x129.2mm(D)
Frame color Black
Frame material Metal
Net weight 30Kg

Power

 Power consumption ≦200W
Standby <1W
Power supply AC 100V-240V, 50/60Hz,Universal,±10%

Environment

 Operating humidity 20-90% RH(no condensation)
Storage humidity 10-90% RH (no condensation)
Operating temperature 0 ~ 50° C / 32 ~ 122° F
Storage temperature -20 ~ 60° C / -4 ~ 140° F

Accessory

 Standard accessories Power cable, User manual, Warranty card, Quality certificate
Optional accessories Wall mounted brackets, floor stand brackets, cabinet
* design and specifications are subject to changes without prior notice

Applications:

1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.

2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.

3. Financial Institution: Bank, Insurance company, etc.

4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.

5. Public Service: Hospital, School, Telecom, Post office, etc.

6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.
