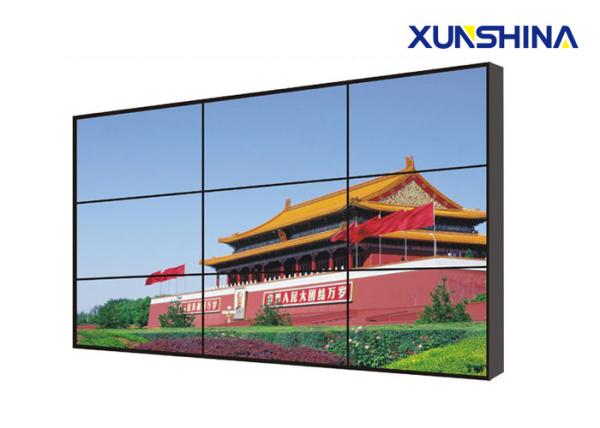

Wall Mounted 55 Inch Super Thin Bezel Lcd Screen Wall 3x3 High Contrast
Wall Mounted 55 Inch Super Thin Bezel Lcd Screen Wall 3x3 High Contrast
Wall Mounted 55 Inch Super Thin Bezel Lcd Screen Wall 3x3 High Contrast
Wall Mounted 55 Inch Super Thin Bezel Lcd Screen Wall 3x3 High Contrast
Specifications
Brand Name :
XUNSHINA
Model Number :
XS460-5500HD-SNL3
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
4pcs
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
3000pcs per month
Delivery Time :
3-7 working days after payment
Packaging Details :
Inner package: honeycomb carton with EPE foam full covering, Outer package: 4 in 1 plywood case
Size :
55" TFT-LCD screen
Bezel width :
3.5mm (between 2 screens)
Backlight :
LED direct
Contrast ratio :
4000:1
Power :
250watts Max
Installation method :
Wall mounted, Floor standing, Cabinet
Visual angle :
178/178D
Description

High Contrast Wall Mounted 55 inch Super Thin Bezel 3x3 Video Wall

Description

Adopt industrial grade LED backlight panel, support 7x24 continuous working, feature with full HD, high definition, high stability, long life time, ultra thin design, no radiation, low consumption, etc.

1. No risk of virus infection, ensuring excellent security;
2. Integrate multi-channel video signal types: HDMI, DVI, VGA, CVBS (composite video);
3. Composite video can be looped out;
4. Embedded 3D video bright separation circuit unit;
5. Embedded 3D progressive processing and frame-rate normalization and conversion circuit unit;

Specifications

Model No. XS460-5500HD-SNL3
LCD Size 55" Samsung panel
Resolution 1920(H)x1080(V)
Pixel pitch 0.630(H)x0.630(V)
Backlight LED
Brightness(typical) 500cd/m², 700cd/m²
Contrast 4000 : 1
Viewing angel (H/V) 178° / 178°
Color depth 1.07B
Response time <8ms
Display area 1209.6(H)×680.4(V)
Bezel 3.5mm

Interface		 CVBS In / Out (BNC ) 1/1
VGA In / Out 1/0
DVI In / Out 1/0
HDMI In/Out 1/0
DEBUG(USB) 1/0
Control IR remote control Yes
RS-232 In/Out 1/2

Physical parameter		 Dimension 1213.5mm(W) x684.3mm(H) x118mm(D)
Frame color Black
Frame material Metal
Net weight 30Kg

Power		 Power consumption ≦250W
Standby <1W
Power supply AC 100V-240V, 50/60Hz,Universal,±10%

Environment		 Operating humidity 20-90% RH(no condensation)
Storage humidity 10-90% RH (no condensation)
Operating temperature 0 ~ 50° C / 32 ~ 122° F
Storage temperature -20 ~ 60° C / -4 ~ 140° F

Accessory		 Standard accessories Power cable, User manual, Warranty card, Quality certificate
Optional accessories Wall mounted brackets, floor stand brackets, cabinet
*design and specifications are subject to changes without prior notice

Applications

1. Education and Conference System
2. Safety Monitoring System of Mining and Energy Industry
3. Commercial Industry
Used in the display terminal of commercial industry, such as advertising, media, product presentations
4. Financial Industry
Used in the information display terminal of financial industry, such as stock and security market. .
5. Transportation Industry
Used in the information display terminal of transportation industry, such as airports, ports, metro, highway.
6. Management and Control System
Used in the display terminal of management and control system such as fire-fighting, meteorology, maritime, food prevention, transportation hub
