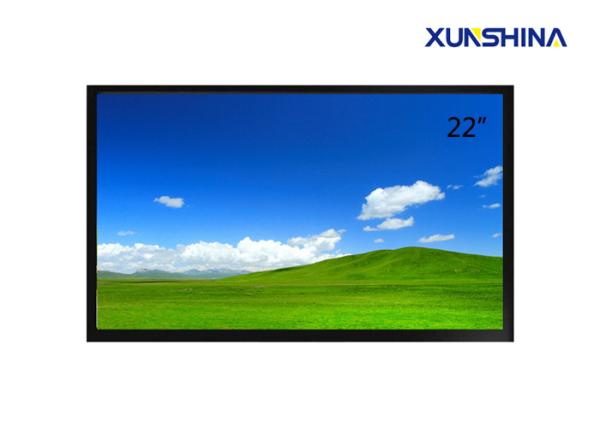

Fashionable 22 inch HD CCTV LCD Monitor Security Monitoring with BNC input
Fashionable 22 inch HD CCTV LCD Monitor Security Monitoring with BNC input
Fashionable 22 inch HD CCTV LCD Monitor Security Monitoring with BNC input
Fashionable 22 inch HD CCTV LCD Monitor Security Monitoring with BNC input
Specifications
Brand Name :
XUNSHINA
Model Number :
XS460-2200HD-P
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
1PC
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
3000pcs per month
Delivery Time :
3-5 working days after payment
Packaging Details :
Inner package: carton with EPE foam, outer package: plywood case
Size :
22" TFT-LCD panel
Resolution :
1680x1050
Backlight :
LED
Display area :
473(W)x296(H)
Pixel :
0.282mmx0.282mm
Brightness :
250nits
Description

22 inch HD CCTV LCD Monitor Security Monitoring with BNC input

Features

> Easy to operate
> Fashionable appearance
> High contrast, high brightness, greatly improve the image layering, can perform details better
> Automatic elimination of blur function, protect the LCD screen for long-term use
> Latest I²C bus control circuit, high reliability, good expansibility
> Multiple input signals(CVBS/YPBPR/VGA/HDMI/RCA)
> Built-in power, low consumption, long life time 60000hrs
> Equipped with a sensitive infrared receiver, can adjust the monitor parameters via remote control
> Ultra quiet cooling fan design
> Full metal casing design, strong anti-electromagnetic shielding, no radiation


Specifications

Model No. XS460-2200HD-P
Panel Size 22”(16:10)
Type LED
Resolution 1680x1050
Display area 473(W)x296(H)
Pixel pitch 0.282mmx0.282mm
Brightness 250cd/m²
Contrast 1000:1
Response time 5ms
Viewing angle 170°(H)x170°(V)
Field frequency 50HZ, 60HZ, 70HZ
Color Display color 16.7M
Max color Full Color
Color system PAL/NTSC
Input/Output CVBS input BNCx2
YPBPR input 1(BNCx3)
HDMI input HDMIx1
VGA input VGAx1
CVBS output BNCx1
Audio Audio input RCAx2
Power consumption Power supply AC100～240V,50/60HZ
Max consumption ≤50W
Standby ≤1W
Working environment Temperature 0℃～50℃
Relative humidity 10％～90％
Storage environment Temperature -25℃～60℃
Relative humidity 5％～95％
Dimension Body dimension 500.1mm(W)x326.6mm(H)x46mm(D)
Packing dimension 570mm(W)x400mm(H)x140mm(D)
Weight N.W. 5.5kg
G.W. 6.5kg
Installation Installation method Wall mounted, desktop optional
Others Operation method Panel buttons, IR remote control
Cooling system Single fan cooling
Casing material Full metal casing
Environment standards All components and packing materials comply with international environment standards
Accessories User manual, warranty card, remote control, AC power cable


Why choose us?
1, We are professional manufacturer for digital signage, lcd video wall,cctv lcd monitor, touchscreen all-in-one, etc.
2, We could provide OEM/ODM service for all kinds of customers. Our professional support team will service online 24 hours for customers.
3, We have a very strong quality control.
4, Samples are always available for checking quality and can be dispatched to you very quickly.
5, Experienced R&D and QC staffs guarantee the product quality and keep updating products and technology.
6, Warranty (1-3 year)
