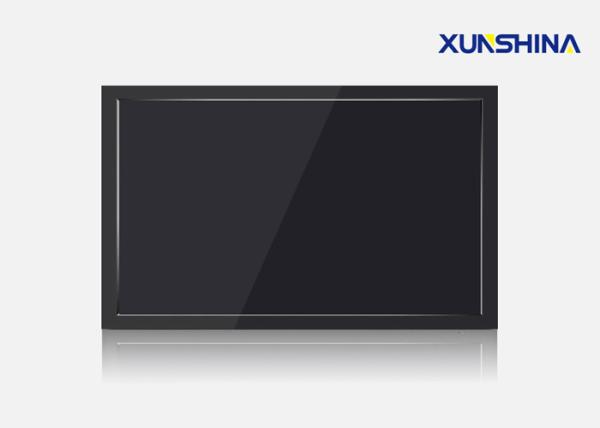

Security Field 32 Inch CCTV Full Hd Lcd Monitor For Police Station
Security Field 32 Inch CCTV Full Hd Lcd Monitor For Police Station
Security Field 32 Inch CCTV Full Hd Lcd Monitor For Police Station
Security Field 32 Inch CCTV Full Hd Lcd Monitor For Police Station
Specifications
Brand Name :
XUNSHINA
Model Number :
XS460-3200HD-P
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
1PC
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
3000pcs per month
Delivery Time :
3-5 working days after payment
Packaging Details :
Inner package: carton with EPE foam, outer package: plywood case
Size :
32" TFT-LCD panel
Resolution :
1920x1080
Backlight :
CCFL
Response time :
5ms
Interface :
BNC, HDMI, VGA, YPbPr
Product type :
bnc monitor
Description

Security Field 32 inch FHD CCTV LCD Monitor for Police Station

Features

> Latest I²C bus control circuit, high reliability, good expansibility
> Multiple input signals(CVBS/YPBPR/VGA/HDMI/RCA)
> Ultra quiet cooling fan design
> Full metal casing design, strong anti-electromagnetic shielding, no radiation


Specifications

Model No. XS460-3200HD-P
Panel Size 32”(16:9)
Type CCFL
Resolution 1920x1080
Display area 698.4(H)x392.85(V)
Pixel pitch 0.36375mmx0.36375mm
Brightness 400cd/㎡
Contrast 1000:1
Response time 5ms
Viewing angle 178°(H)x178°(V)
Field frequency 50HZ, 60HZ, 70HZ
Color Display color 16.7M
Max color Full Color
Color system PAL/NTSC
Input/Output CVBS input BNCx5
YPBPR input 1(BNCx3)
DVI input DVIx1
HDMI input HDMIx1
VGA input VGAx1
CVBS output BNCx2
Audio Audio input RCAx2
Power consumption Power supply AC100～240V,50/60HZ
Max consumption ≤150W
Standby ≤1W
Working environment Temperature 0℃～50℃
Relative humidity 10％～90％
Storage environment Temperature -25℃～60℃
Relative humidity 5％～95％
Dimension Body dimension 773.6mm(W)x470mm(H)x118mm(D)
Packing dimension 856mm(W)x560mm(H)x163mm(D)
Weight N.W. 15kg
G.W. 16.5kg
Installation Installation method Wall mounted, desktop optional
Others Operation method Panel buttons, IR remote control
Cooling system Single fan cooling
Casing material Full metal casing
Environment standards All components and packing materials comply with international environment standards
Accessories User manual, warranty card, remote control, AC power cable


Why choose us?
1, We are professional manufacturer for digital signage, lcd video wall,cctv lcd monitor, touchscreen all-in-one, etc.
2, We could provide OEM/ODM service for all kinds of customers. Our professional support team will service online 24 hours for customers.
3, We have a very strong quality control.
4, Samples are always available for checking quality and can be dispatched to you very quickly.
5, Experienced R&D and QC staffs guarantee the product quality and keep updating products and technology.
6, Warranty (1-3 year)
