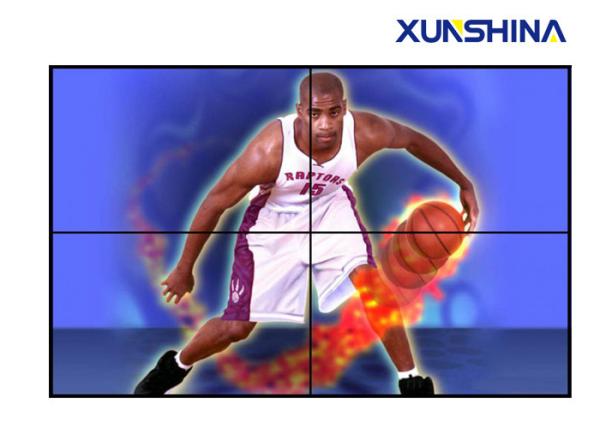

HD Digital Narrow Bezel Video Wall1920X1080 Resolution , 2x2 Video Wall
HD Digital Narrow Bezel Video Wall1920X1080 Resolution , 2x2 Video Wall
HD Digital Narrow Bezel Video Wall1920X1080 Resolution , 2x2 Video Wall
HD Digital Narrow Bezel Video Wall1920X1080 Resolution , 2x2 Video Wall
Specifications
Brand Name :
XUNSHINA
Model Number :
XS460-5500HD-SNL3
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
4pcs
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
3000pcs per month
Delivery Time :
3-7 working days after payment
Packaging Details :
Inner package: honeycomb carton with EPE foam full covering, Outer package: 4 in 1 plywood case
Product Name :
LCD TV Wall
H/V View Angle :
178/178 ̊
Panel size :
55 inch
Brightness :
500nits
Max Power :
250Watts
Dimension :
1213.5(W) x684.3(H) x118(D)
Description

Promotional HD Digital Video Wall Displays1920X1080 Resolution

Description of lcd video wall

1. High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.

2. Continuous boot for 7 * 24 hours, deserve to trust.

3. Easy to operate, flexibly operate the system with the large screen control software;
4. Can be controlled via the big screen for each terminal server software system independent implementation of content playback,schedule management ,multi-screen control ,instant messaging and so easy to operate.

5. Support error and compensation function of video wall pictures

Specifications

Model No. XS460-5500HD-SNL3
LCD Size 55" Samsung panel
Resolution 1920(H)x1080(V)
Pixel pitch 0.630(H)x0.630(V)
Backlight LED
Brightness(typical) 500cd/m²
Contrast 4000 : 1
Viewing angel (H/V) 178° / 178°
Color depth 1.07B
Response time <8ms
Display area 1209.6(H)×680.4(V)
Bezel 3.5mm
Interface CVBS In / Out (BNC ) 1/1
VGA In / Out 1/0
DVI In / Out 1/0
HDMI In/Out 1/0
DEBUG(USB) 1/0
Control IR remote control Yes
RS-232 In/Out 1/2
Physical parameter Dimension 1213.5mm(W) x684.3mm(H) x118mm(D)
Frame color Black
Frame material Metal
Net weight 30Kg
Power Power consumption ≦250W
Standby <1W
Power supply AC 100V-240V, 50/60Hz,Universal,±10%
Environment Operating humidity 20-90% RH(no condensation)
Storage humidity 10-90% RH (no condensation)
Operating temperature 0 ~ 50° C / 32 ~ 122° F
Storage temperature -20 ~ 60° C / -4 ~ 140° F
Accessory Standard accessories Power cable(1.8m, User manual, Warranty card, Quality certificate
Optional accessories Wall mounted brackets, floor stand brackets, cabinet
*design and specifications are subject to changes without prior notice

Our Services

Pre-sales service :
Our team design and make solutions based on different requirements from different customers.
After-sales service:
1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.
2. We provide remote control service through internet to achieve real time service.
Installation Service:
1. We provide detailed CAD drawing to customers for preparing metal structure.
2. Onsite service can be provided for guide installation and training.

Applications

1. Education and Conference System
2. Safety Monitoring System of Mining and Energy Industry
3. Commercial Industry
Used in the display terminal of commercial industry, such as advertising, media, product presentations
4. Financial Industry
Used in the information display terminal of financial industry, such as stock and security market. .
5. Transportation Industry
Used in the information display terminal of transportation industry, such as airports, ports, metro, highway.
6. Management and Control System
Used in the display terminal of management and control system such as fire-fighting, meteorology, maritime, food prevention, transportation hub
