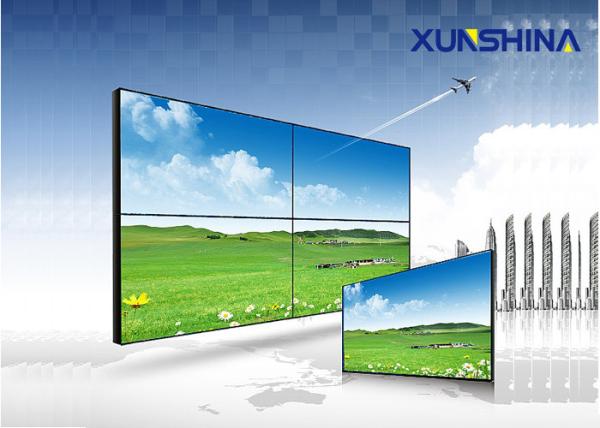

700 Nits Brightness Narrow Bezel Video Wall 1920*1080P With Video Wall Controller
700 Nits Brightness Narrow Bezel Video Wall 1920*1080P With Video Wall Controller
700 Nits Brightness Narrow Bezel Video Wall 1920*1080P With Video Wall Controller
700 Nits Brightness Narrow Bezel Video Wall 1920*1080P With Video Wall Controller
Specifications
Brand Name :
XUNSHINA
Model Number :
XS460-4600HD-SNH3
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
4pcs
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
3000pcs per month
Delivery Time :
3-7 working days after payment
Packaging Details :
Inner package: honeycomb carton with EPE foam full covering, Outer package: 4 in 1 plywood case
Brightness :
700 NITS
Product name :
Video Wall Monitor
Remote control :
Supported
Contrast ratio :
3000:1 typ
Using life :
More than 60,000 hrs
Visual angle :
H V 178/178
Size :
46 inch
Description

700 Nits Brightness Narrow Bezel Video Wall 1920*1080P With Video Wall Controller

Description of lcd video wall
1.LCD product itself with low power consumption and last much longer.
2.Wide viewing angle: DID LCD panel makes the viewing angle up to 178°.

3. No risk of virus infection, ensuring excellent security.


Specifications

Model No. XS460-4600HD-SNH3

LCD

 Size 46" Samsung panel
Resolution 1920(H)x1080(V)
Pixel pitch 0.53025(H)x0.53025(V)
Backlight LED
Brightness(typical) 700cd/m²
Contrast 3000 : 1
Viewing angel (H/V) 178° / 178°
Color depth 16.7M
Response time <8ms
Display area 1018.08(H)×572.67(V)
Bezel 3.5mm

Interface

 CVBS In / Out (BNC ) 1/1
VGA In / Out 1/0
DVI In / Out 1/0
HDMI In/Out 1/0
DEBUG(USB) 1/0
Control IR remote control Yes
RS-232 In/Out 1/2

Physical parameter

 Dimension 1021.98mm(W) x576.57mm(H) x121.7mm(D)
Frame color Black
Frame material Metal
Net weight 18.6Kg

Power

 Power consumption ≦190W
Standby <1W
Power supply AC 100V-240V, 50/60Hz,Universal,±10%

Environment

 Operating humidity 20-90% RH(no condensation)
Storage humidity 10-90% RH (no condensation)
Operating temperature 0 ~ 50° C / 32 ~ 122° F
Storage temperature -20 ~ 60° C / -4 ~ 140° F

Accessory

 Standard accessories Power cable, User manual, Warranty card, Quality certificate
Optional accessories Wall mounted brackets, floor stand brackets, cabinet
*design and specifications are subject to changes without prior notice

Applications

1.Education and Conference System
2.Safety Monitoring System of Mining and Energy Industry
3.Commercial Industry
Used in the display terminal of commercial industry, such as advertising, media, product presentations
4.Financial Industry
Used in the information display terminal of financial industry, such as stock and security market. .
5.Transportation Industry
Used in the information display terminal of transportation industry, such as airports, ports, metro, highway.
6.Management and Control System
Used in the display terminal of management and control system such as fire-fighting, meteorology, maritime, food prevention, transportation hub
