Full Outdoor Digital Signage IP55 Waterproof 42 Advertising Display
Full Outdoor Digital Signage IP55 Waterproof 42 Advertising Display
Full Outdoor Digital Signage IP55 Waterproof 42 Advertising Display
Full Outdoor Digital Signage IP55 Waterproof 42 Advertising Display
Specifications
Brand Name :
XUNSHINA
Model Number :
XS460-4200HD-FO
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
2000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Inner package: carton, outer package: plywood case
Brightness :
2000cd/m2
Contrast :
3000:1 Typ
Waterproof :
IP55
Life Span :
60,000hrs
Cooling System :
Default fan cooling, air conditional optional
Surface :
6mm AR anti-glare glass
Product Name :
Outdoor Advertising Display
Description

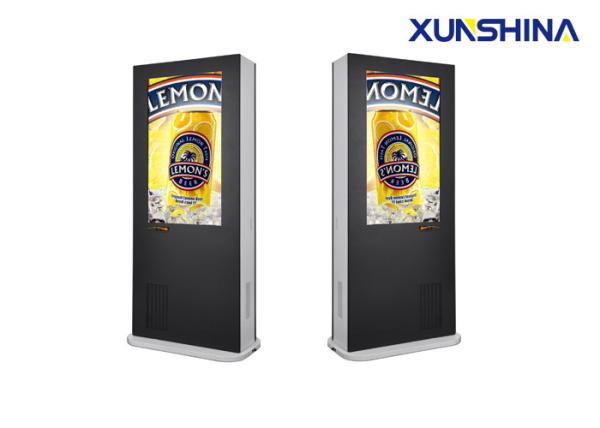

Full Outdoor Digital Signage IP55 Waterproof 42" Advertising Display

Product technical features

1. Full outd 1. Full outdoor waterproof and dust-proof

> IP55waterproof and dust-proof

> Multiple installation methods, floor standing or customized

> Adopts high transparency glass, improving the visibility of screen, AR anti-glare makes it clearer under sunshine

2. Sun readable

> High brightness LCD screen, up to 1500-3000cd/m2

> LED backlight, life up to 60,000hrs, environment-friendly and energy saving

3. Temperature control system

4. Play system solution

Specification

LCD screen

 Panel 42” LCD panel
Display ratio 9:16
Backlight LED
Resolution 1080*1920
Brightness 2000cd/m2
Contrast 3000:1
Viewing angle 178°(H) / 178°(V)
Using life 60000hrs

Other parts

 Interface Reserve VGA,HDMI interface
6mm AR laminated glass Insulate 99.99% ultraviolet ray
Insulate more than 50% solar radiation
Transparency up to 93%
Reflectivity less than 3%
Total solar energy rejection more than 50%
EBM centrifuge fan Voltage 24V
Operate voltage 20.4-27.6V
Start voltage 12V
Average speed 2400RMP min speed 2160RMP
Average electricity 0.26A max 0.312
Connect power average 3.12 max 3.74
Average airflow 74 min airflow 66.6
Average static pressure 2.0 min 1.8
Noise 33db
Intelligent temperature control board Can automatically adjust the fan speed according to working temperature, built-in heating functio, can meet outdoor -20-50°C normally working
Shell Adopts 1.5mm SECC+protect Zn bottom power+outdoor power
Sensitization probe Auto detect surrounding temperature to adjust the brightness
Anti-thunder protector To prevent thunder-strike
Touch foil parameter (optional) Touch type Touch foil
Touch method Finger
Touch valid identification ≥5mm
Touch accuracy ±1.5mm,sensitive touch 90%
Touch point 2 points,4 points,6 points,10 points optional
Touch times Unlimited
First point response time ≤10ms
Continuous response time ≤5ms
Power supply Power supply AC 108-115V AC 208-240V
Fan power 24V 250W
LCD screen and backlight power 24V+12V mixed power 200-300W
Working environment Working temperature -20°C to +50°C
Storage temperature -20°C to 60°C
Working humidity 5% to 100%
Storage humidity 5% to 100%

Physical

 Installation Floor standing
Body dimension 1967.2x713x240(mm)
Color Black
Shell material Sheet metal
G.W. 150KG
