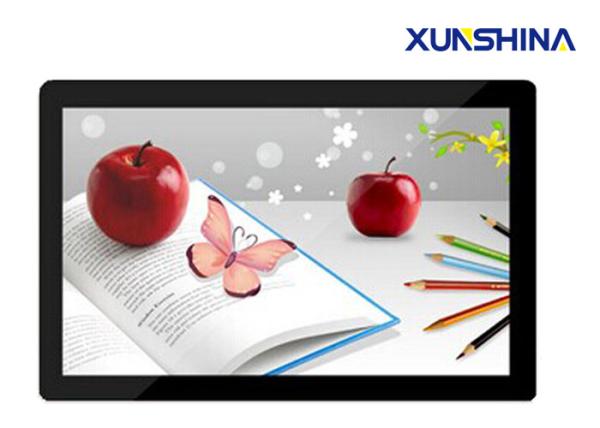

TFT type 43 Android Wall Mounted Digital Signage For Bookshops
TFT type 43 Android Wall Mounted Digital Signage For Bookshops
TFT type 43 Android Wall Mounted Digital Signage For Bookshops
TFT type 43 Android Wall Mounted Digital Signage For Bookshops
Specifications
Brand Name :
XUNSHINA
Model Number :
XS460-4300HD-WNA
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
1PC
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
3000pcs per month
Delivery Time :
5-7 working days after payment
Packaging Details :
Inner pacage: carton with EPE foam, outer package: eco-friendly plywood case; flight case optional
Screen Size :
43" TFT-LCD
Display Area :
930.24x523.26mm
Resolution :
1920*1080P
Display Color :
16.7M
Net Weight :
20KG
Contrast :
1200:1
Description

TFT type 43" Android Wall Mounted LCD Advertising Display For Bookshops

Features

Network Version

Ethernet,WiFi,3G(LAN/WAN)

Support in the English subtitles rolling,a variety of caotion display mode(which can adjust the font color,background color,and the rollig direction of horizontal or vertical related attributes)

Support

Standalone & Network version Horizontal,Vertical,split screen play Aspect ratio(16:9 9:16 4:3 3:4)

Setting a plurality of time automatically open,stutdown time control playback.

Any display window,video playback,can realize different window showing different content.

Specifications
LCD Specifications
Model No. XS460-4300HD-WNA Panel Factory original LCD panel
Size 43inch Body Dimension 1031(W)x623(H)x60.5(D)mm
Body Material Tempered glass+AL Frame Surface Tempered glass
Display Color 16.7M(8-bit) Response Time 6ms
Brightness 350cd/m2 Viewing Angle 89/89/89/89/(Min)(cR≥10)
Display Ratio 16:9 Display Area 930.24x523.26mm(H*V)
Backlight Life 50000H Backlight Type LED
Scan Frequency 60HZ Resolution 1920x1080
Power 150W Contrast 1200:1(Typ)
Voltage 110-240V ( AC) Net Weight 20KG
Main Hardware Parameters

Processor

 Allwinner A20,Cortex-A7, 1.2GHz
RAM DDR3 1GB (max support 2GB)
ROM emmc FLASH 8GB ( max support 32GB)
Memory Expansion Max support 32GB TF card
WiFi Built-in USB WIFI or WIFI/BT module (optional), 802.11b/g/n
File System
OS Android 4.4.4
Language Chinese simplified, Chinese traditional, English, French, German, Italian, Japanese, Korean, Russian, Spanish, Polish, Czech, etc.
Network Function
Browser UCWeb, Google, etc
Online Entertainment Support online video, television, movies, music, radio
Office WORD, EXCEL, POWERPOINT, PDF, TXT
Games Built-in 3D acceleration, perfect support 3D effect games
Expansibility Google Play up to more than 20,000 kinds of Apps free download
Video Play
Support format Support AVI (H.264, DIVX, DIVX, XVID), rm, rmvb, MKV (H.264, DIVX, DIVX, XVID), WMV, MOV, MP4 (.H.264, MPEG, DIVX, XVID), DAT (VCD), VOB (DVD), PMP, MPEG, MPG, FLV (H.263, H.264), ASF, TS, TP, 3GP, MPG, etc more than 30 formats
Decoding resolution Max resolution 3840*2160
Video output Max support HDMI 1080P full HD output
Audio Play
Support format Support MP3, WMA, MP2, OGG, AAC, M4A, MA4, FLAC, APE, 3GP, WAV, Support song list function
Recording function Support MP3, WMA format recording
Additional Function
Picture browsing Support JPG, BMP, PNG, GIF etc a variety of image formats and support image rotate/slide show, up to 4096*4096 resolution
Text reading Support TXT, PDF, HTML, HTM, CHM, UMD
Basic Interfaces
USB2.0 2xUSB HOST (1xUSB pin, 1 standard USB)
UART 6 (2xRS232, 3xTTL, 1xTTL+ fluid control)
LVDS output 1, can directly drive 50/60Hz LCD screen
LCD Backlight port 1, standard 6pin socket ( power input can choose 12V or 5V)
Touch panel port 1 built-in 6P socket, can choose to connect small size capacitive touch panel
HDMI output 1x HDMI support 1080P output
AV output Support 1xCVBS ouput and 2x L/R audio output)
TF card 1x TF
Speaker output L/R output (max support dual channel 4R/3W speaker)
Headphone Headphone output can be connected via extension cable
Infrared body induction 1 (Depends on the structure, it can be soldered directly to the motherboard or can be connected out by an extension cable)
RTC 1 clock socket, (RC2032 or connect larger capacity button battery through the socket)
Power supply 1 external socket (inner core 2.5MM) and 1 built-in 6P_2.54MMsocket DC 12V input
LAN 1x RJ45
LED indicator and IR remote control receiver 1 built-in double color LED indicator(power on and system operating indicator) and IR remote control receiver(Depends on the structure, it can be soldered directly to PCB board or can be connected out by an extension cable)
Button 1 built-in system upgraded button and 1 5pin socket can be connected through extension cable
I/O socket 1 built-in 5P socket (support 4xGPIO extension)
Other Functions
Touch panel Support capacitive touch, IR touch (DKtouch, Fitouch, CVT etc.)
Other input device Support USB keyboard, mouse, IR remote control
Voice function Supported
Video function Support USB camera
Special function Watchdog, timer switch
3G module Supported (optional)
Power
Power supply DC 12V
Power consumption ≦2.5W, not connect to speaker/lcd screen/backlight inverter/USB devices
Working Environment
Working temperature 0℃～40℃
Working humidity 10％～90％, no condensation
Storage temperature -40℃～70℃, recommended 5℃～35℃

Our Services

1. Reply your enquiry in 24 working hours.

2. Experienced staffs answer all your questions in professional and fluent English.

3. Customized design is available. OEM&ODM are welcome.

4. Exclusive, considerate and unique solution can be provided to our customers by our well-trained and

professional engineers and staffs.

5. Special discount and protection of sales area provided to our distributor.

6. 1 year warranty for the products.
