Specifications
Brand Name :
XUNSHINA
Model Number :
XS-G49B
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
1PC
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
3000pcs per month
Delivery Time :
7 working days after payment
Packaging Details :
Inner package: carton, outer package: wooden case
Price :
Negotiable
Screen resolution :
1920*1080p
RAM :
1GB, 2GB/4GB optional
Processor :
RKPX30 quad-core ARM Cortex-A35(default) or RK3288 quad-core ARM Cortex-A17 (optional)
Size :
49inch
Panel brand :
LG
Backlit :
LED
Touch :
Optional
Keywords :
digital totem
Description

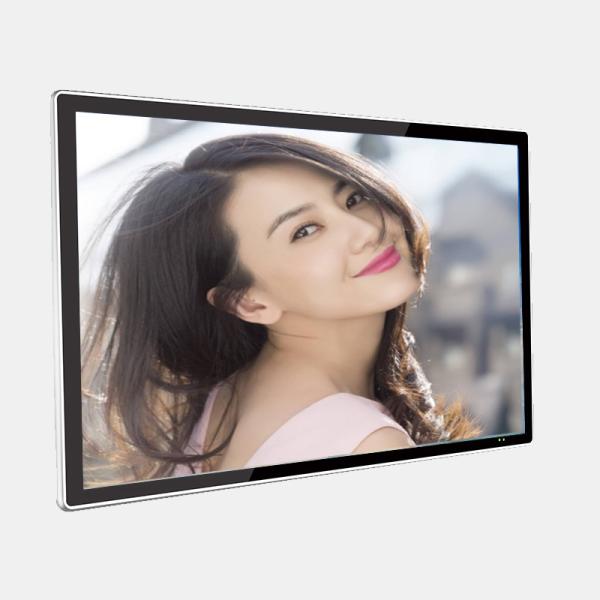

Lcd Digital Totem Display 49" Full HD Advertising Screen With 1GB RAM 8GB ROM

Description

1. Real time management and controlling, browser, breakpoint upload download, multi-mode upload supported.
2. Updating programs (video, pictures. texts,PPT etc.) through the internet supported.
3. Auto power on/off, electronic clock & date supported.
4. Split Screen and fixed templated display setting supported.
5. Setting IP address, working time and working day supported.

Features

1) Class A grade full new and original factory packing LCD screen, LG brand

2) High-class metal material Shell, the outline shape & color can be customized

3) Information Security by lock

4) Full metal shell structure design, with strong electromagnetic shielding, no radiation.

Specifications

Name Model No. XS-G49B

LCD screen

Size 49inch
Resolution 1920(H)x1080(V)
Display ratio 16:9
Contrast ratio 1200:1
Brightness 350cd/㎡
Viewing angle H178º /V178º
Color depth 16.7M
Response time 8ms
Life span 60,000hrs
Display area 1075(W)x605mm(H)

Hardware

Main chip

RKPX30 quad-core ARM Cortex-A35(default)

RK3288 quad-core ARM Cortex-A17 (optional)

Software B/S structure multimedia information release system
RAM 1GB(default), 2GB(optional)
External storage Max support 64G B TF card
ROM 8GB (optional)
Interface 1*RJ45,2*USB

Supported formats

OS Andoid5.0 and above
Video decoding Real-time video decoding, support MPEG-1, NPEG-2, MPEG-4
Decoding resolution Support up to 1080P@60fps/RK3288 Support up to 4K VP9/H265/H264 video decoding, 1080P multi-format decoding
Video coding H.264,MVC.VP8
Coding resolution Max support1080P@60fps, RK3288 max support 4K
Picture format Support JPG,JPEG,BMP,PNP,GIF
Play mode Support loop playback, timing, insert and other playback modes
Text format TXT(doc)
Video format Support MPeg1, MPeg2, MPeg4, sp/AP GMC, XVID, H.263
H.264. BP/MPHP, WMV7/8WMV9/VC1, BP/P/AP, VP6/8
AVS, JPEG/MJPEG
Audio format MP3, WMA, MP2,0GG, AAC, M4A, FLAC,APE,3GP,WAV
3G/4G module One PCIE slot, one USB interface
LVDS output Support

Additional functions

RTC Support
Timer switch Support
System Upgrade Support USB upgrade

Appearance

Panel Ultra-high quality tempered glass (transmittance ≧98%)
Outer frame High-strength aluminum alloy frame (tensile strength > 480 MPa)
Back shell Cold rolled steel, black paint

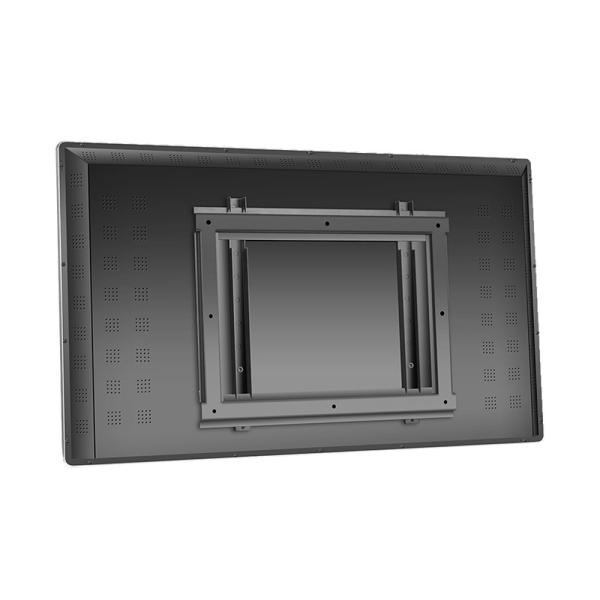

Wall mounted mode Horizontal screen, vertical screen (optional)
Working environment Operating temperature 0℃—50℃
Storage temperature -20℃—60℃
Power supply Operating voltage AC100—240V
Rated power ≤200W
Built-in speaker 2x5W Stereo surround sound
Specifications may be changed without prior notice.

Information release software function introduction

1. Centralized control management

The system adopts the B/S architecture, you login control background on any computer via IE browser without installing the client, and perform any operation management on all terminals.

2. Any effect programming

You can arbitrarily stretch and drag the effects of program material and size when creating a program.

3. System compatibility scalability

1) Support almost all video formats (rm. rmvb .avi. mpg. dat mov. asf mtv,mkv,wmv,3gp,amv,dmv,divx, etc)

2)Audio format(mp3,wma,wav, etc)

3) Picture (jpg,gif,png, etc)

4) Word, excel, pdf

5) other: RSS real-time news, flash animation, dynamic web pages

6)Picture effects play: Add pictures to set picture playback effects, such as: blinds, progressive fade out and other special effects

7)Live streaming: Support live streaming, live webcast, local DVD live video, video conferencing, etc.

8) Multi-program loop playback: The system supports multi-program loop playback function. For example, 10 programs are sent to the terminal player at the same time, and the terminal player will play the 10 programs cyclically. Each program can be arbitrarily split, and each program can be specified to play time.

9) A variety of play modes (immediate play mode, insert play mode, timed play mode)

Applications

1. Entertainment and fitness ---- Nightclubs, karaoke bars, entertainment city, fitness venues, clubs, teahouses, etc., place advertising machines, can display local introductions, promotional information, featured introductions, etc.

2. Shopping malls----Shopping malls, commercial buildings, supermarkets, chain stores, etc., place advertising machines, can send local business introductions, recommended products, discount information, etc.

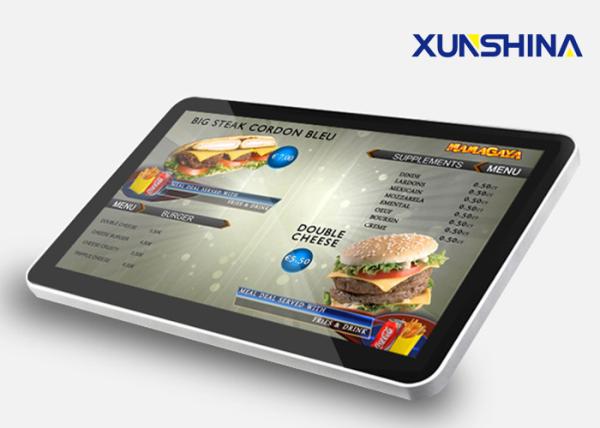

3. Catering----Advertising machines for restaurants, chain restaurants, etc., can display special features of the restaurant, recommended dishes, discounted dishes, etc.

4. Cultural places----The theaters, science and technology museums, cultural centers, libraries, exhibition halls, museums, cinemas, etc., advertising machines can be used to display the exhibition, the introduction, etc.

5. Medical and health ---- Hospitals, rehabilitation centers, outpatient departments, special medical treatments, etc. place advertising machines, can display local medical conditions, service guides, experts and doctors.
