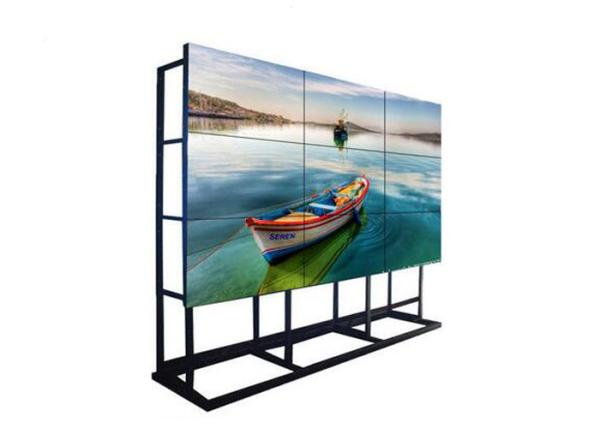

1.7mm Bezel Seamless Video Wall 46 Samsung Screen 700nits High Brightness
1.7mm Bezel Seamless Video Wall 46 Samsung Screen 700nits High Brightness
1.7mm Bezel Seamless Video Wall 46 Samsung Screen 700nits High Brightness
1.7mm Bezel Seamless Video Wall 46 Samsung Screen 700nits High Brightness
Specifications
Brand Name :
XUNSHINA
Model Number :
XS-S46TL30
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
4pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
3000pcs per month
Delivery Time :
3-7 working days after payment
Packaging Details :
Inner package: honeycomb carton with EPE foam, Outer package: 4 in 1 wooden case
Screen :
46" Samsung screen
Bezel :
1.7mm
Remote control :
IR, RS232
Interfaces :
BNC, HDMI, DVI, VGA
Resolution :
1920x1080
Contrast :
4000:1
Wide viewing angle :
H/V 178/178
Brightness :
700cd/m2
Description

1.7mm Bezel 46" Seamless Video Wall System With High Brighntess 700nits

Advantages of LCD Video Wall

1. Low power consumption and low heat radiation
2. Long service life lowers the cost of usage and maintenance
3. The ultra thin and lightweighted design makes it easy to transport and install
4. High performance and high quality make it cost less.

5. Flat-fell seam between the non-display area is only 1.7mm

6. Full HD resolution, image display more nature and smooth

7. Using imported chip, high reliable components and high heat dissipation body design, support 7*24 uninterrupted operating, stable and reliable

Specifications

Model No. XS-S46TL30

LCD

 Size 46" Samsung panel
Resolution 1920(H)x1080(V)
Pixel pitch 0.53025(H)x0.53025(V)
Backlight LED
Brightness(typical) 700cd/m²
Contrast 4000 : 1
Viewing angel (H/V) 178° / 178°
Color depth 16.7M
Response time <8ms
Display area 1018.08(H)×572.67(V)
Bezel 1.7mm

Interface

 CVBS In / Out (BNC ) 1/1
VGA In / Out 1/0
DVI In / Out 1/0
HDMI In/Out 1/0
DEBUG(USB) 1/0
Control IR remote control Yes
RS-232 In/Out 1/2

Physical parameter

 Dimension 1020.02(W)x574.61(H)x121.7(D)mm
Frame color Black
Frame material Metal
Net weight 18.6Kg

Power

 Power consumption ≦190W
Standby <1W
Power supply AC 100V-240V, 50/60Hz,Universal,±10%

Environment

 Operating humidity 20-90% RH(no condensation)
Storage humidity 10-90% RH (no condensation)
Operating temperature 0 ~ 50° C / 32 ~ 122° F
Storage temperature -20 ~ 60° C / -4 ~ 140° F

Accessory

 Standard accessories Power cable, User manual, Warranty card, Quality certificate
Optional accessories Wall mounted brackets, floor stand brackets, cabinet
*design and specifications are subject to changes without prior notice

Applications:

1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.

2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.

3. Financial Institution: Bank, Insurance company, etc.

4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.

5. Public Service: Hospital, School, Telecom, Post office, etc.

6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.
