Specifications
Brand Name :
XUNSHINA
Model Number :
XS-C75BH
Place of Origin :
China
MOQ :
1PC
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 PCS per month
Delivery Time :
7-10 working days
Packaging Details :
honeycomb carton inside, wooden case outside
Brightness :
350cd/m2
Response time :
10ms
Viewing angle :
178/178
Resolution :
3840（H）×2160（V）（UHD）
Dimension :
1707.1*1025.8*91.3mm
Max resolution :
3840*2160
Contrast :
1200:1
Product name :
conference touch kiosk
Touch screen :
Infrared touch 10 points
Power consumption :
≦350W
Description

75inch NEW 4K UHD Dual System Interactive Touch Kiosk For Meeting Room

Product features:

1. The whole machine adopts an all-metal shell integrated design, 1.5cm ultra-narrow face frame, outside no visible internal function module connection lines.

2. The whole screen adopts ultra-high-definition LED LCD screen;

3.USB port can directly support USB disk to play ultra-high-definition 3840*2160 video; 4K video decoding supports H.265 format. USB port can be connected to a wireless mouse and keyboard, and can be used as a large-capacity mobile hard disk connection. The front USB port supports computer and Android sharing a USB interface .

4. Support Android and computer handwriting annotation function on any screen, support real scene annotation and panoramic annotation function. Support gesture pull-down navigation bar, you can call out common function shortcut keys with one key, one-key annotation, one-key switching and other functions.

5. Support Android and computer handwriting annotation function on any screen, support real scene annotation and panoramic annotation function. Support gesture pull-down navigation bar, you can call out common function shortcut keys with one key, one-key annotation, one-key switching and other functions.

2.1 Screen parameters

75inch parameters
Size 75”
Dimension 1707.1*1025.8*91.3mm
Display area 1650.24mm(H)×928.26mm(V)
Pixel pitch 0.4296mm x 0.4296 mm
Resolution 3840(H)×2160(V)(UHD)
Brightness 350cd/㎡
Contrast ratio 1200:1(Typ.)
Viewing angle 178°,178°
Response time 10ms
Color depth 10 bit/1.07 Billion
Backlight DLED
Life span ³50000 hrs
Speaker 2*8Ω10W
Power consumption ≦350W
Power supply 100V-240VAC,50/60Hz

2.2 Mainboard parameter

Mainboard parameters
Solution MSD648
CPU

ARMCortex-A53 quad-core
RAM 2GB
ROM 16 GB
System Android Version 6.0.0

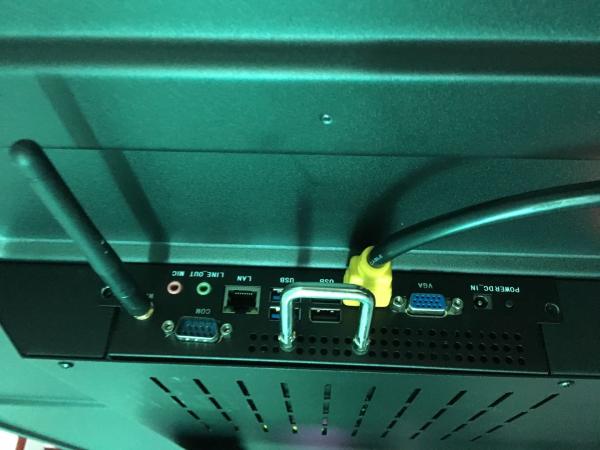

Interfaces WiFi*3,HDMI in*2,AV in*1,AV out*1,YPBPR*1,VGA*1,PC audio*1,USB*4(front*2), SD card slot*1,RS232*1,RJ45*1,Earphone audio out*1,Coaxial audio*1,touch USB*1
Audio

Audio format support: WMA, MP3, M4A

(Definitely unsupported formats: SONY ATRAC3, Dobly HD)
Video RM, MPEG2, MPEG4, H.265, RMVB, MOV, MJPEG, VC1, FLV (Definitely unsupported formats are: MSVS/CRAM, MP42, GMC, IV32, RLE, CVID, RV20, H.264@3840*2160 )
Picture Support JPEG, BMP, PNG and other image format and support rotation/slide show/picture zoom function

2.3 Pluggable built-in OPS computer configuration (optional)

CPU Intel I3/I5/I7 optional
Mainboard Intel H81/H110/HM86/A77 optional
RAM 4GB/8GB optional
Hard disk 500GB/1TB HHD/128GB SSD optional
WiFi Support 2.4G
OS Windows7/ Windows10
Working temperature 0~50℃

2.4 Touch parameters

Touch embedding method Built-in integrated, not external
Writing mode Fingers, touch pens or other non-transparent objects with a diameter of not less than 5mm
Touch point ≥10 points
Touch accuracy The middle area is less than 1mm and the edge is less than 3mm
Responding speed ＜10ms
Touch resolution 32768*32768
Touch times Unlimited number of theoretical times
Transmission speed 480Mbps
Scan frequency ＞100Hz/S
Interface type Type A USB male +UATR
Driver System automatic identification, no drive
OS Support windows,Android,Mac OS,Linux
Working voltage 4.75V~5.25V
Working current ≤300mA
Operating temperature -10℃~50℃

Optional accessories:

Dimension:
