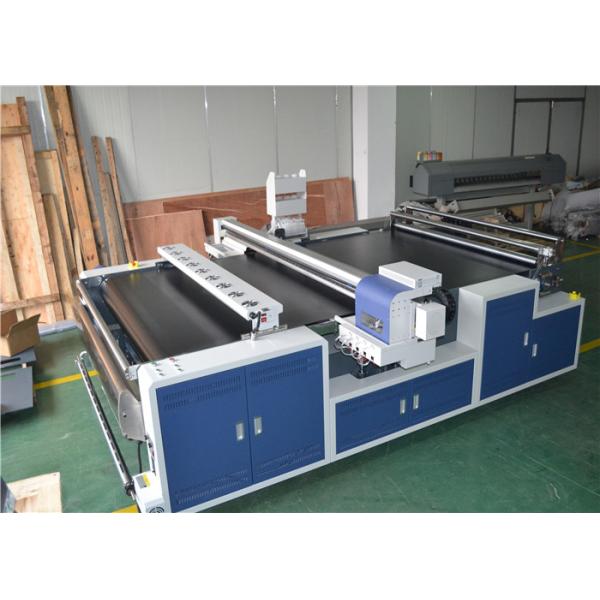

High Resolution Cotton Printing Machine With Belt 1440 dpi Roll To Roll Printing
High Resolution Cotton Printing Machine With Belt 1440 dpi Roll To Roll Printing
High Resolution Cotton Printing Machine With Belt 1440 dpi Roll To Roll Printing
High Resolution Cotton Printing Machine With Belt 1440 dpi Roll To Roll Printing
High Resolution Cotton Printing Machine With Belt 1440 dpi Roll To Roll Printing
High Resolution Cotton Printing Machine With Belt 1440 dpi Roll To Roll Printing
High Resolution Cotton Printing Machine With Belt 1440 dpi Roll To Roll Printing
High Resolution Cotton Printing Machine With Belt 1440 dpi Roll To Roll Printing
High Resolution Cotton Printing Machine With Belt 1440 dpi Roll To Roll Printing
High Resolution Cotton Printing Machine With Belt 1440 dpi Roll To Roll Printing
Specifications
Model Number :
YS1800E-4flat form
Certification :
ISO
MOQ :
1 set
Price :
negotiation
Supply Ability :
10 sets per month
Delivery Time :
20 working days after received deposit
Packaging Details :
Packed in wooden case
Printer head :
EPSON DX5 or 5113
scarf max.width :
1.8m
Print model &Speed :
60m2/hour
Print resolution :
800*1200 dpi
Scarf thickness :
Max.fabric 20mm thickness
Image format :
TIFF,JPG.EPS,PDF etc.
Service :
Engineer avaiable to overseas
Rig software :
Texprint / Neostampa
Suitable :
cutting pieces
Description

High Resolution Digital Textile Printer With Belt 1440 dpi Roll To Roll Printing


Feature of this machine:

  • Large format for beding ,curtain: 3.2m
  • 24 hours running
  • Direct printing,roll to roll
  • Reacive ,disperse ,Pigment ink availble

A. Main specifications:

Product mode EPSON FLAT FORM
Print head 4 DX5 / 5113
Max.Resolution 1440 dpi
Min.droplet size 4.2 pl
Height adjustable 2-30mm adjustable
Ink Type reactive , disperse ,acid ink or pigment ink
Ink color Cyan,Magenta,Yellow,Black,Orange,Red,Blue, Gray
Fabric types woven and kinitted cotton,linen,silk,wool,poly,nylon tec.
Max print width 3200mm
Standard 4pass 80m2/hour
High 6pass 55m2/hour
High 8pass 40m2/hour
Rip software Noestampa / wasatch
System WindowXP,VISTA,WINDOWS7(recommend)
Fabric feeding patented conveyor roll to roll media feeding,automatic take -up system
Image type JPEG/TIFF/BMP,RGB/CMYK
Working temperature 15-35℃(20 to32℃ recommend)
Working Humidity 20-80％(60-80％ recommed)
Additional three units drying system
weight 1250kgs
Compressed air connection 0.3m3/min,6kg
Power supply single AC+ground 220V±10%
Power no more than 7kw
Machine size 3600L*2000W*1600mmH

B. Description:

1) Functions:

  1. Separate electric control cabinet
  2. Bianco fabric feeder & Driver (optional)
  3. Super dryer (optional)
  4. Separate ink supply system
  5. Degassing system reduces print head clogging
  6. Variable drop size (10-30pl) gives perfect clarity

2) Performance: carpet,curtain,sofa fabric,hometextile

High Resolution Cotton Printing Machine With Belt 1440 dpi Roll To Roll PrintingHigh Resolution Cotton Printing Machine With Belt 1440 dpi Roll To Roll Printing

3) Main parts & systerm:


  • Servo motor Japan Panasonic& speed reducer German .
  • Fabric transportation: SwissHabasit industrial belt.
  • Germany printhead moving guider .
  • Machine body ,operating platform
  • Printing control and operating system
  • Ink supply system
  • Belt cleaning systerm
  • Fabric feeding and taking up systerm
  • Belt cleaning system:Auto brush & sponge-roller washing system belt wiping system.
  • Ink supply:peristaltic pump supply,degassing NEG pressure system




C. Packing:
High Resolution Cotton Printing Machine With Belt 1440 dpi Roll To Roll PrintingHigh Resolution Cotton Printing Machine With Belt 1440 dpi Roll To Roll Printing



D. Service:


1) Quality Guarantee:

The whole set of machine guarantee is 1 year. The print head is half year.We offer flexible extended
warranties if needed.

2) Installation training service:

We dispatch technician to your factory for installation ,testing and training.



E. Enviroment request:


Temperature is 15~30 ℃ and Humidity at 50%~70%.
