High Speed Towel Digital Carpet Printing Machine Roll To Roll Printer 150 - 600 Sqm/H
High Speed Towel Digital Carpet Printing Machine Roll To Roll Printer 150 - 600 Sqm/H
High Speed Towel Digital Carpet Printing Machine Roll To Roll Printer 150 - 600 Sqm/H
High Speed Towel Digital Carpet Printing Machine Roll To Roll Printer 150 - 600 Sqm/H
High Speed Towel Digital Carpet Printing Machine Roll To Roll Printer 150 - 600 Sqm/H
High Speed Towel Digital Carpet Printing Machine Roll To Roll Printer 150 - 600 Sqm/H
High Speed Towel Digital Carpet Printing Machine Roll To Roll Printer 150 - 600 Sqm/H
High Speed Towel Digital Carpet Printing Machine Roll To Roll Printer 150 - 600 Sqm/H
High Speed Towel Digital Carpet Printing Machine Roll To Roll Printer 150 - 600 Sqm/H
High Speed Towel Digital Carpet Printing Machine Roll To Roll Printer 150 - 600 Sqm/H
Specifications
Model Number :
YS1800/3200
Certification :
ISO
MOQ :
1 set
Price :
negotiation
Supply Ability :
5 sets per month
Delivery Time :
20 working days after received deposit
Packaging Details :
Packed in wooden case
Fabric available :
Towel ,carpet,rug,footcloth,etc.
printer head :
8 to 16pc starfire 1024(spectra)
Max.fabric thickness :
30mm
Head clean system :
Positive pressure and wiper
Power voltage :
380V,3-phase-4-wire+G(with independent reliable effective earth wire)
Power frequency :
50HZ/60HZ ±1HZ
Print speed :
160-400m2/hour
Ink available :
Pigment,reactive,disperse,acid
Description

Towel Digital Printing Roll To Roll Printer With Starfire 1024 150 - 600 Sqm/H

High speed towel digital printing machine with starfire 1024

in 150 - 600 sqm/h

Technical paremeter:

Product mode

TLDP-S1800

Print head

Max.12pcs SG print head(optional)

Maximum printing resolution

800DPI*1200DPI

Maximum printing speed

160-400m2/h

Ink supply system

Peristaltic pump supply,degassing NEG pressure system

Ink Type

reactive , disperse or acid ink

Ink color

Cyan,Magenta,Yellow,Black,Orange,Red,Blue, Gray

Dryer unit

Aluminum foil heater,infrared heater and hot fan heater

Print head height

Height adjustable(0-30mm) to adapt medium of different thickness

Print head clean system

Positive pressure and wiper

Power voltage

380V,3-phase-4-wire+G(with independent reliable effective earth wire)

Power frequency

50HZ/60HZ ±1HZ

Power consumption

Printer10kw,dryer20kw

size

L * W * H

Printer

4810*2270*2100mm

Dry unit

2450*1960*1650mm

Main ink supply unit

1280*730*1250mm

Load in Container

1*40feet

Applications:

towel roll / rug piece / footcloth / carpet

High Speed Towel Digital Carpet Printing Machine Roll To Roll Printer 150 - 600 Sqm/HHigh Speed Towel Digital Carpet Printing Machine Roll To Roll Printer 150 - 600 Sqm/HHigh Speed Towel Digital Carpet Printing Machine Roll To Roll Printer 150 - 600 Sqm/H

1) Ink Available:

Acid inks – to print on polyamide ,nylon, wool

Disperse inks – to print directly poly

2) Print speed:

150--350m2/h

3) Tongling made:

  • Machine body ,operating platform
  • Printing control and operating system
  • Ink supply system

4) Rip Software:TEXPRINT (original)

(1)Accurately control the ink volume when printer work, so that the printed image exactly as same as the designs prepared

(2) Freely adjust the brightness, contrast, etc by RIP according to your request

5) Panasonic servo motor & German speed reducer.

6) Habasit industrial belt.

7) Germany printhead moving guider :

8) Feature:

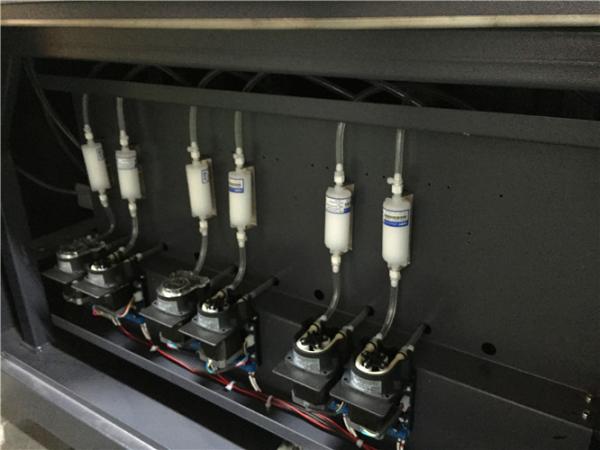

  1. Ink supply:peristaltic pump supply,degassing NEG pressure system.
  2. Belt cleaning system:Auto brush & sponge-roller washing system belt wiping system.
  3. Transducer & photoelectric sensor system, while fabric not flat or upwarp , it will alarm, and printhead will stop working.One set of this system installed beside belt, another one beside printhead.

9) Printer Guarrantee:

One year guarantee(accept head),including install,testing and training in your factory.

Why Us?

The factors that have made us gain preference over the others are as follows:

· Qualitative range

· Competitive pricing

· Wide client network

· Transparent dealings

· Customization

· Stringent quality nor

· Assured supply at minimum cost

· Experienced professionals

· Low maintenance cost
