900W1000W1200W 40KHZ 28KHZ ULTRASONIC CLEANING MACHINE DRIVER CIRCUIT ULTRASONIC GENERATOR

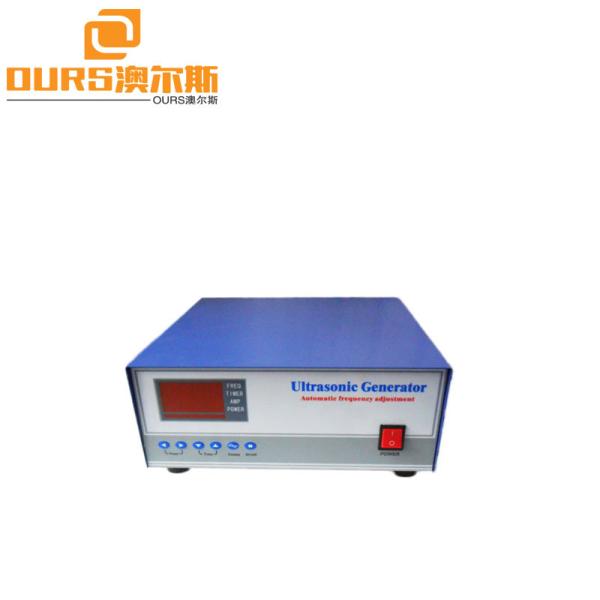

Ultrasonic cleaning generator
My company in 2012 launched a new generation of ultrasonic generator
1) a new generation of computer chip, dual display frequency current, more powerful
2) using a pulse width control, more accurate and more stable output power adjustment.
3) The automatic adjustment and automatic frequency tracking, so that the tone machine more stable easier
4) enhanced circuit protection functions: over-temperature protection and over current protection, so that more reliable
5) the new circuit structure optimization design, the whole rational layout and maintenance more convenient and less costly.

Standard configuration features:
1. Timer
2. Frequency display and adjusting
3. Current Display
3. Power adjusting
4. remote control connector /PLC connecting
5 .Output Power plug
6. High-frequency connector or CE connector (US ,EU or standard type)


Digital ultrasonic generator selectable frequency 17khz,20khz,25KHZ, 28KHZ,33khz, 40KHZ, 68KHZ, 80KHZ, 130KHZ,200khz or higher frequency, single-frequency ultrasonic generator.
Digital ultrasonic generator Power: 600W ~ 2400W, 2500W ~ 10000W (to be ordered) or a higher power.
It adopts international advanced figure pulse for driving; compared with traditional auto-excitation type control technology, it’s advantages like small in size, light in weight, powerful in power, stable and reliable in operation, continuous and adjustable in power and flexible in control have gained approval from many experts. Frequency scanning more ensured the machine can be at its best working state from the beginning to the end, which can express the potential of ultrasonic transducer to its maximum.
Frequency 28Khz - 130Khz adjustable
Power 1200W 0-100% adjustable
With timing function and PLC remote control
With over-current protection and output short-circuit protection

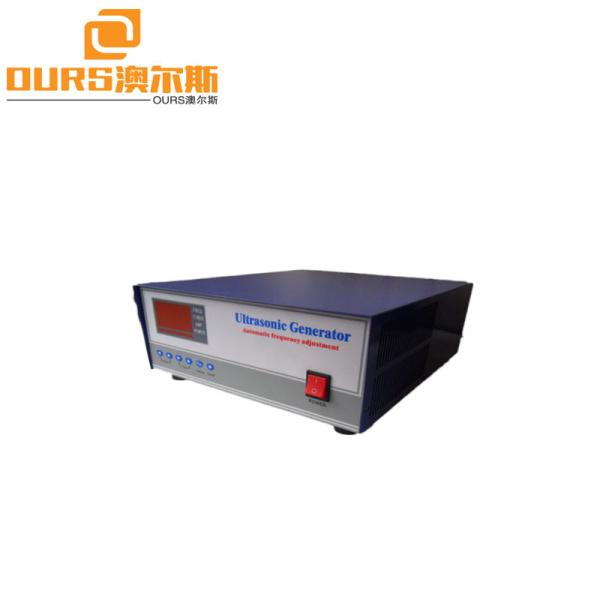

900W1000W1200W 40KHZ 28KHZ ULTRASONIC CLEANING MACHINE DRIVER CIRCUIT ULTRASONIC GENERATOR​

Multi-frequency Ultrasonic cleaning generator
